About product:

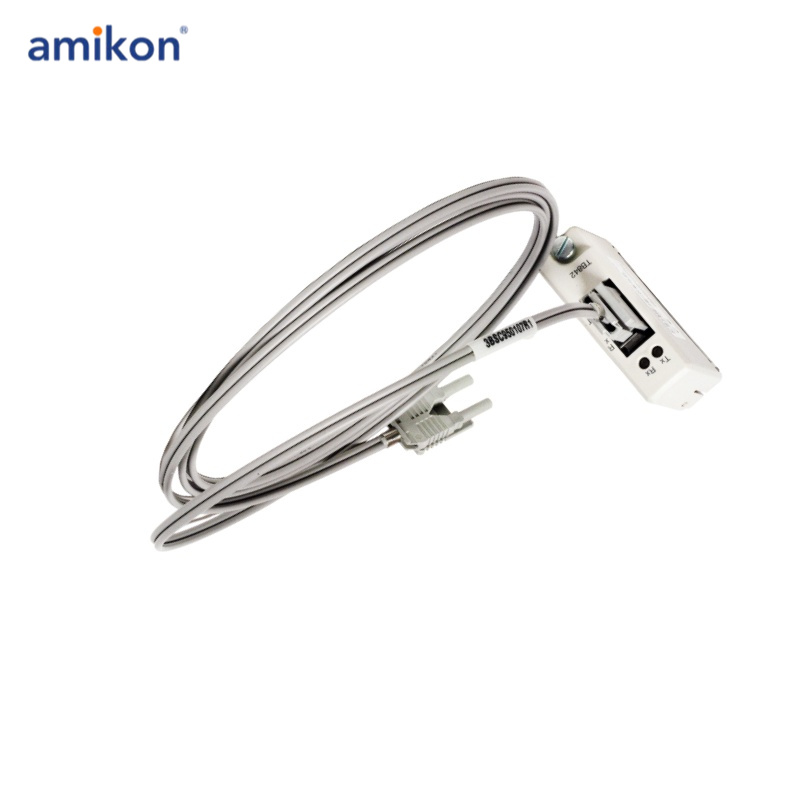

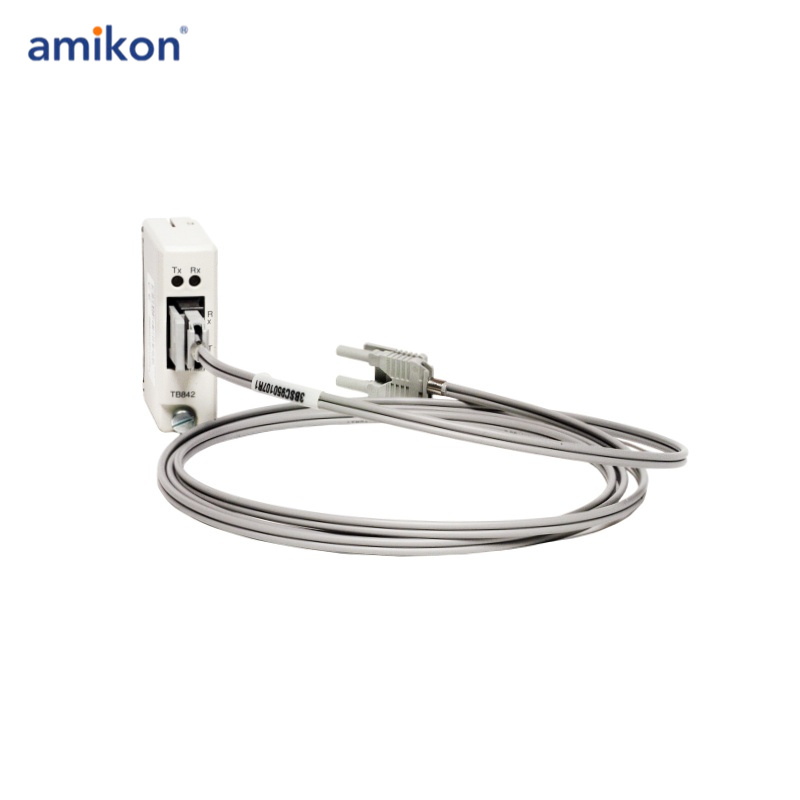

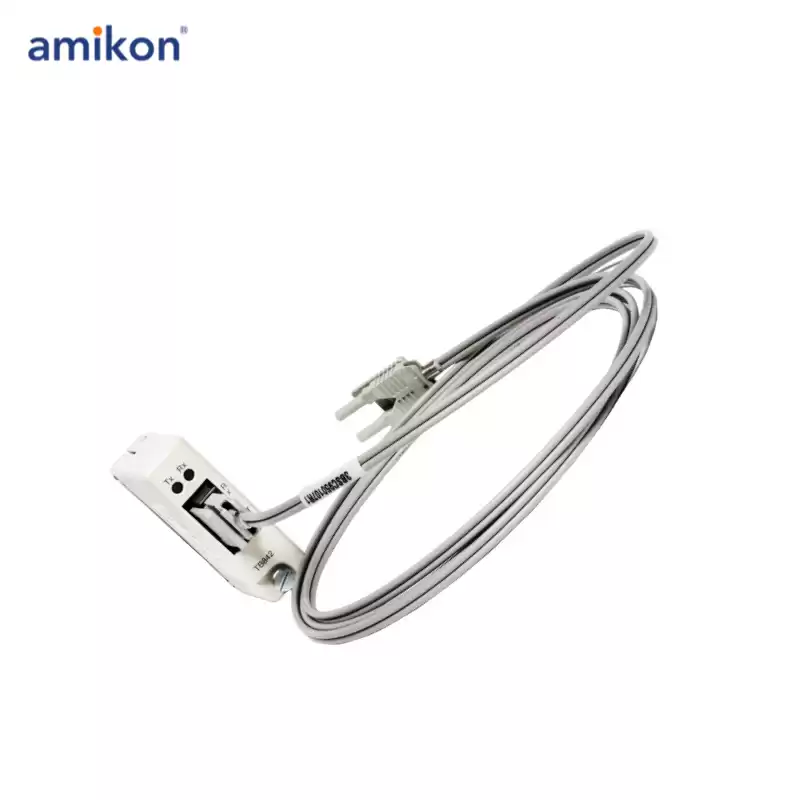

The module is equipped with a Transmitter/Receiver for up to 10 Mbit/s. Both plastic and HCS (Hard Clad Silica) optic fiber with connectors (Agilent’s, former Hewlett-Packard, Versatile Link) can be used with the TB842. A Modulebus must have the same type of transmitter/receiver on each node.
General info:
Article number: 3BSE022464R1
Communication protocol: Modulebus
Master or slave: N/A
Line redundancy: Yes
Module redundancy: Yes
Hot Swap: Yes
Used together with HI Controller: No
Mounting: Vertical or Horizontal
Detailed data:
Connector:Agilent’s, former Hewlett-Packard, Versatile Link
24 V consumption typ.:20 mA
ModuleBus current distribution:Fiber optic interface, one transmit and one receive connection for max. 10 Mbit/s. Wavelength 650 nm
Power dissipation:0.5 W
Dimensions:
Width:17.6 mm (0.69”)
Height:56.7 mm (2.23”)
Depth:42.3 mm (1.67”)
Weight:90 g (0.20 lbs.)
