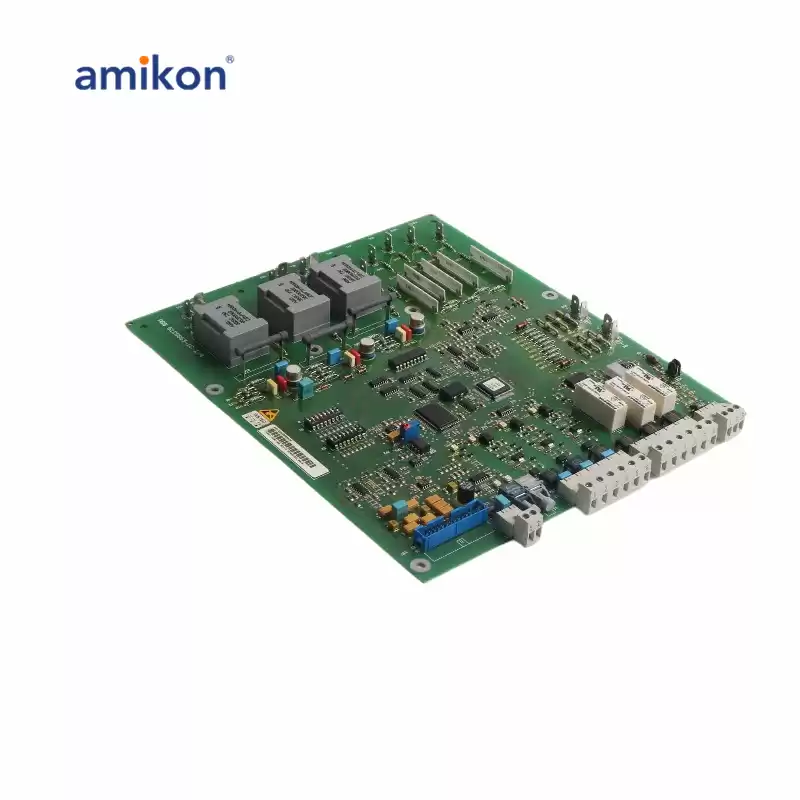

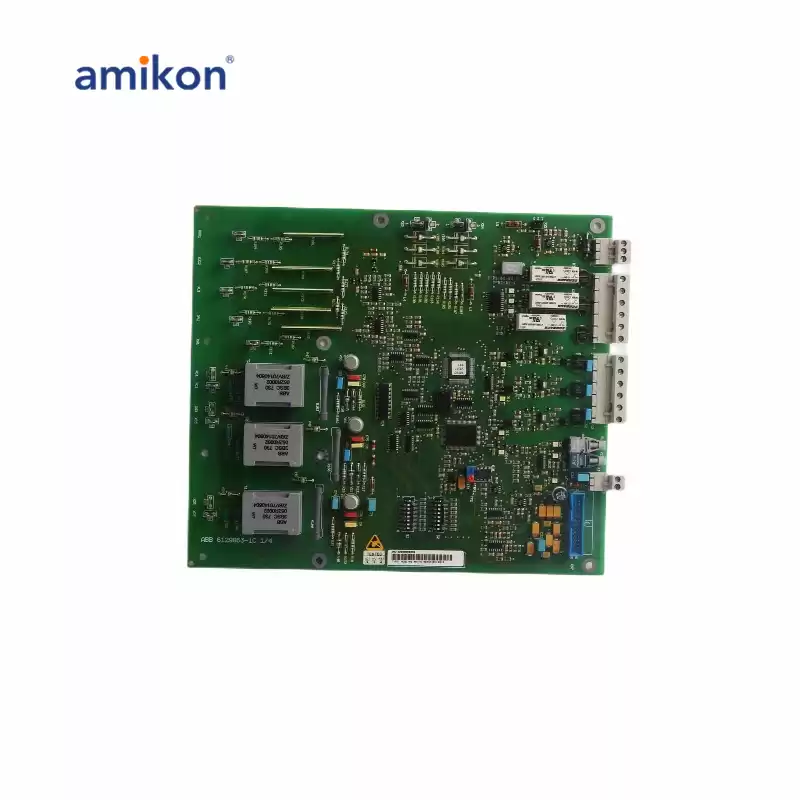

The NDSC-02 3ADT220090R0039 is Control Board.The control board contains three digital inputs which are self-adaptive for voltage range 24 VDC ... 230 VAC. The channels are galvanically isolated from each other and the rest of the board. The filtering time constant for digital inputs is 10 ms.
|
|
|
NDSC-02 3ADT220090R0039 Data sheet
|
The Diode Supply Units can be configured in 6-, 12- or 24-pulse systems. If any of the parallel units fails, all units will trip.
|
|
The emergency stop information to the drive sections goes from 24 VDC power supply through an emergency stop relay.
|
|
The +24 V is required by the electronic boards, for example option modules and I/O.
|
|
