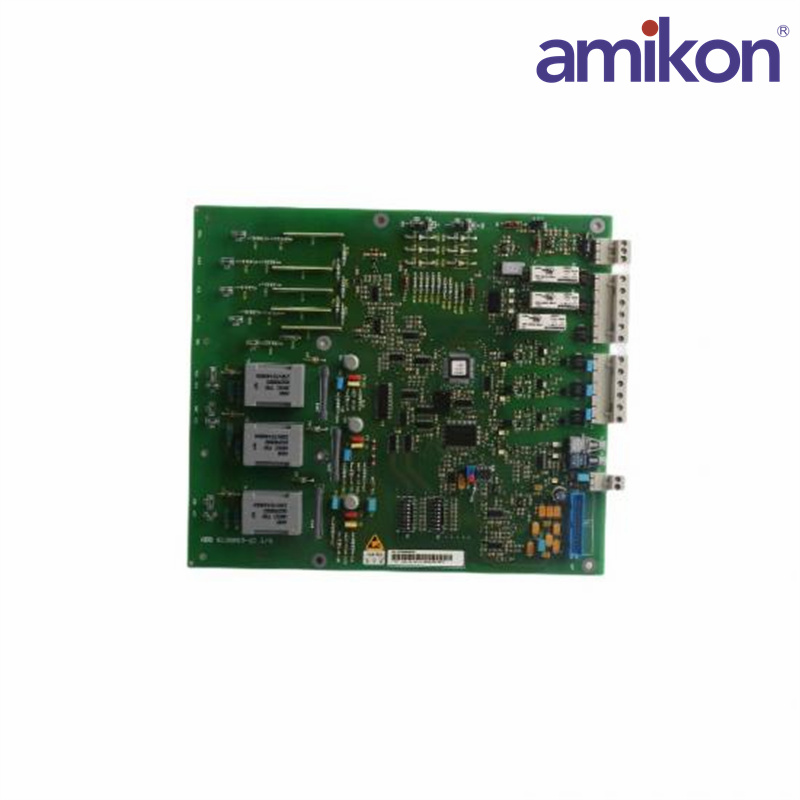

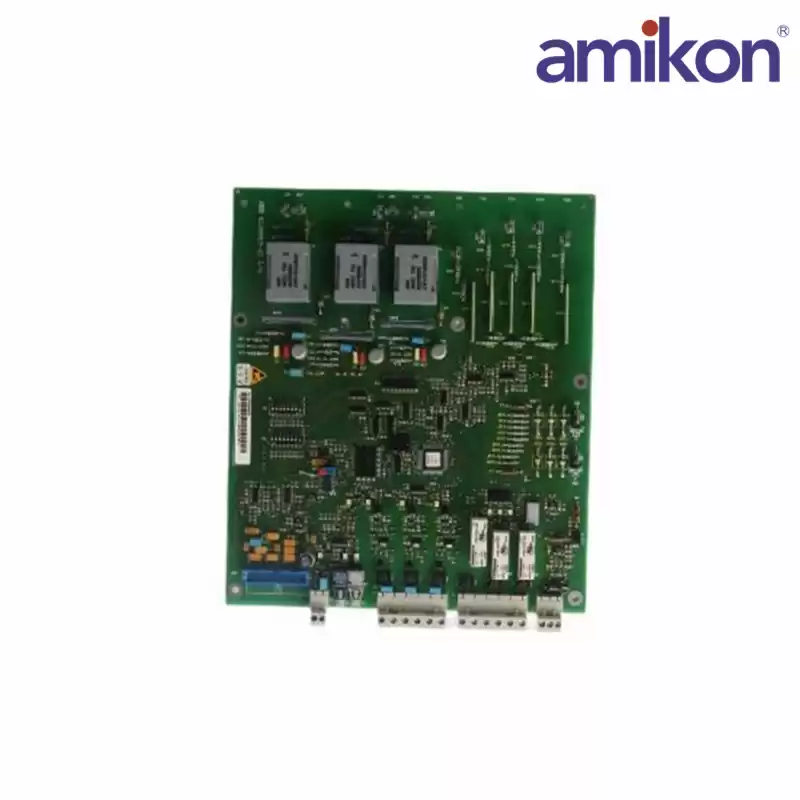

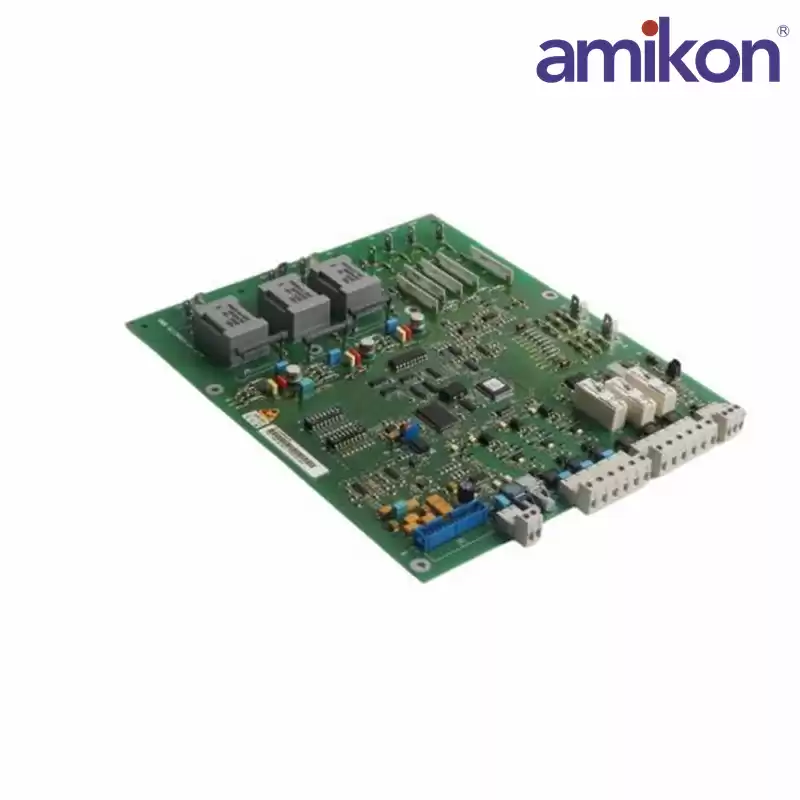

ABB NDSC-02 3ADT220090R0039 Control Board
|
|
Dimensions ：
|
28x23.3x2.5cm
|
Weight：
|
0.46kg
|
|
Full Description: The Diode Supply Units can be configured in 6-, 12- or 24-pulse systems. If any of the parallel units fails, all units will trip. Typically, the fault signals are wired to each other by hardware or by software through an overriding control system.
|
|
The NDSC-02 3ADT220090R0039 is Control Board.The control board contains three digital inputs which are self-adaptive for voltage range 24 VDC ... 230 VAC. The channels are galvanically isolated from each other and the rest of the board. The filtering time constant for digital inputs is 10 ms.
The status of each channel is indicated by LED's. The digital outputs are relays.Connector X3 is an output of 24 VDC voltage (500 mA), which can be used for digital inputs or power supply for AMC or APC2 boards. This voltage is fuse protected and the status of the fuse is indicated by a LED.
|
