Product Description:
The laying head consists of a spinning structure containing
a spiral shaped pipe for discharging the rod onto the cooling
conveyor. The cooling conveyor consists of many rolls evenly
spaced out with a gap between adjacent rolls and if the head
of the first coil falling on the conveyor enters a inter-roll gap
the risk of head cobble is high. Positioning of the laying head
is adjusted so that head end of the rod meets with the correct
position of the exit point of laying head conveying pipe, thereby
ensuring the correct position of the head of the first coil on the
conveying rolls, thereby reducing the risk of cobbles.
To implement this positioning, an AC80 controller is used
to directly control the drive. An encoder is installed at the
non-drive end of the laying head motor with its pulse signals
connected to the interface board for the drive for speed

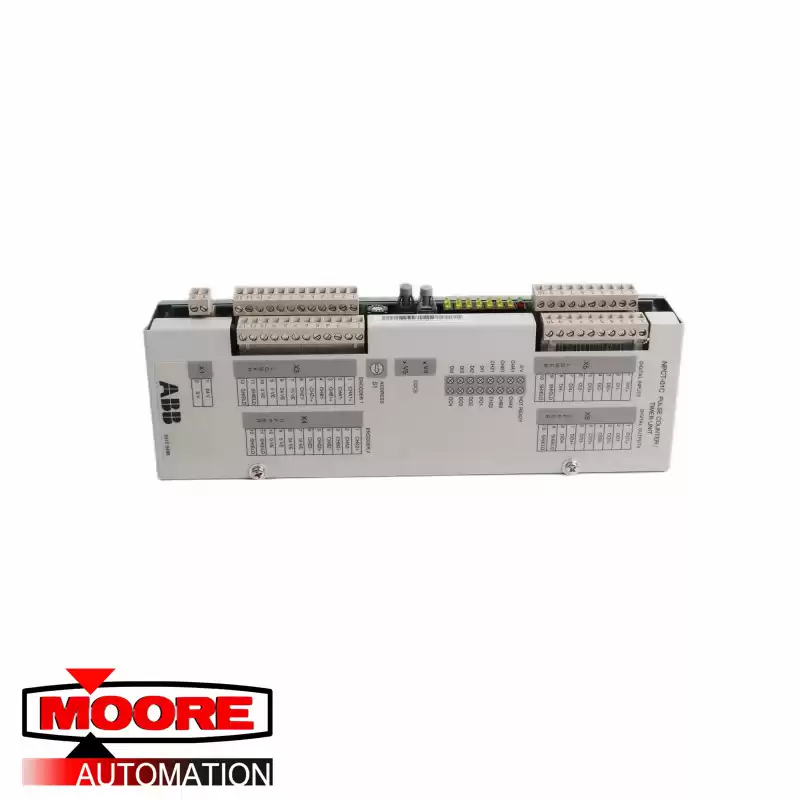

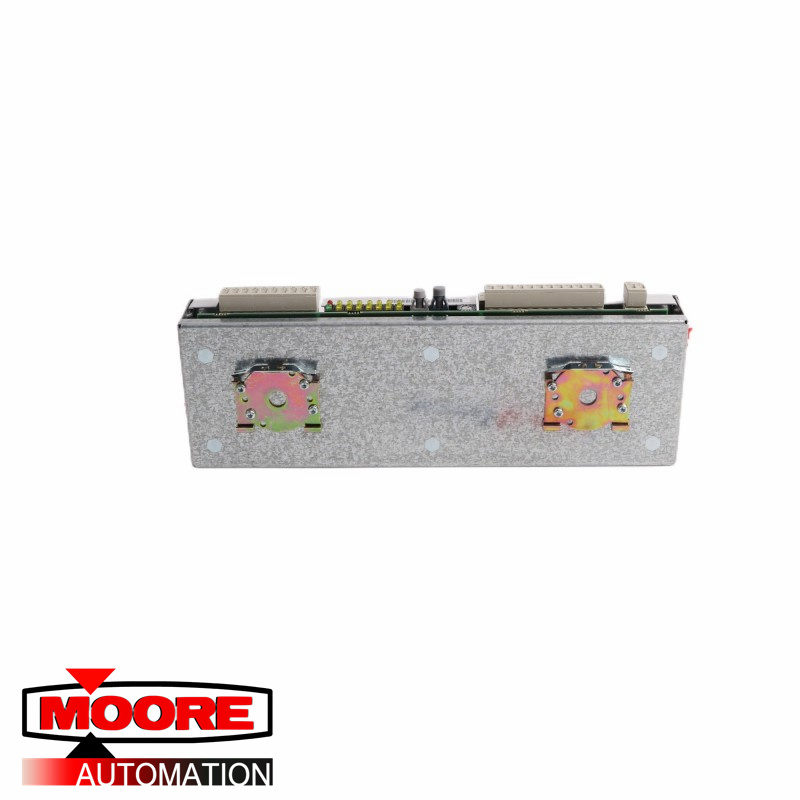

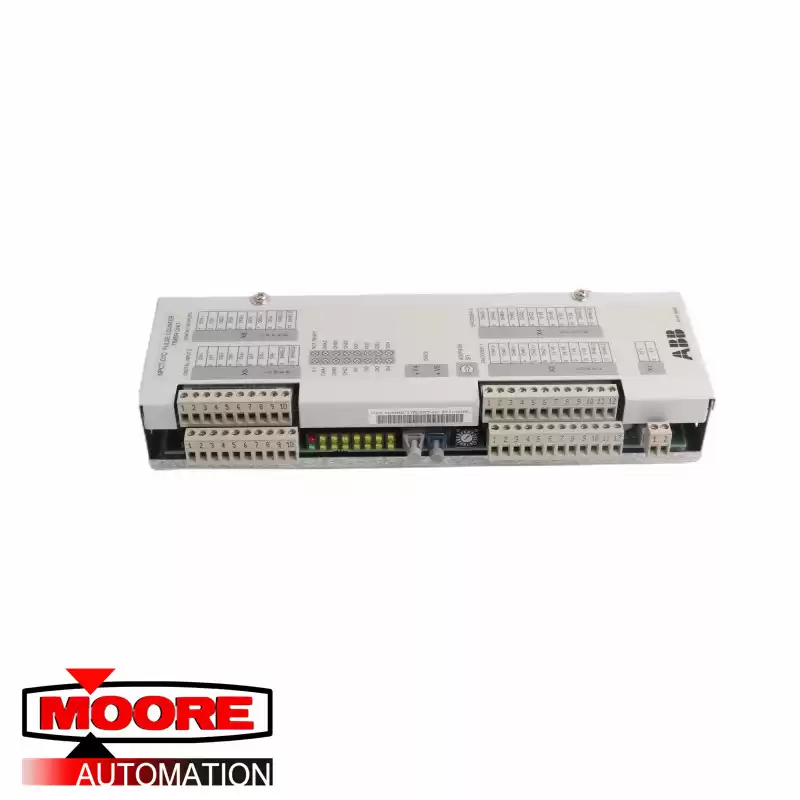

feedback, and also connected to the NPCT-01C interface board
of AC80 for position detection along with a proximity switch
used for the synchronization of the counter.
