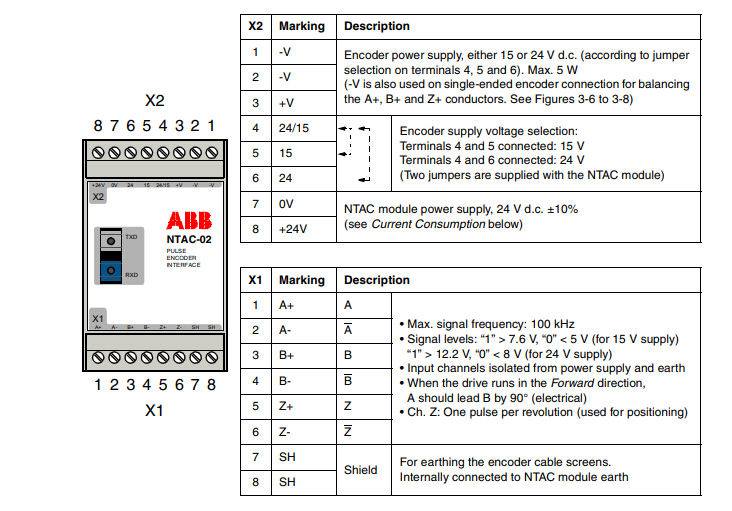

The NTAC-02 has to be supplied with 24 V d.c. power, either from the
NIOC board (max. 250 mA), or an external power supply. As the
current consumption of the module depends on many factors (e.g.
max. speed of the motor, encoder pulse number per revolution,
encoder cable length and leakage capacitance), it should be checked
on each occasion if an additional power supply is needed.
The NTAC-02 is compatible with the following application programs:
• ACS 600 Standard Application Program version 5.0 or later
• ACS 600 System Application Program version 4.2 or later
• ACS 600 Crane Drive Application Program version 5.0 or later
• ACS 600 Application Program Template (all versions).
|
Module
|
|
Application Program
|
|
Board
|
|
Channel
|
|
Terminals
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Standard, V5.0 or later
|
|
NDCO (Optional)
|
|
CH2
|
|
V17, V18
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Standard, V5.0 or later
|
|
NAMC
|
|
CH1
|
|
V15, V16
|
|
NTAC-02
|
|
with Master/Follower Macro
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
System
|
|
NAMC
|
|
CH1
|
|
V15, V16
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Crane, V5.0 or later
|
|
NAMC
|
|
CH1
|
|
V15, V16
|
ABB NTAC-02
ABB NTAC02
Email:sales3@amikon.cn
Air Temperature: 0 to +50°C.
Relative Humidity: 5 to 95%, no condensation allowed. Maximum
allowed relative humidity is 60% in the presence of corrosive gases.
Contamination Levels:
Chemical gases: IEC 721-3-3, Class 3C2
Solid particles: IEC 721-3-3, Class 3S2
Installation Site Altitude: 0 to 2000 m above sea level. If the
installation site is higher than 2000 m above sea level, please contact
your local ABB distributor or office for further information.
Vibration: Max. 0.3 mm (2 to 9 Hz), max. 1 m/s2 (9 to 200 Hz)
sinusoidal (IEC 68-2-6)
More details --- please contact us !!!
|
