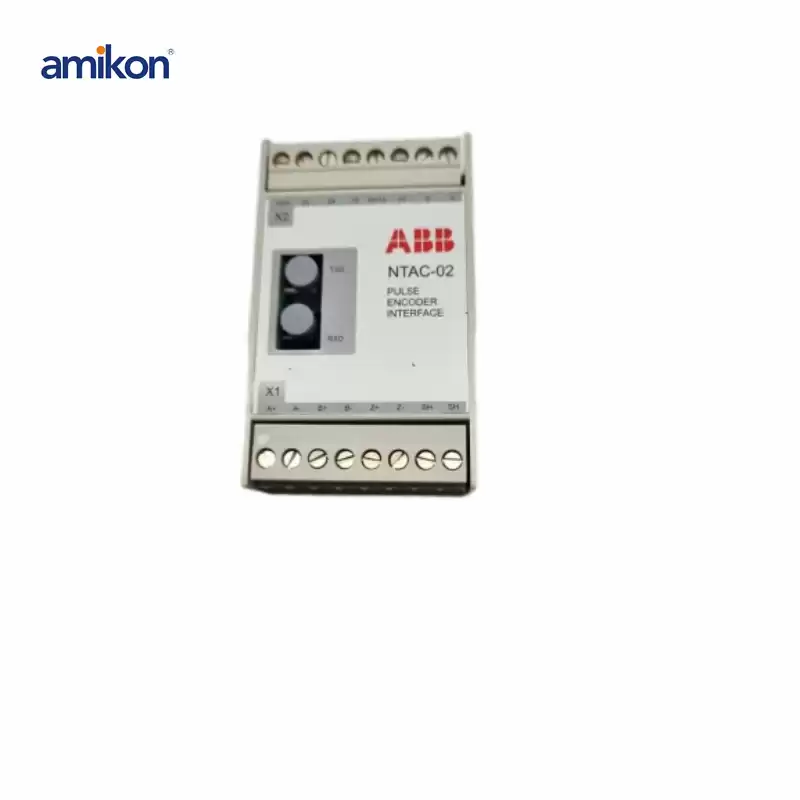

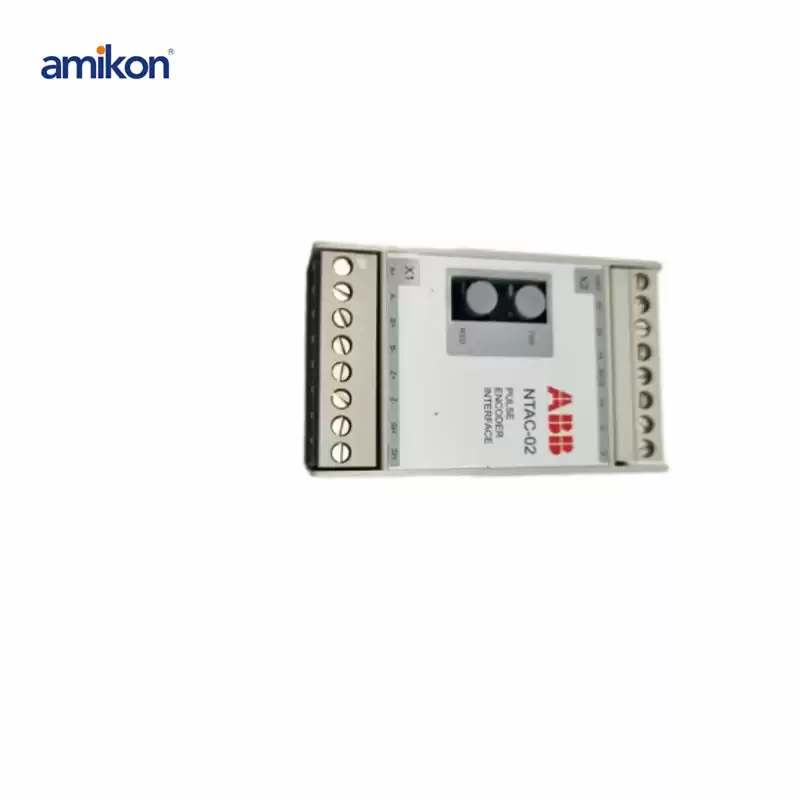

ABB NTAC-02 Pulse Encoder Interface
|
Part Number
|
NTAC-02
|
Weight
|
0.5
|
|
Manufacturer
|
ABB
|
Dimension
|
7.6 cm x 10.2 cm x 5.1 cm
|
|
Payment
|
T/T
|
Type
|
Controller
|
|
Order(MOQ)
|
1
|
Lead Time
|
IN STOCK
|
If you have any questions about NTAC-02, please contact me!
+86 189 6519 6563
sales17@amikon.cn
+86-189 6519 6563
The ABB NTAC-02 Pulse Encoder Interface is a device designed to interface pulse encoders with control systems, such as programmable logic controllers (PLCs) or other automation equipment.
1. General Description:
- **Module Type**: Pulse Encoder Interface.
- **Purpose**: Converts pulse signals from encoders into data that can be used by control systems for applications such as position feedback, speed measurement, or motion control.
2. Specifications:
- **Input Channels**: Typically supports multiple encoder inputs (e.g., up to 2 channels, but this can vary based on the specific model).
- **Input Signal Types**: Compatible with various types of pulse encoders, such as incremental or absolute encoders.
- **Signal Processing**: Processes high-frequency pulse signals and converts them into readable data for the control system.
- **Resolution**: The resolution is determined by the encoder used and the configuration of the interface module.
3. Electrical Characteristics:
- **Input Voltage**: Can typically handle a range of input voltages, often from 5V to 24V DC, depending on the encoder.
- **Power Supply**: Requires a specific DC power supply, usually 24V DC, to operate the interface.
- **Signal Conditioning**: Includes signal conditioning features to ensure accurate and reliable signal conversion.
