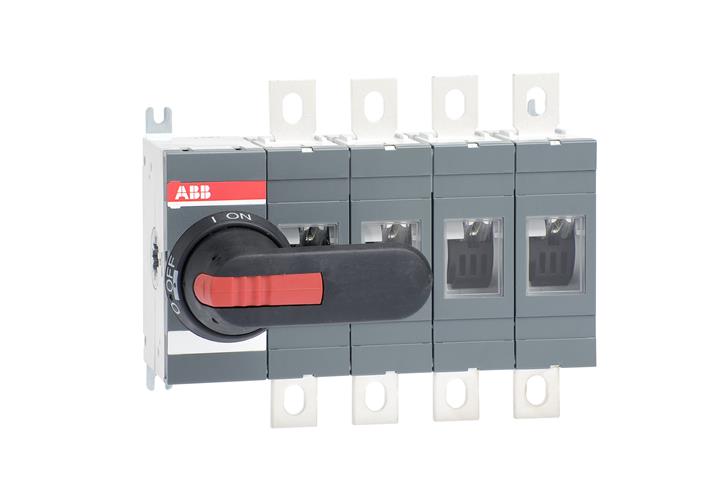

ABB OT315E04P 1SCA022719R1730 Large inventory

1 piece
Customs Tariff Number:
85365080
Popular Downloads
Data Sheet, Technical Information:
1SCC301020C0201
Instructions and Manuals:
1SCC301035M0213
Dimensions
Product Net Width:
235 mm
Product Net Height:
185 mm
Product Net Depth / Length:
107 mm
Product Net Weight:
3.7 kg
Technical
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
(1000 V) 315 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 160 kW
(500 V) 220 kW
(690 V) 315 kW
Conventional Free-air Thermal Current (Ith):
q = 40 °C 315 A
Conventional Thermal Current (Ithe):
Fully Enclosed 315 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
1000 V
Rated Short-Circuit Making Capacity (Icm):
(1000 V AC) 65 kA
Rated Short-time Withstand Current (Icw):
for 1 s 15 kA
Power Loss:
at Rated Operating Conditions per Pole 6.5 W
Pollution Degree:
3
Handle Type:
Pistol type handle and shaft included
Fourth Pole Position:
Right Side
Fourth Pole Type:
Switched - Simultaneous Function
Switches Operating Mechanism:
Mechanism at the End of the Switch
04 (Left Side)
Distance Between Phases:
Standard
Position of Line Terminals:
Top In - Bottom Out
Bottom In - Top Out
Operating Mode:
Front operated
Standards:
IEC 60947-3
Special Functions:
No
Mounting Type:
Base mounting
Number of Poles:
4
Terminal Type:
Lug terminals
Terminal Width:
25 mm
Tightening Torque:
30 ... 44 N·m
Environmental
Environmental Information:
1SCC301149D0202
Certificates and Declarations (Document Number)
BV Certificate:
1SCC301103D0201
Declaration of Conformity - CE:
1SCC301135D2704
DNV GL Certificate:
1SCC301174D0204
Environmental Information:
1SCC301149D0202
GL Certificate:
1SCC301139D0201
Instructions and Manuals:
1SCC301035M0213
LR Certificate:
1SCC301144D0201
RoHS Information:
1SCC301149D0202
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
200 mm
Package Level 1 Depth / Length:
310 mm
Package Level 1 Height:
120 mm
Package Level 1 Gross Weight:
3.7 kg
Package Level 1 EAN:
6417019230771
Classifications
E-nummer:
3171196
Object Classification Code:
Q
ETIM 5:
EC000216 - Switch disconnector
ETIM 6:
EC000216 - Switch disconnector
ETIM 7:
EC000216 - Switch disconnecto
