ABB OT315E23P 1SCA101113R1001 Large inventory

Contact person: Sandy

WhatsApp: +86-18020776786

E-mail: plcinfo@mooreplc.com

Skype: live:onlywnn_1

Pls notice as below when inquiry:      Get Offer Here

1):All quote are basic on EX-WORK

2):Delivery time: 5-7 days

3):Payment Term:T/T

4):ship to you via DHL/TNT/UPS/EMS/Fedex.

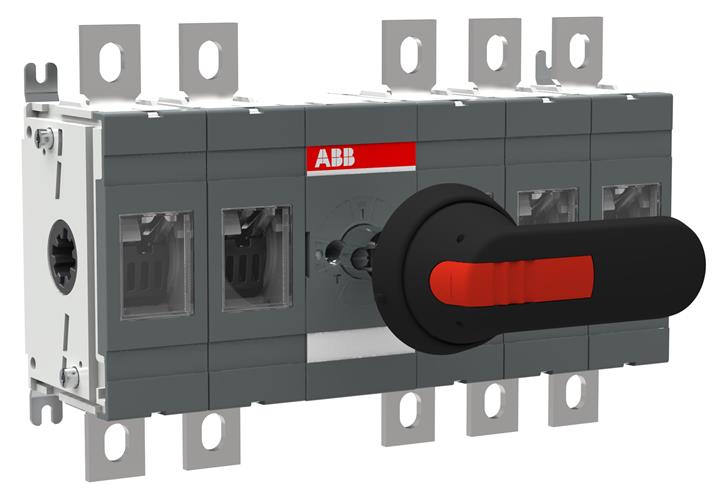

                Product specific picture:

ABB OT315E23P 1SCA101113R1001

1.OT315E23P 1SCA101113R1001 we sell is 100% New Original Factory packing in good condition and have been tested before they are shipped. We will try our best to avoid any quality problems.

2.We will offer the technical support by experienced staff, which have undergone rigorous testing and certification!

3.We offer 12 month warranty after receiving parcels. If there are some workmanship or material defects with the products, please contact us firstly, we will exchange it or offer other solutions for you to make a choice.

4.If you order more than one item, please contact us, we can offer further discounts for you. And if you find other suppliers offer cheaper prices for the same product, we are also willing to provide you with reference to their price,even further discounts.

E-mail: plcinfo@mooreplc.com

OT315E23P 1SCA101113R1001

Manufacturer(s)

ABB

General Information

Extended Product Type:
OT315E23P
Product ID:
1SCA101113R1001
EAN:
6417019358246
Catalog Description:
OT315E23P SWITCH-DISCONNECTOR
Long Description:
5-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
Categories
Products » Low Voltage Products and Systems » Switches » Switch Disconnectors

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Popular Downloads
Data Sheet, Technical Information:
1SCC301020C0201
Instructions and Manuals:
1SCC301035M0213
Dimensions
Product Net Width:
284 mm
Product Net Height:
185 mm
Product Net Depth / Length:
107 mm
Product Net Weight:
4.35 kg
Technical
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
(1000 V) 315 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
Rated Operational Current DC-21B (Ie):
(750 V) 315 A
(550 V) 315 A
(800 V) 315 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 160 kW
(500 V) 220 kW
(690 V) 315 kW
Conventional Free-air Thermal Current (Ith):
q = 40 °C 315 A
Conventional Thermal Current (Ithe):
Fully Enclosed 315 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
1000 V
Rated Short-Circuit Making Capacity (Icm):
(1000 V AC) 65 kA
Rated Short-time Withstand Current (Icw):
for 1 s 15 kA
Power Loss:
at Rated Operating Conditions per Pole 6.5 W
Pollution Degree:
3
Handle Type:
Handle and shaft included
Switches Operating Mechanism:
Mechanism Between the Poles
23 (Between the Poles
Distance Between Phases:
Standard
Position of Line Terminals:
Top In - Bottom Out
Bottom In - Top Out
Operating Mode:
Front operated
Standards:
IEC 60947-3
Special Functions:
No
Mounting Type:
Base mounting
Number of Poles:
5
Terminal Type:
Lug terminals
Tightening Torque:
30 ... 44 N·m
Environmental
Environmental Information:
1SCC301149D0202
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:
1SCC301164D2702
DNV GL Certificate:
1SCC301174D0204
Environmental Information:
1SCC301149D0202
Instructions and Manuals:
1SCC301035M0213
RoHS Information:
1SCC301149D0202
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
240 mm
Package Level 1 Depth / Length:
335 mm
Package Level 1 Height:
120 mm
Package Level 1 Gross Weight:
4.35 kg
Package Level 1 EAN:
6417019358246
Classifications
Object Classification Code:
Q
ETIM 5:
EC000216 - Switch disconnector
ETIM 6:
EC000216 - Switch disconnector
ETIM 7:
EC000216 - Switch disconnector

Collects Signal Values from the Flame Detector

The FAU810 analyzes the signals generated from the Flame Detector.

Calculates Signal Quality

The FAU810 measures the quality of the signal to provide an indication of changes in the burner flame.

Quality values act as a barometer, forecasting when a burner flame-out is likely to occur. This can help you to anticipate changes and problems.

Continuously Detect Faults

The instrument automatically monitors the electronic components of the Flame Detector and FAU810 unit to detect

system problems or faults.

Signals Unsafe Conditions

A no-flame condition occurs when the FAU810 logic determines that an unsafe condition exists.
