Technical Specifications for PDQ22-FBP.0
|
Part number
|
PDQ22-FBP.0
|
|
Origin
|
Sweden
|
|
Manufacturer
|
ABB
|
|
Status
|
Brand New In Stock
|
|
Description
|
Communication BoardPROFIBUS DP-V0/V1 FieldBusPlug Quad
|
|
Payment
|
T/T
|
|
Year of Production
|
2020-2022 available
|
|
Shipment
|
From Xiamen, China to Worldwide
|
-------------------------------------------------------------
Product Description

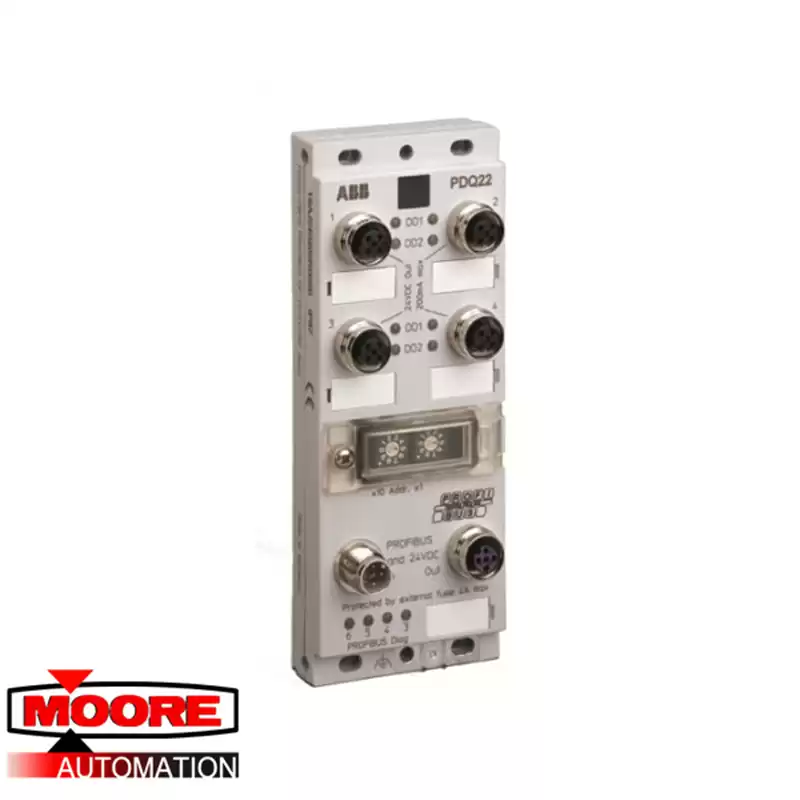

ABB PDQ22-FBP.0 PROFIBUS DP-V0/V1 FieldBusPlug Quad
PDQ22 is a member of the ABB FieldBusPlug family of bus connectors. Presently plugs for PROFIBUS
DP, DeviceNet, AS-I and Modbus RTU are available. PDQ22 allows the connection of up to four devices
to PROFIBUS DP. This makes the integration of PROFIBUS devices that are located physically nearby
more cost-effective. Up to four times more devices can be connected this way to a single PROFIBUS line.
Mixed confi gurations are supported. This makes it possible to connect different devices such as MSD,
MSR, UMC22 at the same PDQ22. Also different versions of a device can be connected at the same time.
Devices are treated as single modules from the PROFIBUS point of view. This allows effi cient engineering
and simple integration into control systems and transparent access to each single device.
Parameters can be set for each device separately. PDQ22 buffers the device parameters sent from the
master during start-up. If a device is replaced it automatically gets the stored parameters. Monitoring and
diagnosis data is collected from the devices and sent to the PROFIBUS master.
PDQ22 allows building robust solutions. Intelligent devices such as UMC22 connected to PDQ22 are
cyclically monitored. If devices fail the other devices are not affected. PDQ22 keeps running with the
remaining devices and sends default values for the failed ones. Status LEDs for the bus and each device
are available. In addition, you can also access status information via the fi eld bus: this makes it possible
to evaluate the details from a PLC or control system.
Time-consuming searches for faults are therefore a
thing of the past and maintenance times are kept to a minimum.
PDQ22 supports PROFIBUS DP-V1. This means tools that use DP-V1 services for both confi guration and
parameterization can be used without limitations. Also maintenance and service tools accessing service
data of the connected devices are well supported (e.g. ABB’s 800xA Asset Management Solution).
