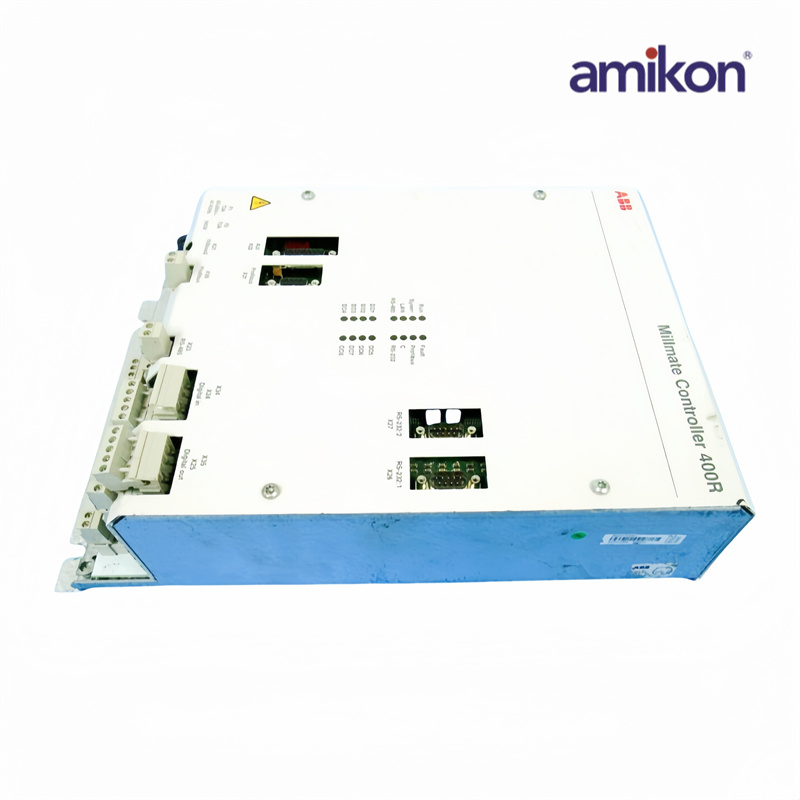

The PFXA 401 control unit, 2 analog inputs,
Load cell QGPR 102/104 Maximum angle compensation 2 million.
Suitable for load cell PFBL 101/141. Suitable for max. 2 x 400 kN
for 2 edge sensors PMSG 123 / 125
Lithium battery, 3BSC790006R1
Fuse 2A 250V 3BSC770029R17

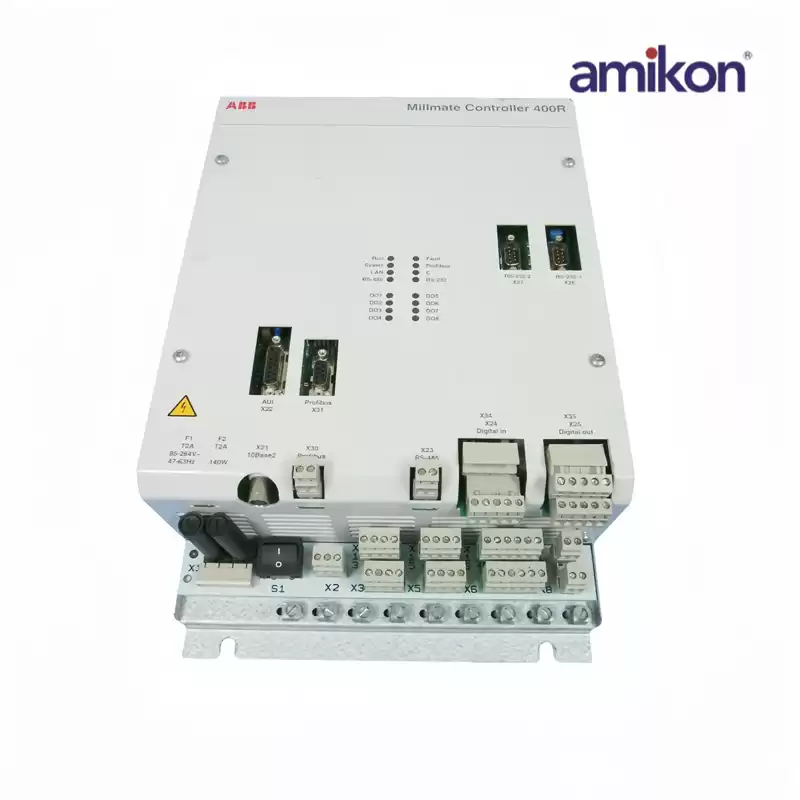

X1, power connection 4-pole disconnectable terminal, 2664197-4
X2, synchronized 3-pole disconnect terminal, 2664177-3
X3,X13,X5,X15, 4-pole disconnect terminal, 2664177-4
X8, X18, X23, X30 2-pole disconnect terminal, 2664177-2
X6, X16, analog output 6-pole disconnect terminal, 2662 177-6
X24, X25, X34, X35, digital signals 5-pole disconnectable terminal block, 2664163-5
|
