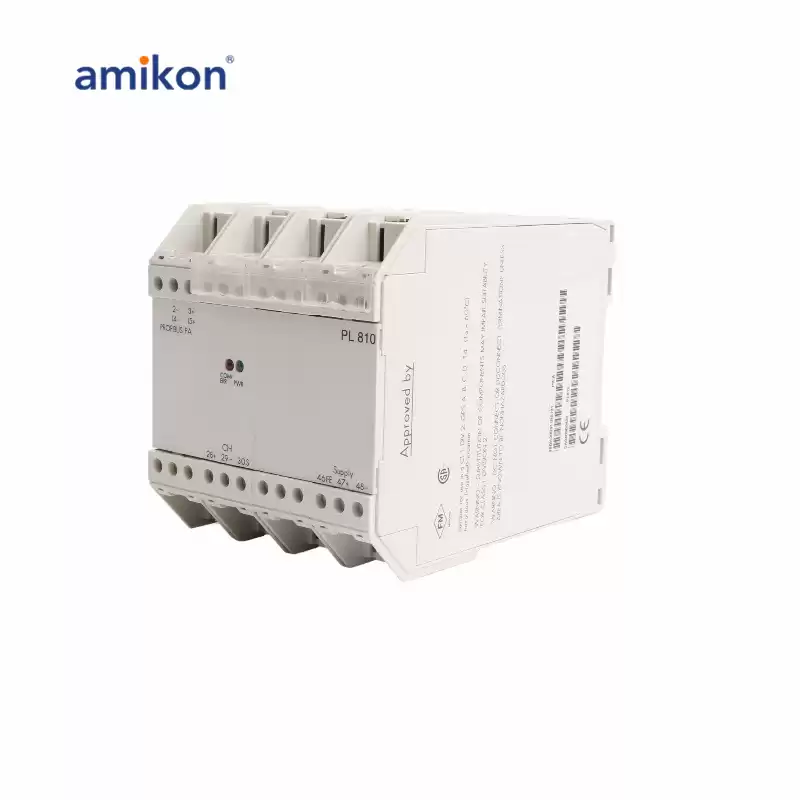

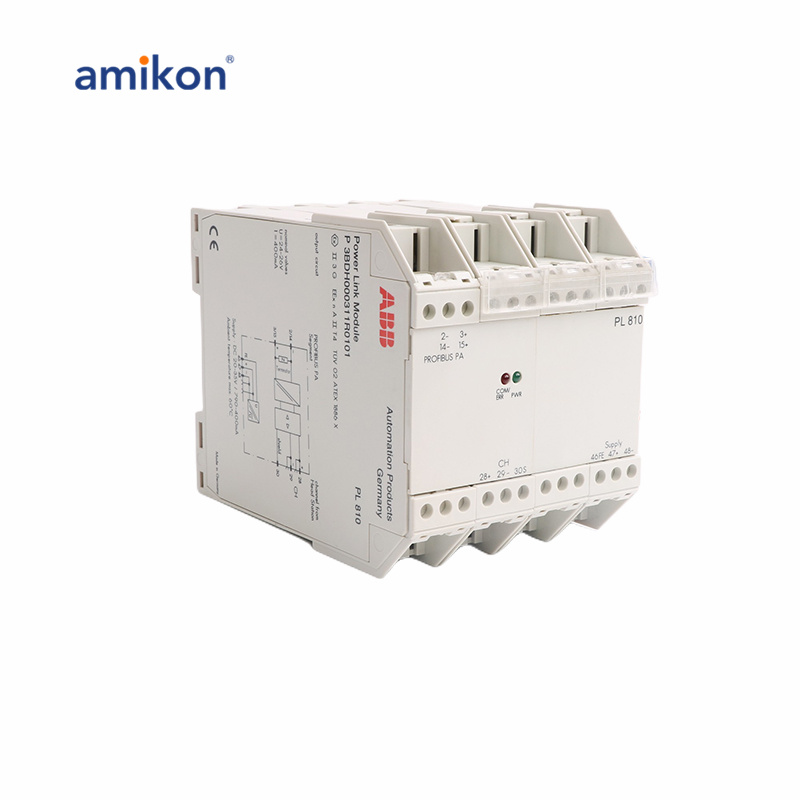

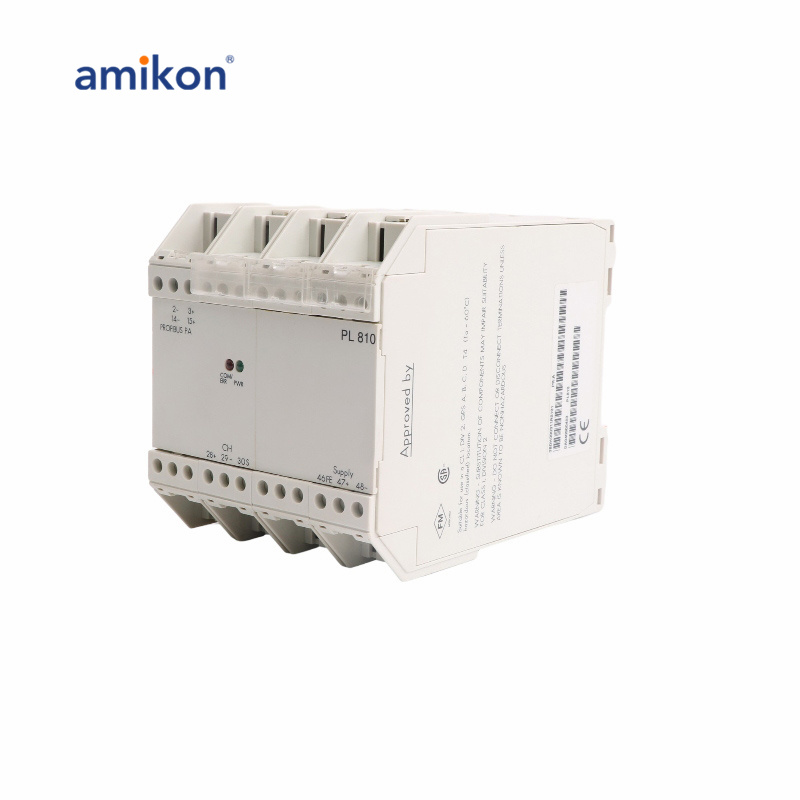

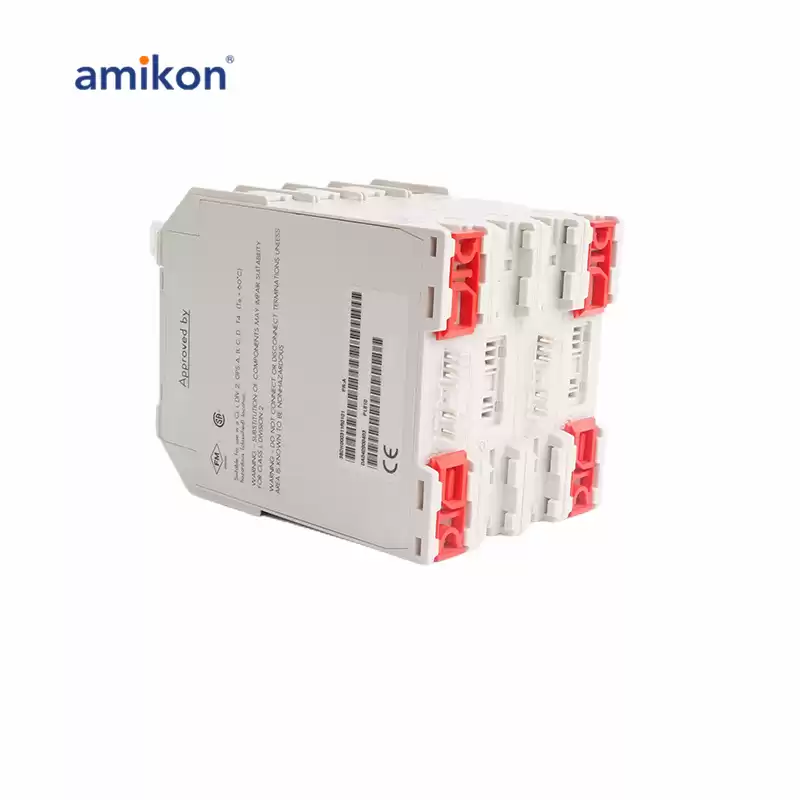

The PL810 is Power Link Module.The Power Link Module and the head station HS 8x0 form a Linking Device LD 800P. The Power Link Module can only be operated with the head station HS 810, HS 820 or HS 840. PL 810 can be mounted within zone.
|
|
|
PL810 3BDH000311R0101 Data sheet
|
The Power Link Module supplies PROFIBUS PA devices powered by the bus.For the data transmission between Power Link Module and head station a wire link has to be made between Power Link Module terminals and head station terminals.
|
|
The communication is seamless. The Power Link Module does not have to be programmed. The PROFIBUS PA segment has a baud rate of 31.25 kbit/s in accordance with IEC 61158-2.
|
|
The maximum combined current consumption of the connected PROFIBUS PA devices must be lower than the nominal current of the Linking Device. The modulation current used by the PROFIBUS PA devices to transmit data does not have to be considered.
|
|
