ABB PL810 | Power Link Module PL810

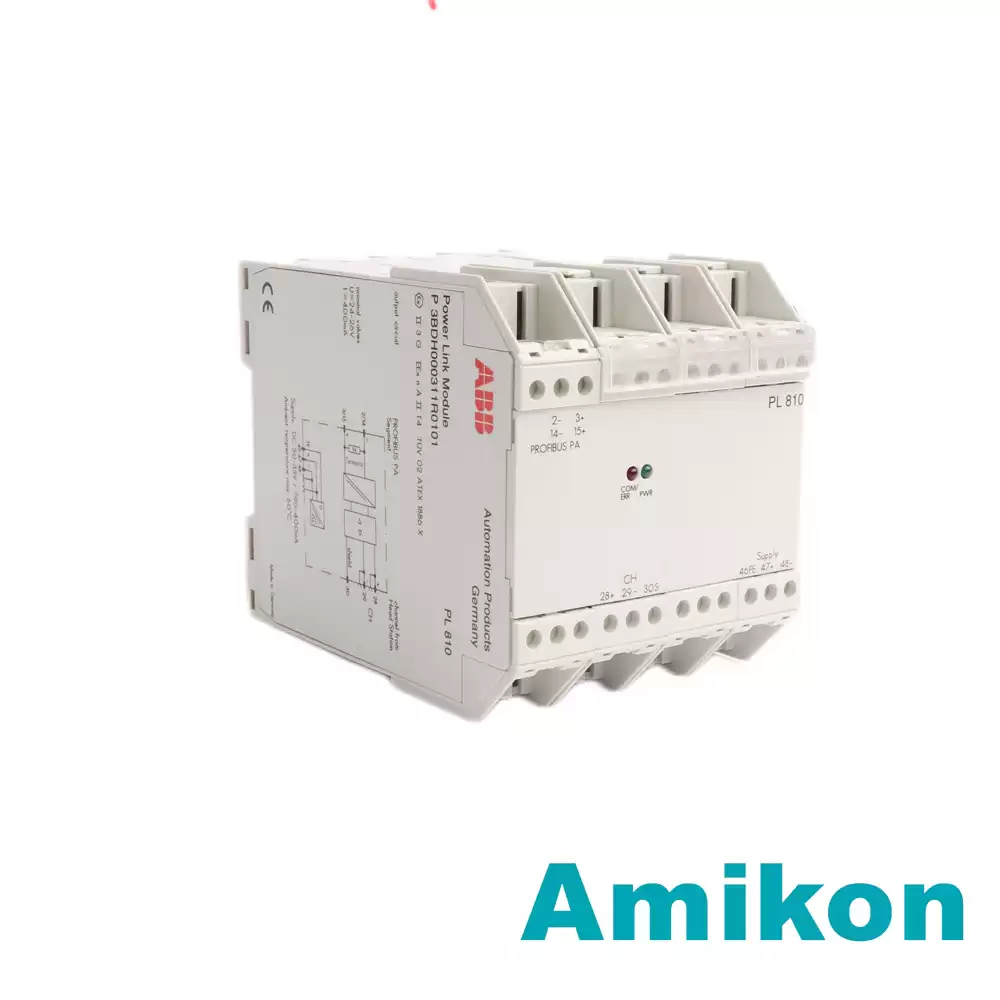

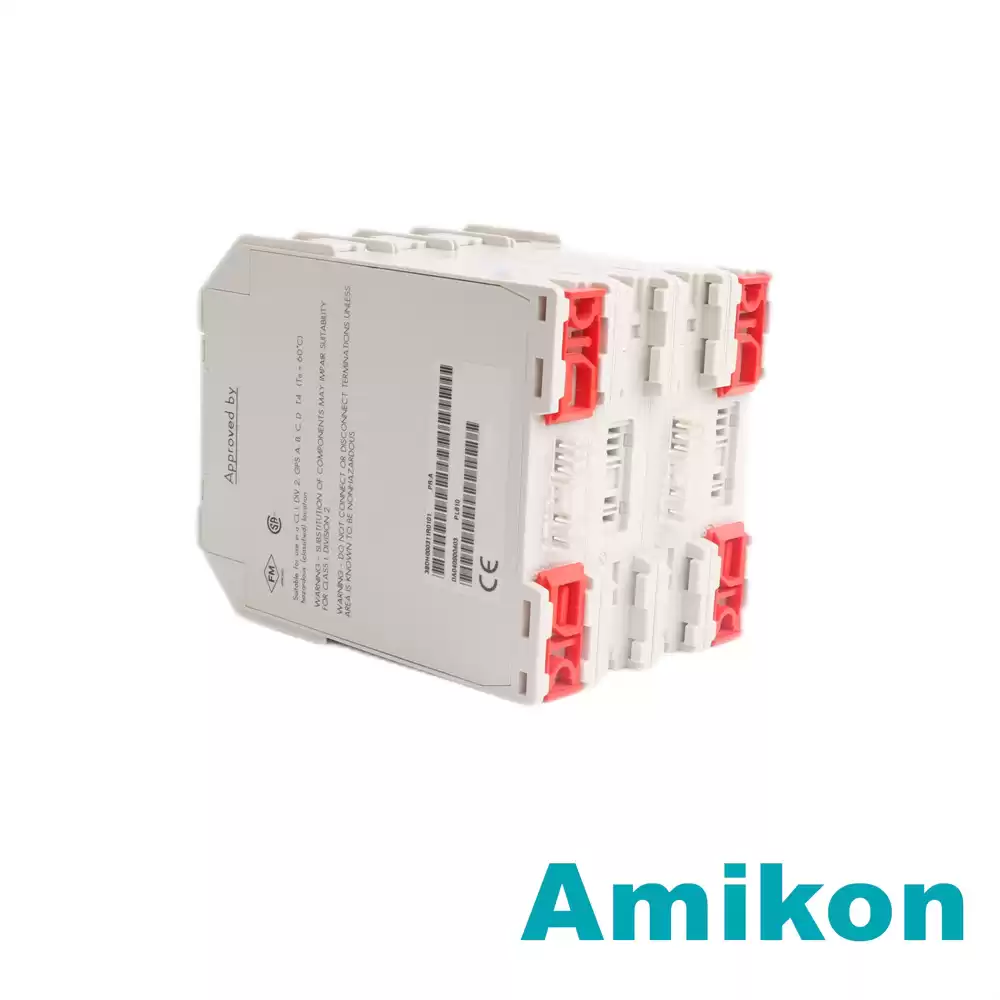

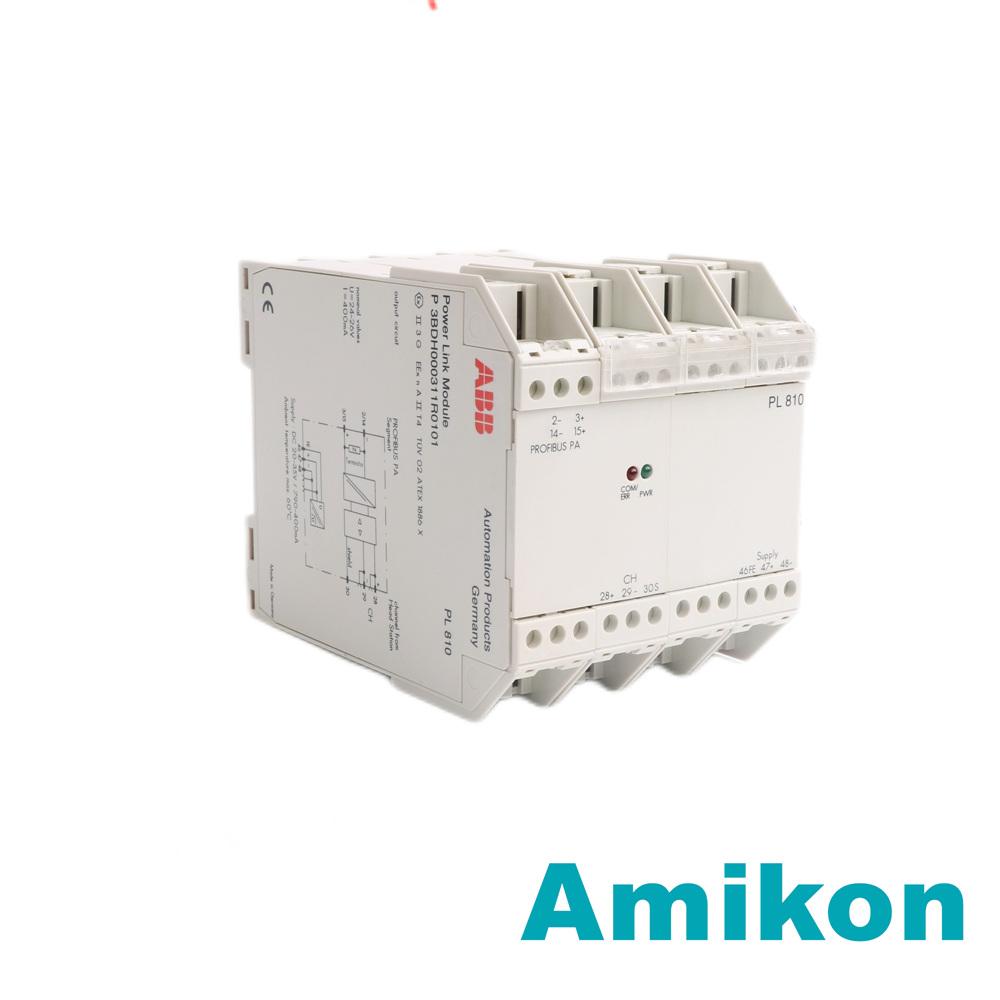

Power Link Module PL 810 for PROFIBUS DP/PA Linking Device LD 800P

Description:

- Power Link Module for a nonintrisincally safe PROFIBUS PA

segement

- PROFIBUS PA output in

accordance with EN 50170/2 and

IEC 61158-2; 31.25 kbit/s

- Up to 32 PROFIBUS PA devices

can be connected to a PA segment

- 24 V DC nominal supply voltage

- No configuration necessary

- Removable terminals

- EMC in accordance with NAMUR

NE 21

Function：

The Power Link Module and the head station HS 8x0 form

a Linking Device LD 800P. The Power Link Module can

only be operated with the head station HS 810, HS 820 or

HS 840. PL 810 can be mounted within zone 2.

The Power Link Module supplies PROFIBUS PA devices

powered by the bus.For the data transmission between

Power Link Module and head station a wire link has to be

made between Power Link Module terminals and head

station terminals

The communication is seamless. The Power Link Module

does not have to be programmed. The PROFIBUS PA

segment has a baud rate of 31.25 kbit/s in accordance with

IEC 61158-2.
