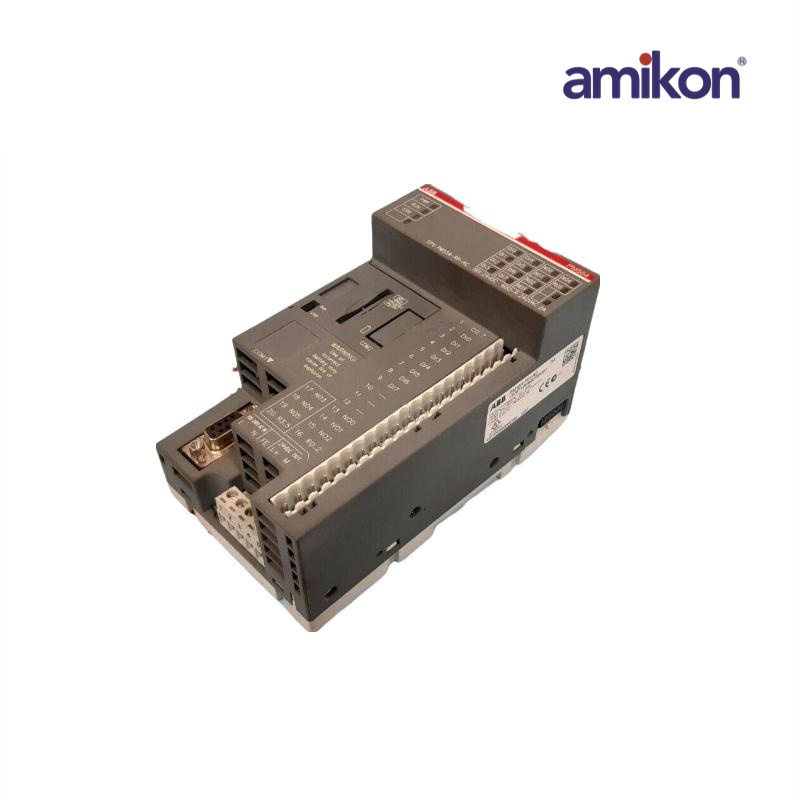

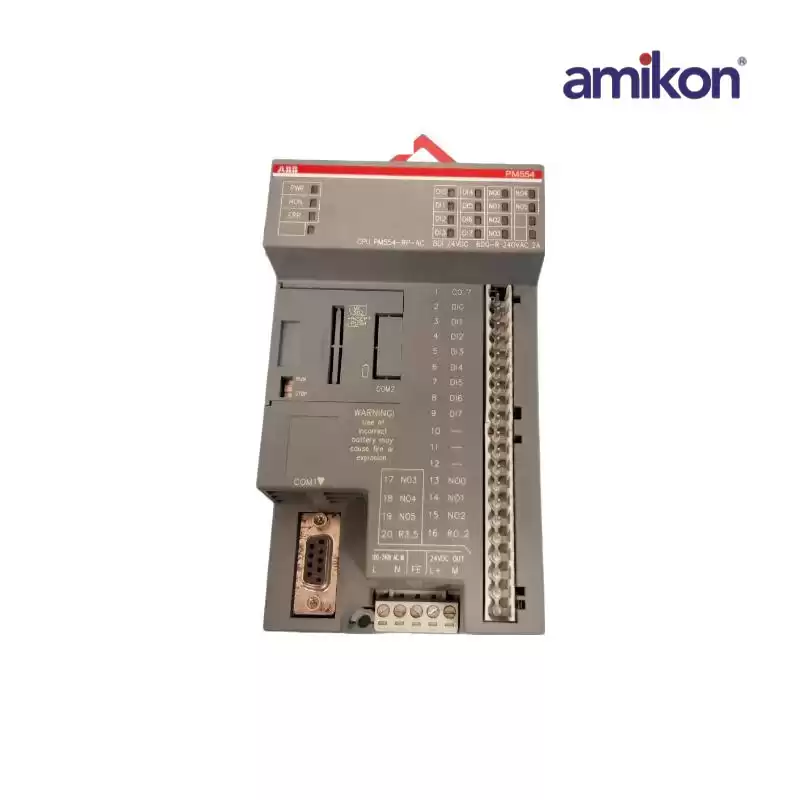

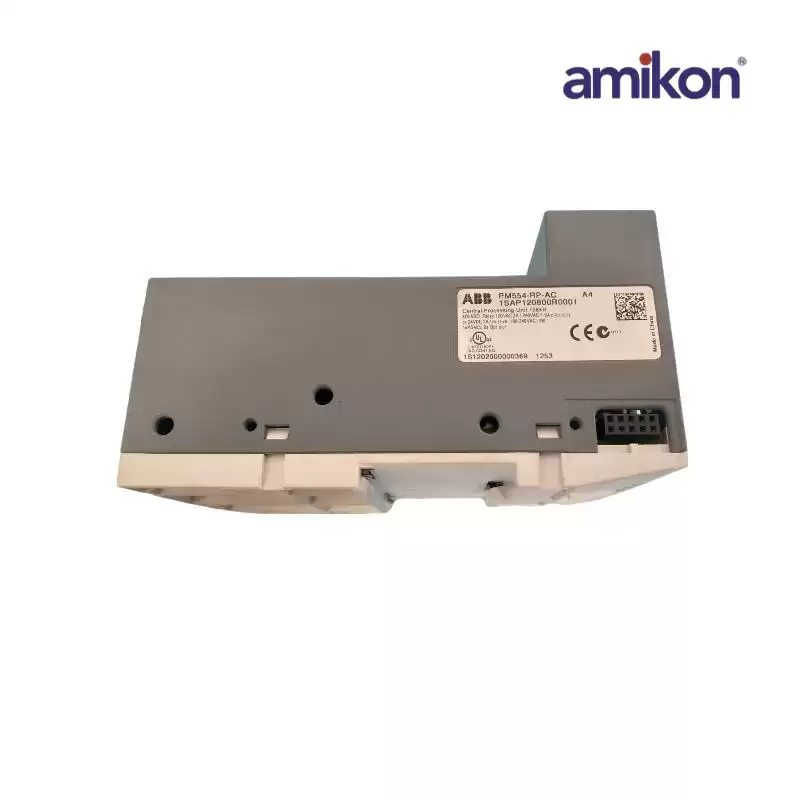

PM554-RP-AC 1SAP120800R0001
|
|
Dimensions ：
|
15cmx2.5cmx20.3cm
|
Weight：
|
0.3kg
|
|
Full Description:Easy handling
The user program can be downloaded via a SD card without the need for programming tools.
CPUs with integrated I/Os for small applications available.
Pre-wiring is possible via the use of pluggable terminal blocks.
The modules can be fitted to the DIN rail with easy-to-use snap-on mechanism.
|
|
The PM554-RP-AC is a .The Analogue Input signal selection is done with jumpers S1 (AI1) and S2 (AI2): I = 0(4) - 20 mA, V = 0(2) - 10 V.The X50 screw terminal on the Control Interface Card SNAT 7600/7640 in the Control Unit.
(This terminal may have been routed to the optional Terminal Block X2 in the cabinet outside the Control Unit).The RS 485 serial communication bus; terminal X51 on Control Interface Card (This terminal may have been routed to the optional Terminal Block X2 in the cabinet outside the Control Unit).
|
