ABB PM582 CO 1SAP140200R0100 ​ New Original

Contact person: Sandy

WhatsApp: +86-18020776786

E-mail: plcinfo@mooreplc.com

Skype: live:onlywnn_1

Pls notice as below when inquiry:      Get Offer Here

1):All quote are basic on EX-WORK

2):Delivery time: 5-7 days

3):Payment Term:T/T

4):ship to you via DHL/TNT/UPS/EMS/Fedex.

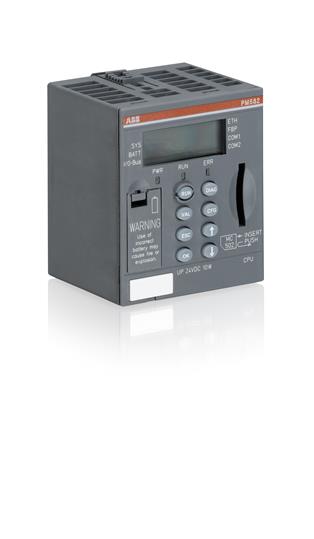

                Product specific picture:

ABB PM582 CO 1SAP140200R0100

1.PM582 CO 1SAP140200R0100 we sell is 100% New Original Factory packing in good condition and have been tested before they are shipped. We will try our best to avoid any quality problems.

2.We will offer the technical support by experienced staff, which have undergone rigorous testing and certification!

3.We offer 12 month warranty after receiving parcels. If there are some workmanship or material defects with the products, please contact us firstly, we will exchange it or offer other solutions for you to make a choice.

4.If you order more than one item, please contact us, we can offer further discounts for you. And if you find other suppliers offer cheaper prices for the same product, we are also willing to provide you with reference to their price,even further discounts.

E-mail: plcinfo@mooreplc.com

PM582 CO 1SAP140200R0100

Manufacturer(s)

ABB

General Information

Extended Product Type:
PM582-V14x
Product ID:
1SAP140200R0200
ABB Type Designation:
PM582
EAN:
4016779711579
Catalog Description:
PM582:AC500,Prog.Logic Controller 512kB
Long Description:
PM582:AC500,Prog.Logic Controller 512kB 24VDC,2xRS232/485,FBP,SD-Card Slot LCD Display
Categories
Products » Low Voltage Products and Systems » Control Products » Programmable Logic Controllers PLCs » Distributed Automation PLCs
Products » PLC Automation » Programmable Logic Controllers PLCs » AC500 » CPUs

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389091
Dimensions
Product Net Width:
67.5 mm
Product Net Height:
76 mm
Product Net Length:
62 mm
Product Net Weight:
0.14 kg
Environmental
Ambient Air Temperature:
Operation 0 ... +60 °C
Storage -40 ... +70 °C
Maximum Operating Altitude Permissible:
2000 m
RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
Additional Information
Communication Interface:
Serial/FiedlBusPlug
Communication:
Serial interfaces for communication and programming
Communication Speed:
Speed for 1000 instructions of Logic = 0.05 0.05 ms
Speed for 1000 instructions of Word = 0.05 0.06 ms
Speed for 1000 instructions of Floating-point = 0.5 0.50 ms
CS31-Bus:
1
Degree of Protection:
IP20
Display Type:
LCD
I/O Option:
CPU with Local IO - on I/O-Bus
Maximum Number of Analog I/Os:
160AI, 160AO Local, max. 10 expansion modules
Maximum Number of Digital I/Os:
320DI, 240DO/DC Local, max. 10 expansion modules
Memory Size User Data:
416 kB
Memory Size User Program:
512 kB
Memory Type User Data:
Flash EPROM
Memory Type User Program:
Flash EPROM, non-volatile RAM, SD Card
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
Horizontal, Vertical possible with derating
Number of Display Lines:
1
Number of Function Keys:
8
Number of LEDs:
3
Order Multiple:
1 piece
Power Supply:
24 V DC
Primary Voltage:
24 V DC
Product Main Type:
PM582
Product Name:
Distributed Automation PLCs
Product Type:
PLC-AC500
Programming Software:
PS501-PROG Control Builder Plus
Real-time Clock:
Yes
Replaced Product ID (OLD):
1SAP140200R7100
1SAP140200R0100
RoHS Date:
1231
Secondary Current:
0.2 A
Serial Port 1 Type:
RS232 / RS485 configurable, Programing, Modbus Master or slave, ASCII, CS31 Master
Serial Port 2 Type:
RS232 / RS485 configurable, Programing, Modbus Master or slave, ASCII
Supply Voltage:
24 V DC
Certificates and Declarations (Document Number)
ABS Certificate:
1SAA960002-0106
BV Certificate:
1SAA960003-0204
CSA Certificate:
1SAA960000-1712
cUL Certificate:
1SAA960000-1712
cULus Certificate:
1SAA960000-1712
Data Sheet, Technical Information:
2CDC125002B0207
Declaration of Conformity - CE:
1SAD938504-0161
Declaration of Conformity - C-Tick:
1SAA960000-3302
Declaration of Conformity - KCC:
1SAA960001-4801
DNV Certificate:
1SAA960002-0306
Environmental Information:
1SAA960007-2406
GL Certificate:
1SAA960004-0409
GOST Certificate:
1SAA962000-2703
Instructions and Manuals:
2CDC125080M0202
LR Certificate:
1SAA960002-0506
RINA Certificate:
1SAA960003-0807
RMRS Certificate:
1SAA960001-0706
RoHS Information:
1SAA960005-4410
UL Certificate:
1SAA960000-1612

Collects Signal Values from the Flame Detector

The FAU810 analyzes the signals generated from the Flame Detector.

Calculates Signal Quality

The FAU810 measures the quality of the signal to provide an indication of changes in the burner flame.

Quality values act as a barometer, forecasting when a burner flame-out is likely to occur. This can help you to anticipate changes and problems.

Continuously Detect Faults

The instrument automatically monitors the electronic components of the Flame Detector and FAU810 unit to detect

system problems or faults.

Signals Unsafe Conditions

A no-flame condition occurs when the FAU810 logic determines that an unsafe condition exists.
