PM861AK01 Classic System
800xA hardware selector
The CPU board contains the microprocessor and RAM memory, a realtime clock, LED indicators, INIT push button and a Compact Flash interface.

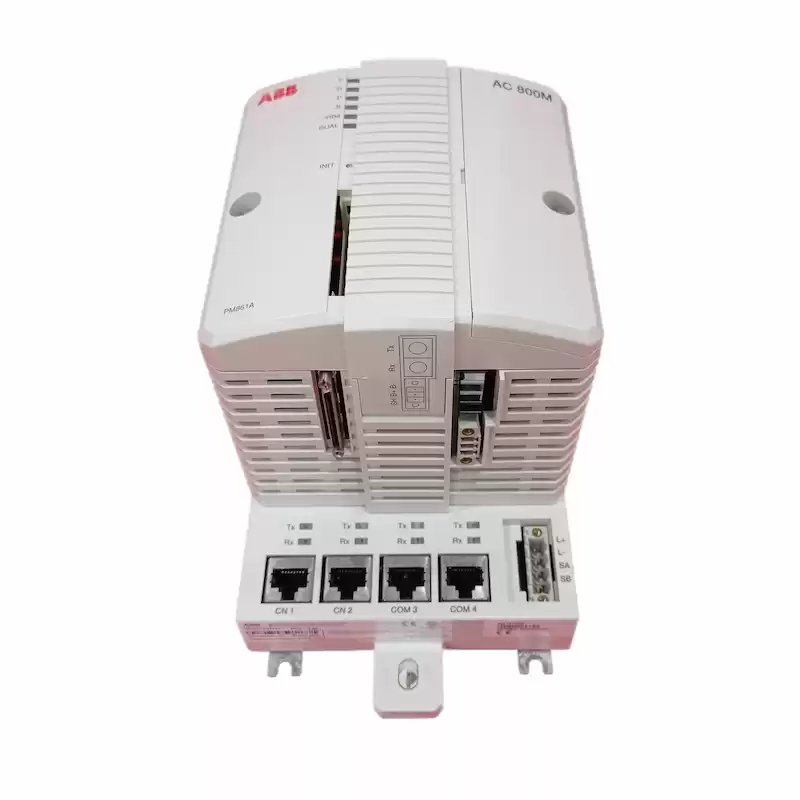

The base plate of the PM861A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).
Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.
Features and benefits
· Reliability and simple fault diagnosis procedures
· Modularity, allowing for step-by-step expansion
· IP20 Class protection without the requirement for enclosures
· The controller can be configured with 800xA control builder
· The controller has full EMC certification
· Sectioned CEX-Bus using a pair of BC810
· Hardware based on standards for optimum communication connectivity(Ethernet, PROFIBUS DP, etc.)
· Built-in redundant Ethernet Communication ports
Technical data
| Article number |
3BSE018157R1 |
| Processor type |
MPC860 |
|
Catalog Description
|
PM861AK01 Processor Unit
|
| Redundancy |
Yes |
| High Integrity |
No |
| Memory |
16MB |
| RAM available for application |
7.155 MB |
| Power supply |
24V DC (19.2-30 V DC) |
| Diemen sions |
119 mm x 189 mm x 135 mm |
| Weight |
1.35 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
