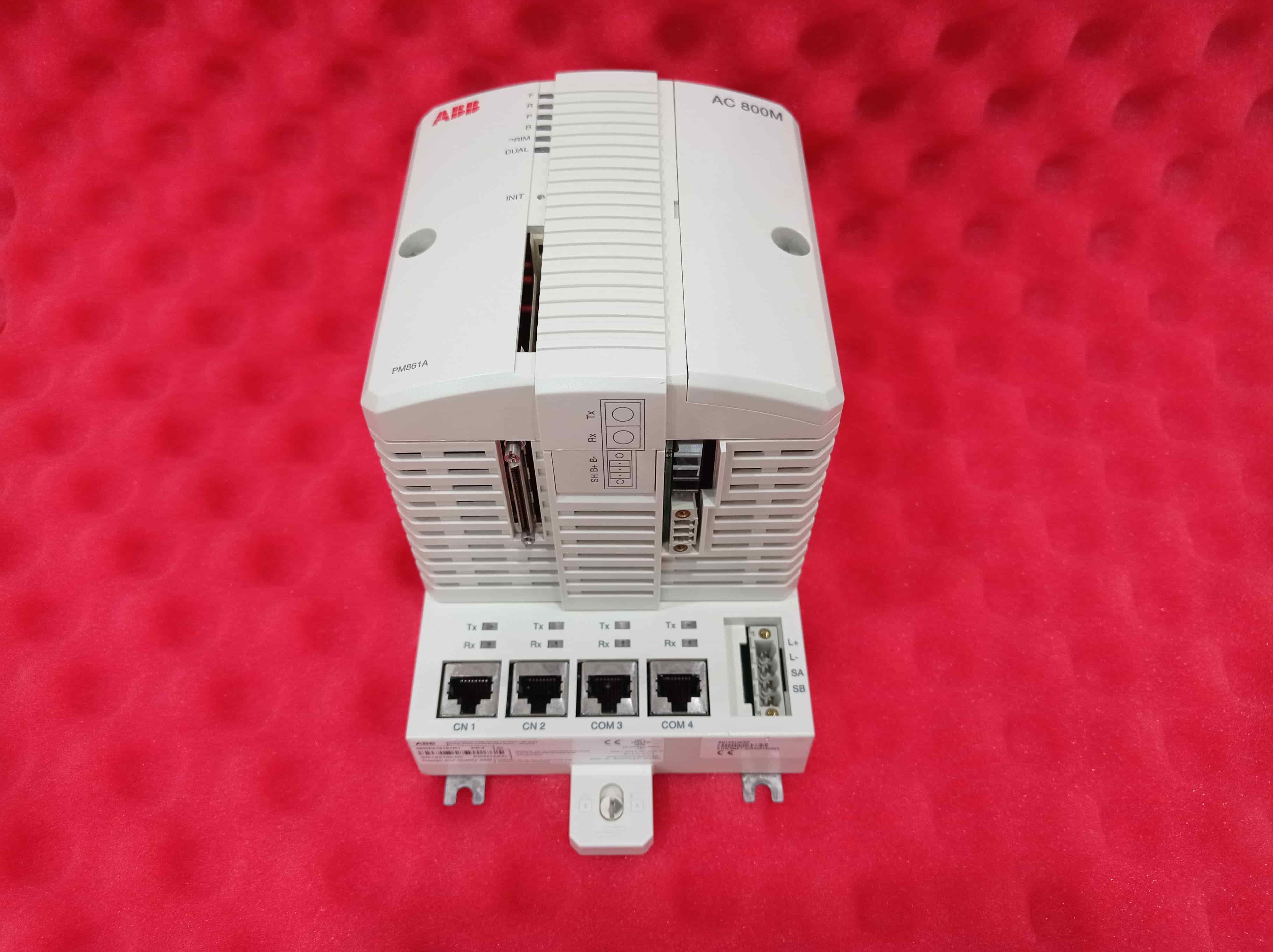

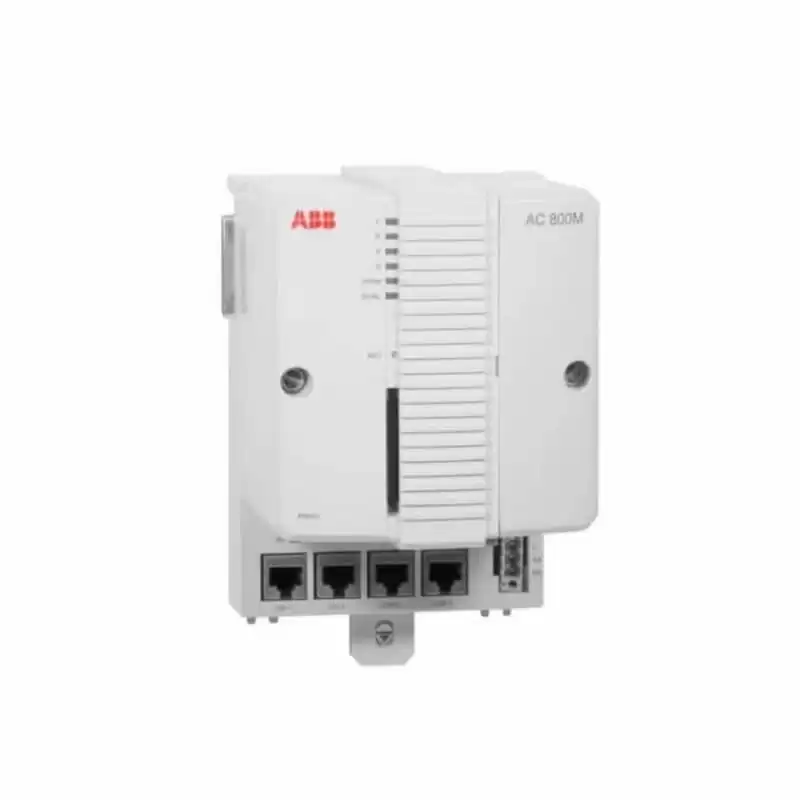

PM864AK01 3BSE018161R1
Medium Description:
PM864AK01 Processor Unit
Technical Information:
PM864AK01 Processor Unit Kit
Exchange No. EXC3BSE018161R1Package including:
-PM864A, CPU
-TP830, Baseplate, width =115mm
-TB850, CEX-bus terminator
-TB807, ModuleBus terminator
-TB852, RCU-Link terminator
-Battery for memory backup 4943013-6
-4 pos Power Plug 3BSC840088R4
The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.
The base plate of the PM864A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).
Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.
Features and benefits:
Reliability and simple fault diagnosis procedures
Modularity, allowing for step-by-step expansion
IP20 Class protection without the requirement for enclosures
The controller can be configured with 800xA control builder
The controller has full EMC certification
Sectioned CEX-Bus using a pair of BC810
Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)
Built-in redundant Ethernet Communication ports
Technical Specifications
| Manufacture |
ABB |
| Model |
PM864AK01 |
| Ordering information |
3BSE018161R1 |
| Catalog |
800xA |
| Description |
PM864AK01 Processor Unit |
| Origin |
Sweden (SE) |
| HS Code |
85389091 |
| Dimension |
119 mm * 186 mm * 135 mm |
| Weight |
1.2 kg |
