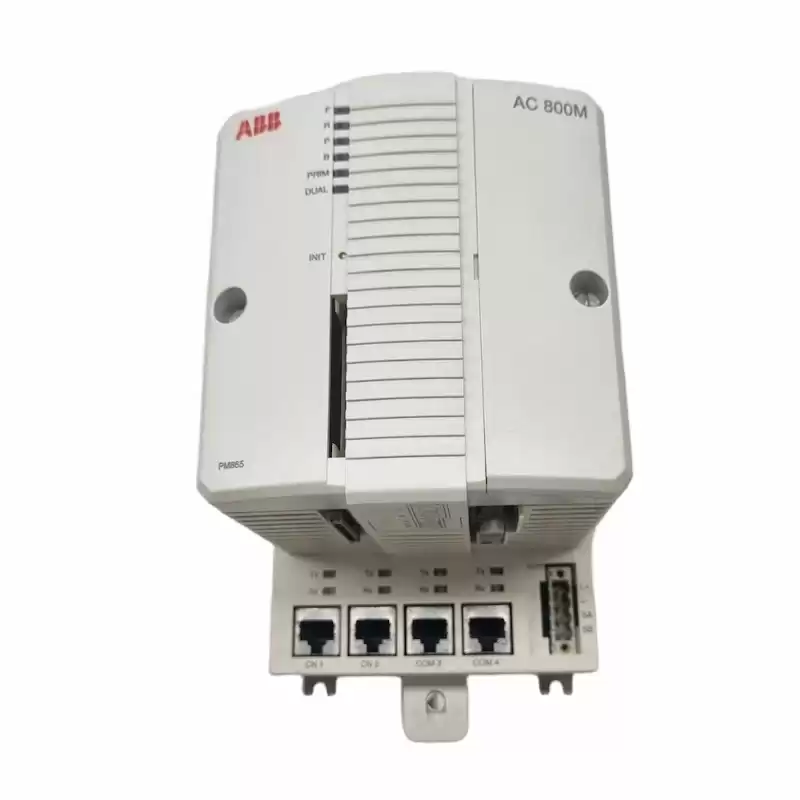

ABB PM865K01 3BSE031151R1 Processor Unit
Compact Product Suite hardware selector
The CPU board contains the microprocessor and RAM memory, a realtime clock, LED indicators, INIT push button, and a Compact Flash interface.

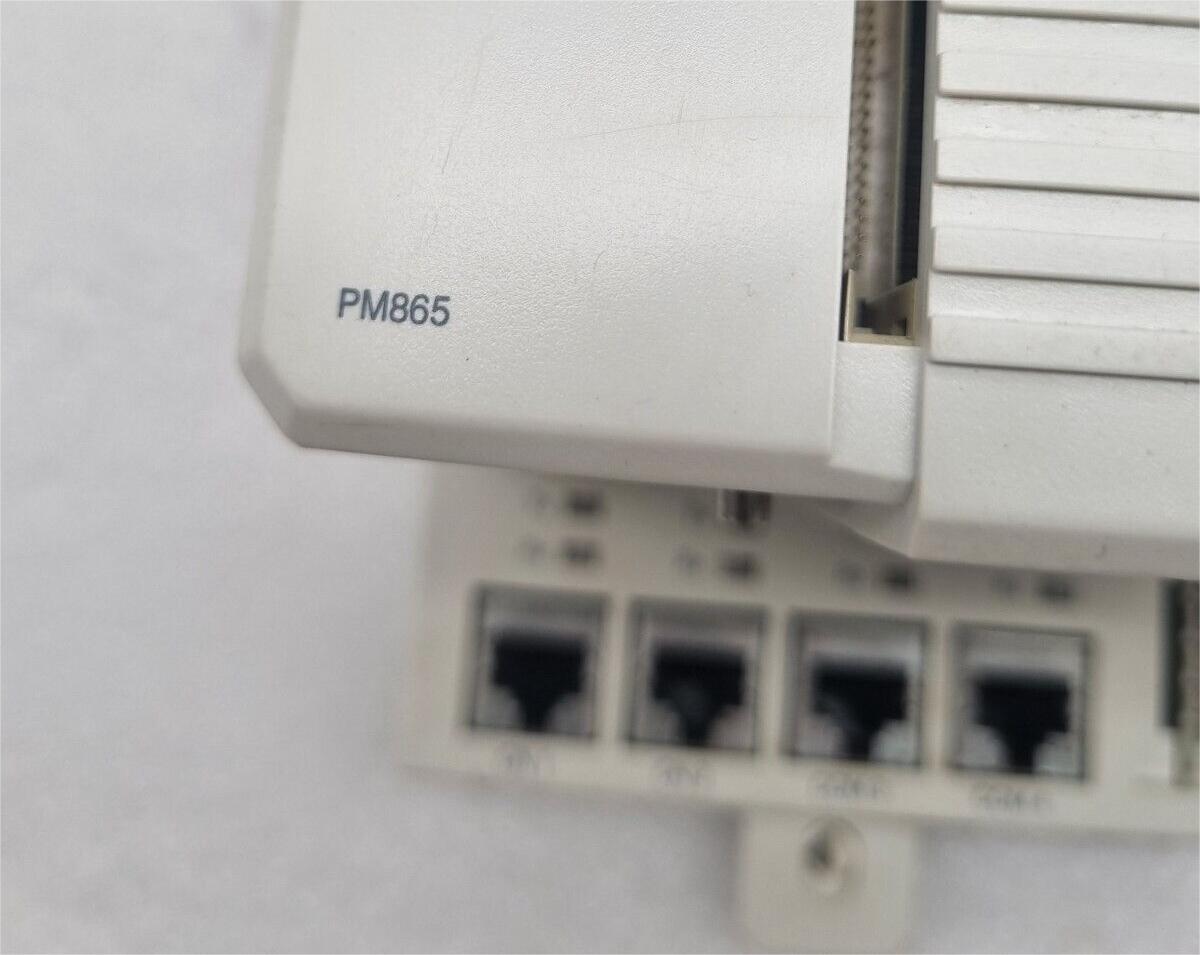

The base plate of the PM865 controller has two RJ45 Ethernet ports (CN1,CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).
The high integrity functionalityis enabled by the addition of a SM81x module and the SIL certified software. This enables non-critical control schemes to be upgraded to SIL certified schemes by the addition of a plug-in SM81x module, plus selection of the appropriate software. The AC 800MHigh-Integrity also offers IEC 61508 and TÜV certified control environment for combining safety and business critical process control in one controller unit without sacrificing the safety integrity.
Features and benefits:
· AC 800M High SIL 2 certified using PM865/SM810/SM811 or PM867/SM812
· AC 800M High SIL 3 certified using PM865/SM811 or PM867/SM812
· Supports S800 I/O High Integrity(PM865, PM866A and PM891)
· The controller can be configured with 800xA control builder
· The controller has full EMC certification
· TÜV Certified SIL 2 and SIL 3
· Built-in redundant Ethernet Communication ports
Technical data
| Article number |
3BSE031151R1 |
| Catalog Description |
PM865K01 Processor Unit |
| Processor type |
MPC862P |
| RAM available for application |
22.184MB |
| Memory |
32 MB |
| Power supply |
24V DC (19.2-30 V DC) |
| Rated Isolation Voltage |
500 V a.c. |
| Protection class |
IP20 according to EN 60529, IEC 529 |
| Dimensions |
119 mm x 189 mm x 135 mm |
| Weight |
1.2 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
