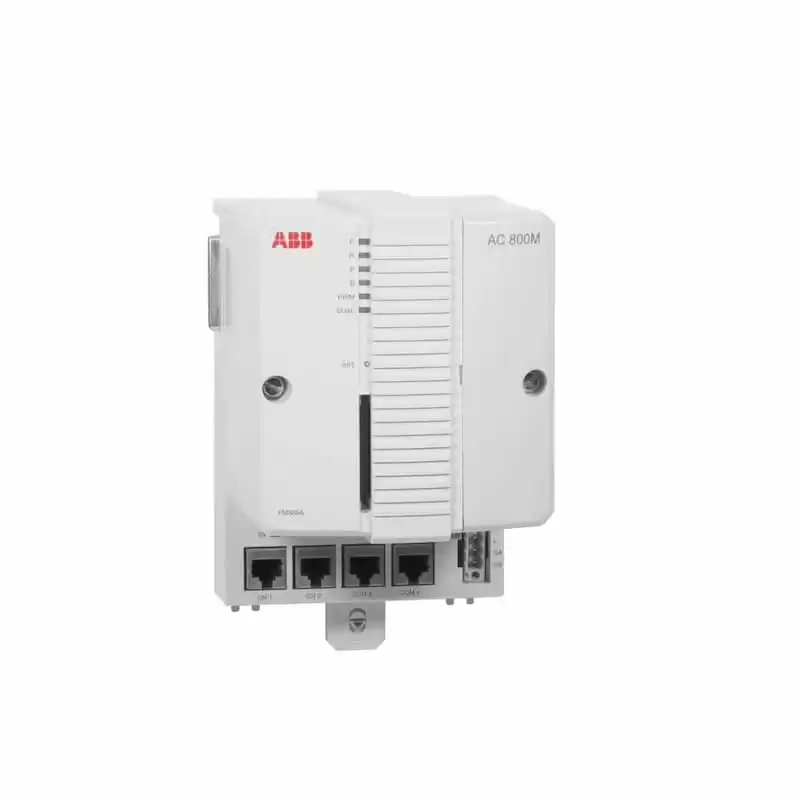

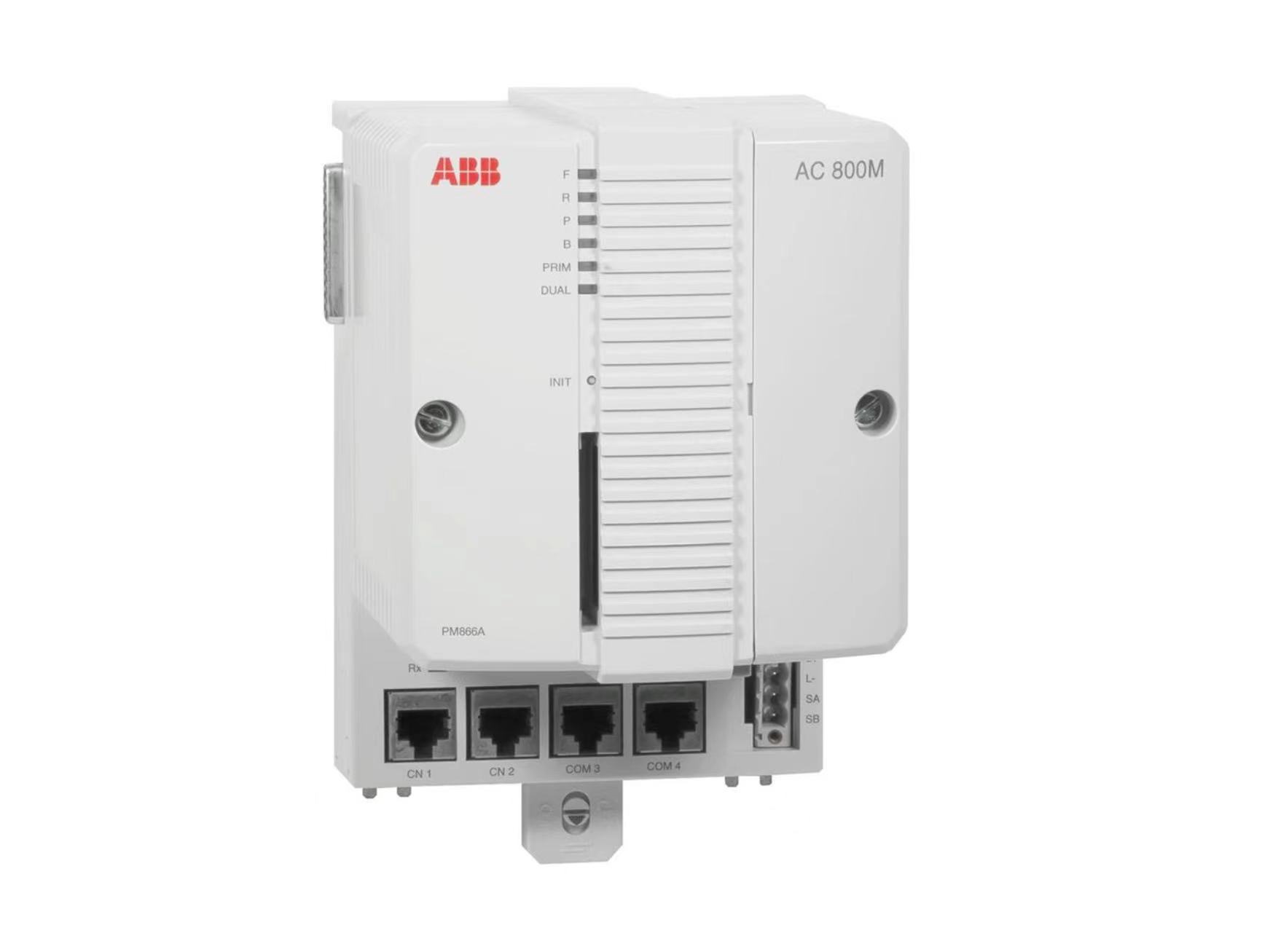

ABB PM866AK01 3BSE076939R1 Processor Unit
Catalog Description:
PM866AK01 Processor Unit
Long Description:
133MHz and 64MB.
Package including:
- PM866A, CPU
- TP830, Baseplate
- TB850, CEX-bus terminator
- TB807, ModuleBus terminator
- TB852, RCU-Link terminator
- Battery for memory backup (4943013-6)
- No license included.
The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).
Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.
Features and benefits:
ISA Secure certified
Reliability and simple fault diagnosis procedures
Modularity, allowing for step-by-step expansion
IP20 Class protection without the requirement for enclosures
The controller can be configured with 800xA control builder
The controller has full EMC certification
Sectioned CEX-Bus using a pair of BC810 / BC820
Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)
Built-in redundant Ethernet Communication ports.
Technical Specifications
| Manufacture |
ABB |
| Model |
PM866AK01 |
| Ordering information |
3BSE076939R1 |
| Catalog |
800xA |
| Description |
PM866AK01 Processor Unit |
| Origin |
Sweden (SE) |
| China (CN) |
| HS Code |
85389091 |
| Dimension |
135 mm x 186 mm x 119 mm |
| Weight |
1.2 kg |
