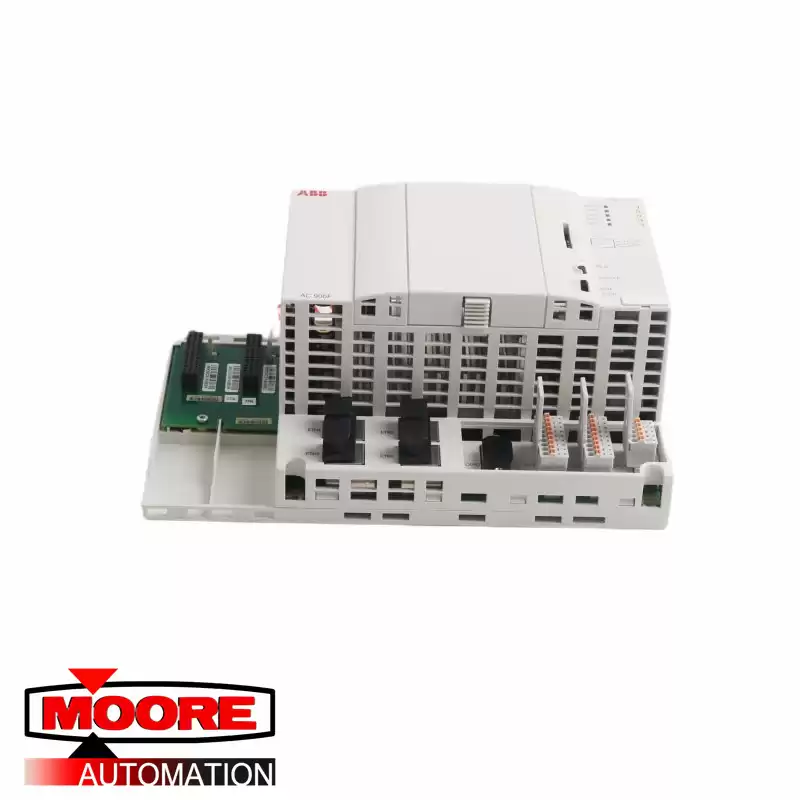

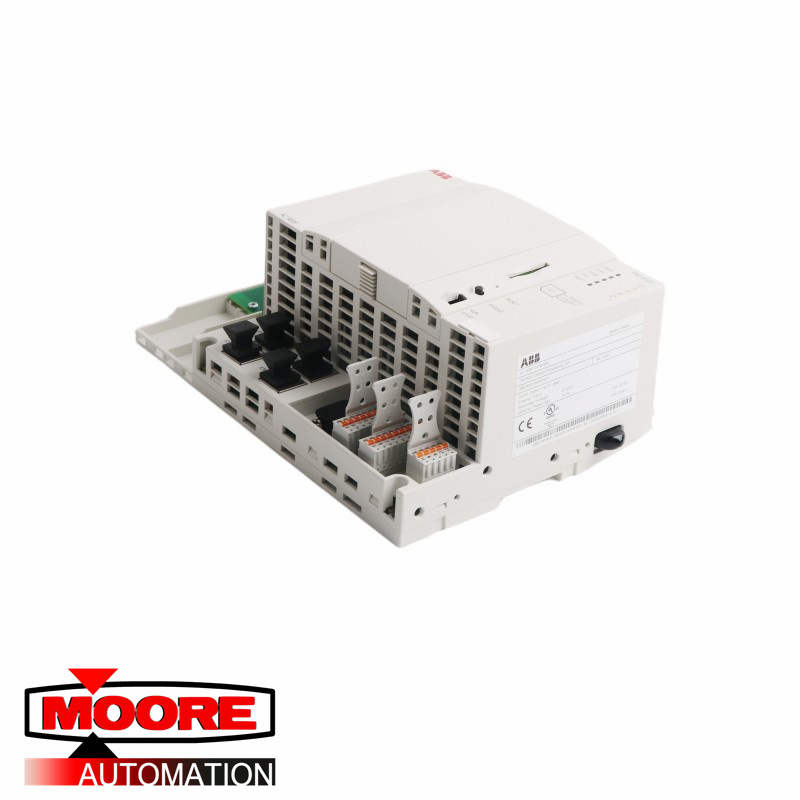

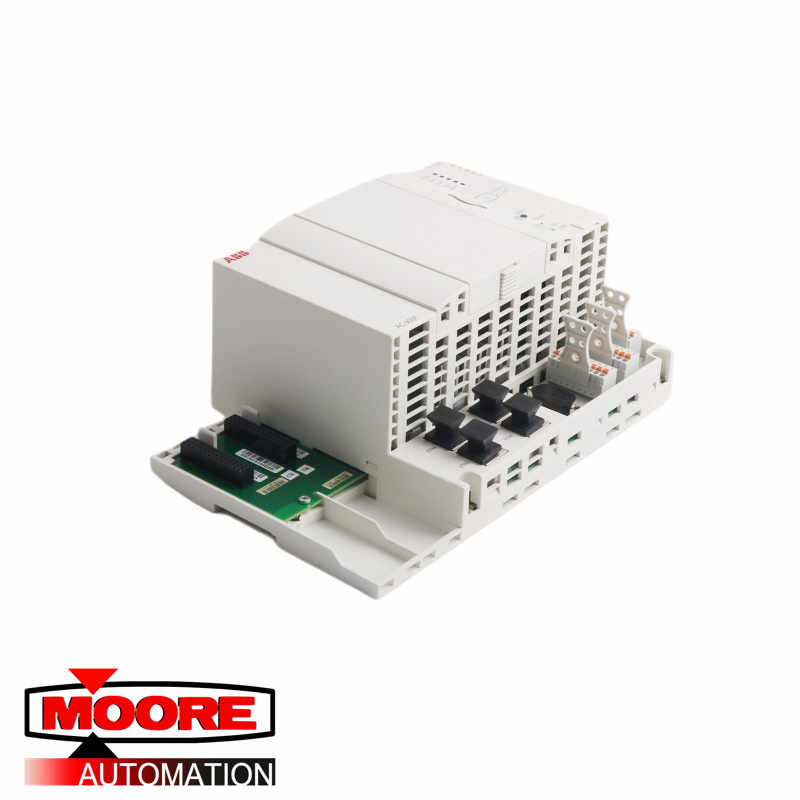

Product Description:
– SD card support
– Optional LCD display supporting e.g. security through controller lock, easy backup of your application and easy access to process variables.
– Typically around 1,500 I/Os supported (up to 400 I/Os with
the lite CPU)
– G3 compliant as standard
– Option to run controllers either redundantly (CPU redundancy, fieldbus module redundancy) or non-redundantly
– Standard CPU PM902F: four (4) built-in Ethernet ports
supporting Modbus TCP/IP or 60870-5-104 telecontrol
protocol
– Lite CPU PM901F: three (3) built-in Ethernet ports supporting Modbus TCP/IP or 60870-5-104 telecontrol protocol
– Two (2) serial ports supporting Modbus RTU/ASCII or IEC
60870-5-101 telecontrol protocol
– CAN bus module for connection of Freelance Rack I/O
– Optional PROFIBUS master modules (up to two) providing
integrated line redundancy and supporting exchange during the plant is in operation (hot-plug)
– Direct connection of S700 I/O modules (up to 10), including
modules combining inputs and outputs in just one module. This
can reduce footprint and costs.
– I/O modules can also be connected remotely via PROFIBUS
