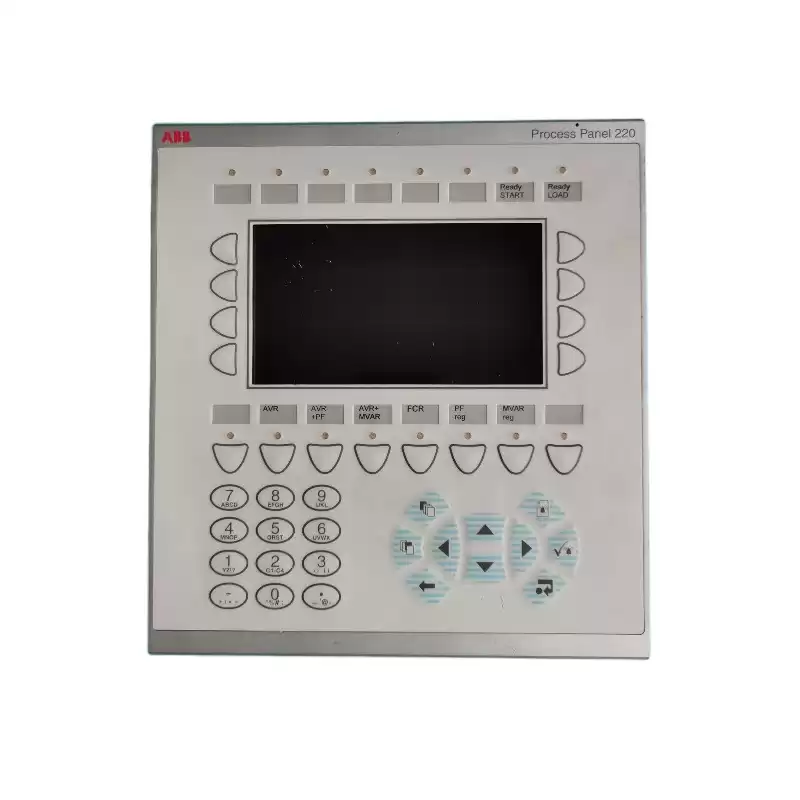

ABB PP220 3BSC690099R2 Process Panel

The ABB PP220 has a LCD display with 240x128 pixels, graphics & text touch screen.The equipment with type process operator is manufactured by ABB and commercialized under the reference 3BSC690099R2.





PP220 3BSC690099R2 Process Panel



ABB PP220 3BSC690099R2 is an operator panel designed specifically for use in industrial automation systems. This operator panel offers a wide range of functions and features to ensure optimal control and monitoring of processes.



One of the key features of the ABB 3BSC690099R2 is its large color touch screen, which provides convenient and intuitive control. The screen has a high resolution and excellent color rendering, which allows operators to quickly and accurately obtain the necessary information about the system's operation.



In addition, the presence of a touch screen makes the use of the panel more convenient and efficient. 3BSC690099R2 also has advanced communication capabilities such as an Ethernet port and various communication protocols.



This ensures easy integration of the panel into the existing automation system and allows operators to effectively monitor and control processes. Thanks to its reliability and high quality, the ABB 3BSC690099R2 operator panel ensures stable operation in harsh industrial conditions.



The panel design is protected from dust, moisture and impact, making it ideal for use in a variety of industries, including manufacturing, oil and gas, energy and others. Overall, the ABB 3BSC690099R2 operator panel is a reliable and advanced device that provides precise control and monitoring of automation processes.



Ideal for use in a wide range of industrial sectors, it will help improve operational efficiency and ensure process safety.



• Keep the PP220 3BSC690099R2 Switch Membrane operator panel clean.

• Emergency stop and other safety functions may not be controlled from the operator panel.

• Do not use excessive force or sharp objects when PP220 3BSC690099R2 Terminal Keypad operating the touch screen.



All Process Panel 220 are developed to satisfy the demands of human-machine communication. Built-in functions such as displaying and controlling text, dynamic indication, time channels, alarm and recipe handling are included. The Process Panel 220 works primarily in an object-oriented way, making it easy to understand and use. Configuration is carried out on a PC using the Panel Builder configuration tool. The project can then be transferred and stored in the operator panel itself.



Technical Specifications

Manufacturer ABB
Part Number PP220

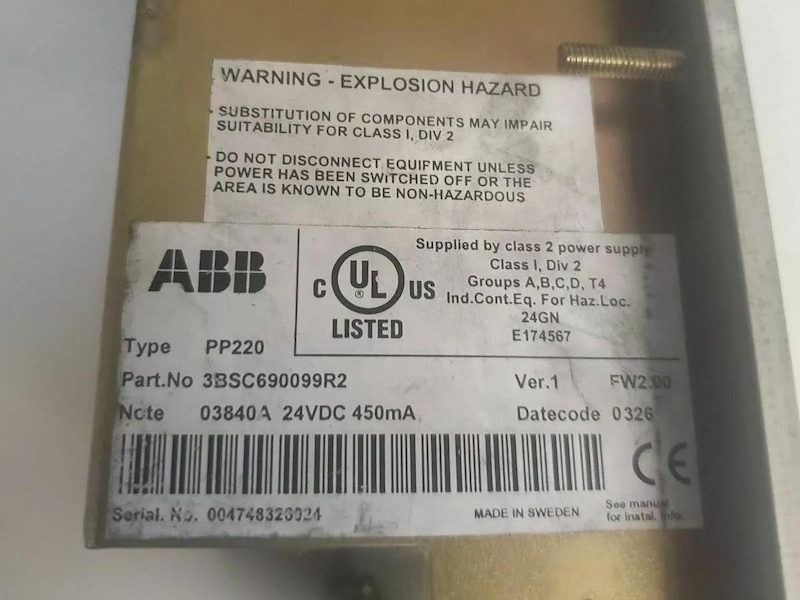

Ordering Information 3BSC690099R2
Product Catalog 800 xA
Description Process Panel
Voltage 24 Vdc
Current 450 mA
Dimensions 214 mm x 232 mm x 50 mm
Weight 1.4 kg



ABB PP220



3BSC690099R2



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com




Product Tags ABB PP220          PP220 ABB          3BSC690099R2          ABB 3BSC690099R2          3BSC690099R2 ABB          PP220 Process Panel
