PPC322BE HIEE300900R1 Processor Unit

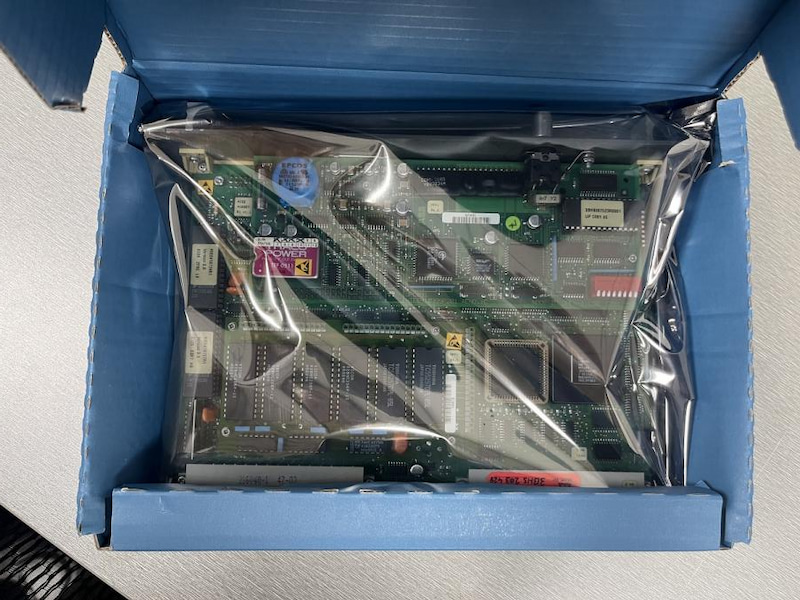

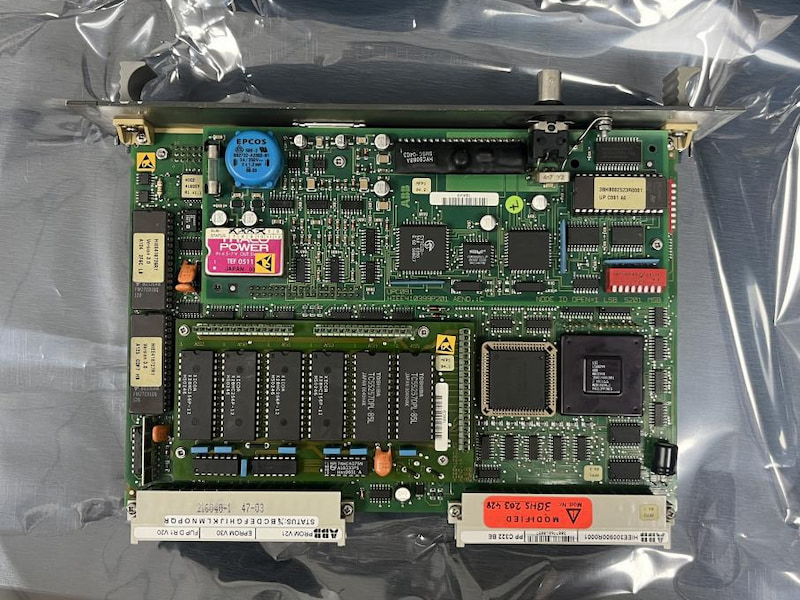

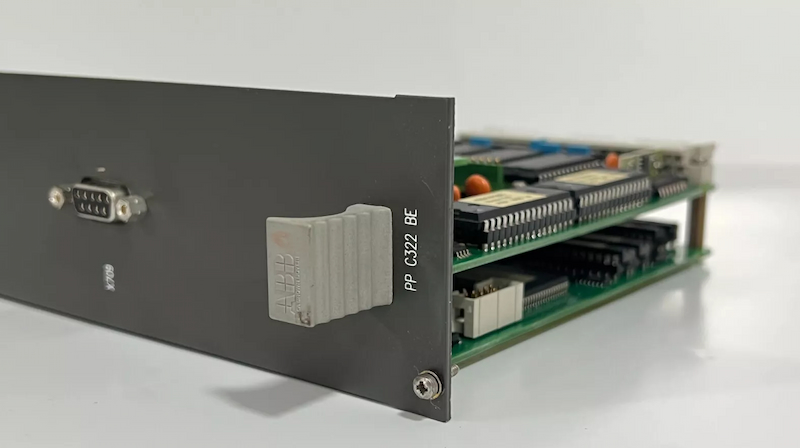

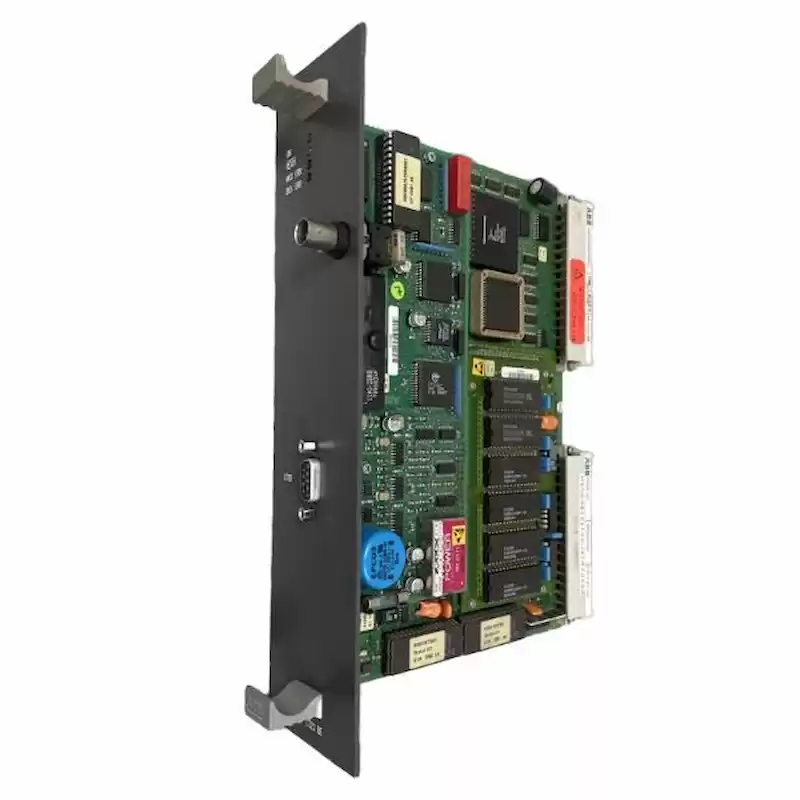

The PPC322BE HIEE300900R1 is a processor unit, manufactured and designed by ABB as a spare part of the excitation system.
It is a high-performance central processor that serves as the computational and control core of the computer and supports a variety of interfaces, including Ethernet interfaces, serial interfaces, etc., for communicating and connecting with other devices and systems. In addition, it has a built-in battery to ensure power stability or standby function.
Features
· Processor: PSR-2
· Clock speed:1 GHz
· Memory: 512 MB
· I/O: 2 RS-232 ports，1 Ethernet port
· Fieldbus: Profibus DP，Modbus RTU
· Operating temperature: -40°C to +70°C
· Operating humidity: 5% to 95% RH，non-condensing
Additional Information
ABB Type Designation: -
Core Credit: 0.00
Country of Origin: Switzerland (CH)
Customs Tariff Number: 85371092
Frame Size: Spare_Parts
Invoice Description: PP C322 BE01 PSR-2 processor + fieldbus
Made To Order: No
Medium Description: PP C322 BE01
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Part Type: New
Product Name: -
Product Net Depth / Length: 25.4 cm
Product Net Height: 7.6 cm
Product Net Weight: 1 kg
Product Net Width: 20.3 cm
Product Type: 100___PSR_Geräte
Quote Only: No
Selling Unit of Measure: piece
Stocked At (Warehouses): Baden, Switzerland
Temperature Class Default: --
Two Speed Motor: No
WEEE Category: Product Not in WEEE Scope
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
PPC322BE |
| Ordering Information |
HIEE300900R1 |
| Product Catalog |
Excitation system |
| Description |
Processor Unit |
| Voltage |
24 Vdc |
| Current |
1 A |
| Dimensions |
20.3 cm x 7.6 cm x 25.4 cm |
| Weight |
1 kg |
