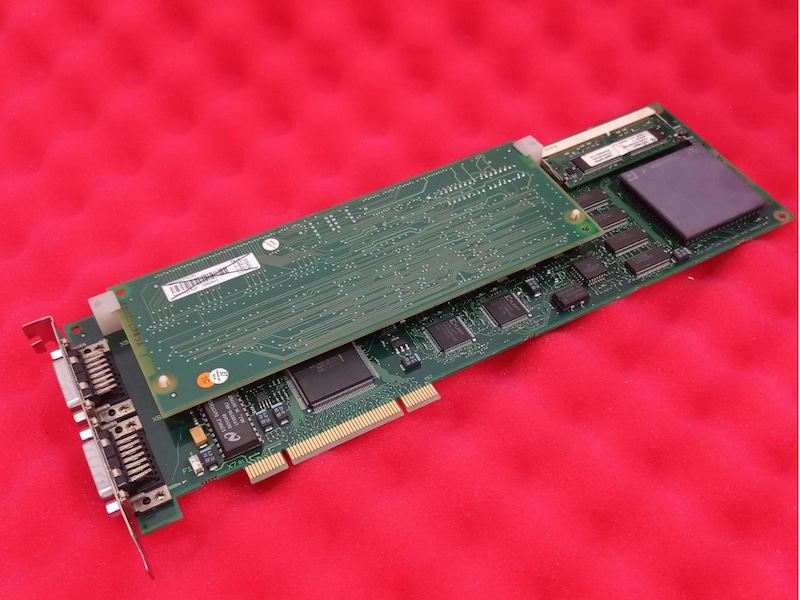

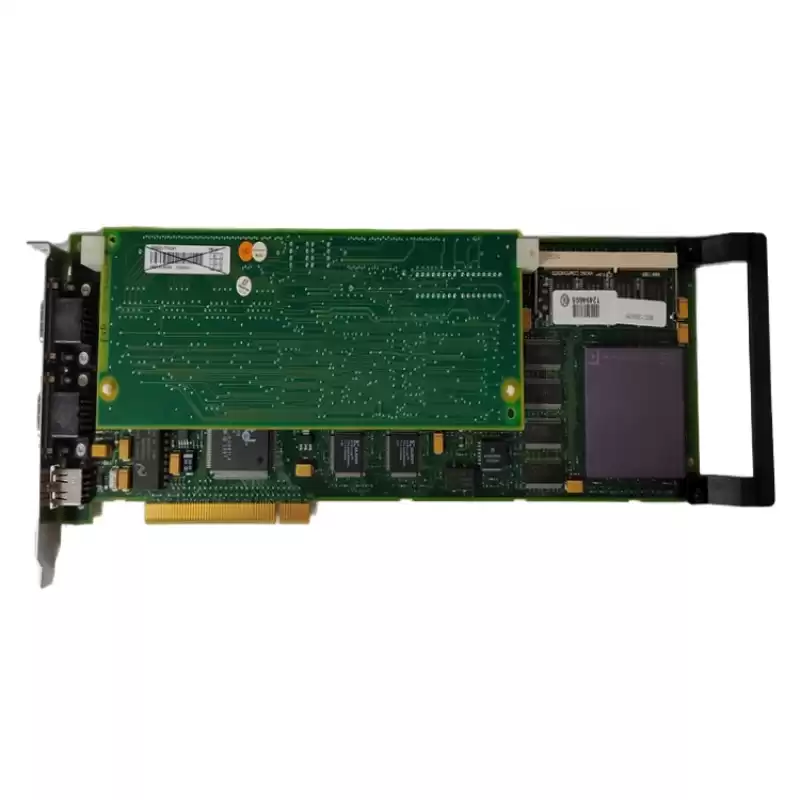

PU515A 3BSE032401R1 Real-Time Accelerator RTA board
The PU515A is a Real-Time Accelerator RTA board, it used with Master and MOD eDCN systems. Installed in 3.3V or 5V 32-bit 33MHz PCI or 100/133MHz PCI-X slot (runs at 33MHz). Including CS503V1 dual channel MB300 communication module and 16Mbyte RAM. With two 15-pin female Dsub connectors. it can also be installed in 64-bit slot with 16Mbyte memory.
This communication board used for connection to the MasterBus 300 control network.
800xA for Advant Master uses a Real Time Accelerator (RTA) board with the Connectivity Server, either an external PU410 RTA Unit or a PU515A PCI-type board. The application specific software on the RTA board is automatically loaded when the 800xA for Advant Master software is started in the Connectivity Server.
The latest PU515A PCI RTA boards use a PCI-X133 slot and are backward compatible to earlier PCI slot specifications. These cards can not be used in PCI-X266 or higher, or in PCI Express slots.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
PU515A |
| Ordering Information |

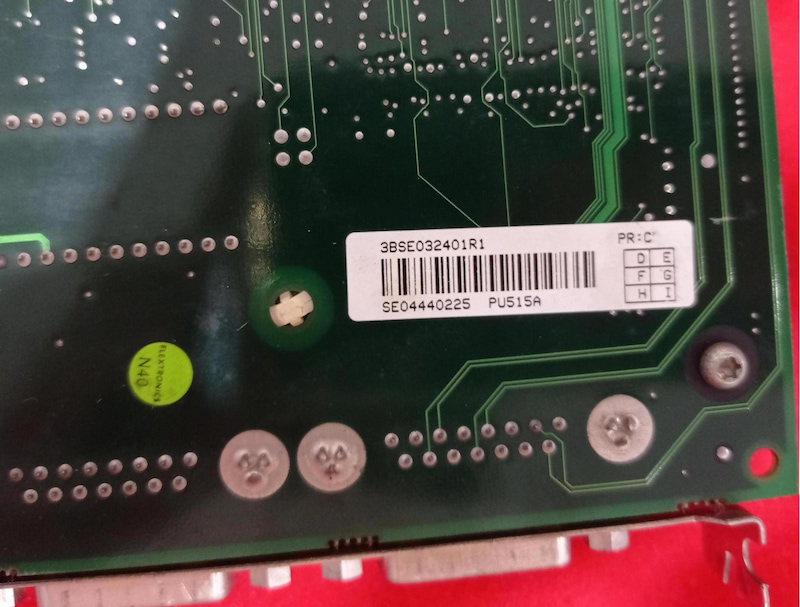

3BSE032401R1 |
| Product Catalog |
800 xA |
| Description |
Real-Time Accelerator RTA board |
| Voltage |
24 Vdc |
| Current |
450 mA |
| Dimensions |
33.0 cm x 12.7 cm x 5.1 cm |
| Weight |
0.2 kg |
