ABB RAIO-01 Analogue I/O Extension Module

Product Description

The RAIO-01 is Analogue I/O Extension module.The RAIO-01 Analogue I/O Extension module offers two bipolar current (±0[4]…20 mA) or voltage (±0[2]…10 V or ±0…2 V) inputs and two unipolar current (0[4]…20 mA) outputs with 12-bit resolution. The analogue inputs and outputs are galvanically isolated as a group from each other and the power supply.

The RAIO-01 is compatible with the ACS800 Standard Application Program version ASXR7000 or later.The RAIO-01 is to be inserted into an optional module slot on either the RMIO board of the drive, or on an AIMA-01 I/O Module Adapter.

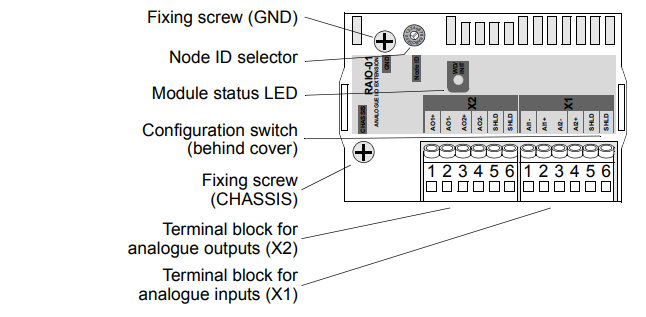

Module layout
