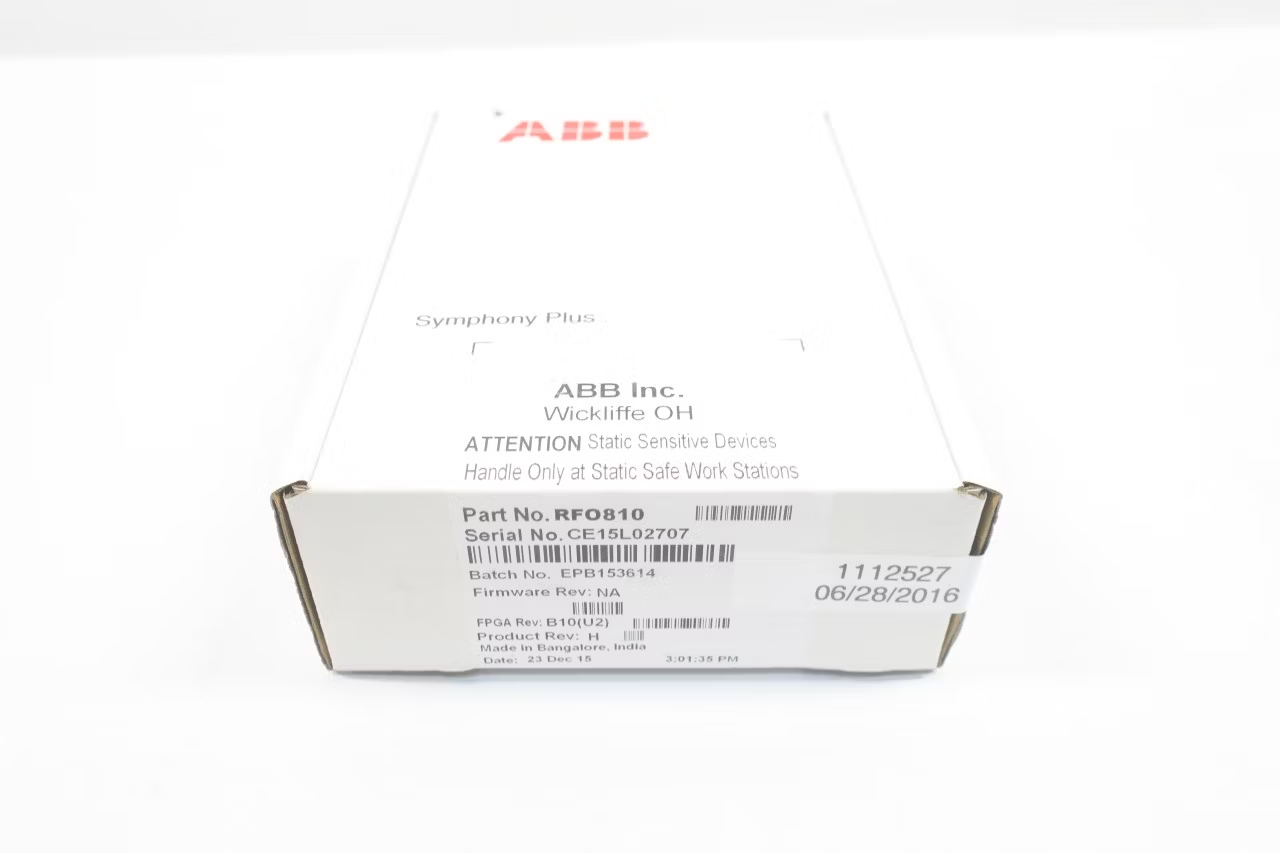

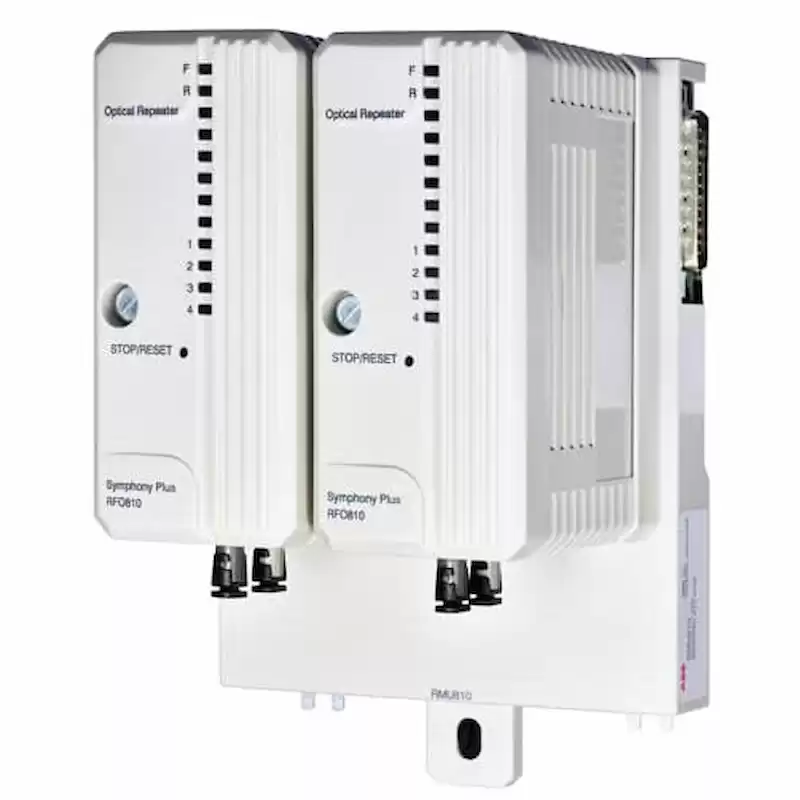

ABB RFO810 Fiber Optic Repeater Module
Fiber Optic Repeater
The ABB RFO810 optical repeater module is part of the fiber-optic based communication link. It can be used with both HR Series and SD Series controllers. It transparently extends communication to I/O devices on the HN800 bus up to 3 km for remote applications.It can also be used to extend peer-to-peer communication between HPC800 controllers (CW800) up to 3 km.
Technical data
|
Power requirements
|
24 VDC ± 10% at 90 mA; 2.16 W typical
|
|
Communication rate
|
4 Mbps on HN800 and CW800
|
|
Bus redundancy
|
Yes
|
|
Devices
|
Up to 64 HN800 devices on each electrical HN800 bus
Up to 30 single HPC800 controllers or 15 redundant pairs
of HPC800 controllers on electrical CW800 bus on each
side of the optical link
|
|
Fiber optic cable
|
Fiber size: 62.5/125 μm
Fiber attenuation: -3.5 dB/km
Index: Graded
Wavelength: 840 nm
Bandwidth: 160 MHz/km
Connector type: 10 ST style with right angle strain relief,
40 mm (1.5 in.) bend radius
Transmission mode: Multimode
|
|
Ambient temperature
|
0 °C to 55 °C (32 °F to 131 °F). Tested according to
IEC/EN 60068-2-1, IEC/EN 60068-2-2, IEC/EN 60068-2-14
|
|
Dimensions (with base)
|
124 mm width, 186 mm height, 127 mm depth
(4.88 in. width, 7.32 in. height, 5 in. depth)
|
|
Weight
|
0.61 kg |
