Technical Specifications for S200-IE8 S200IE8
|
Manufacturer
|
ABB
|
|
Condition
|
100% New Original
|
|
Brand
|
ABB
|
Ambient temperature
|
‑25 +55 °C
|
|
Part Number/Catalog No.
|
S200-IE8
|
Rating voltage
|
24 VDC
|
|
Product Package
|
Original Package
|
Manufacture Year
|
2022
|
|
Product Name
|
Analog Input
|
Tariff Number
|
85334550
|
About S200-IE8 S200IE8
|

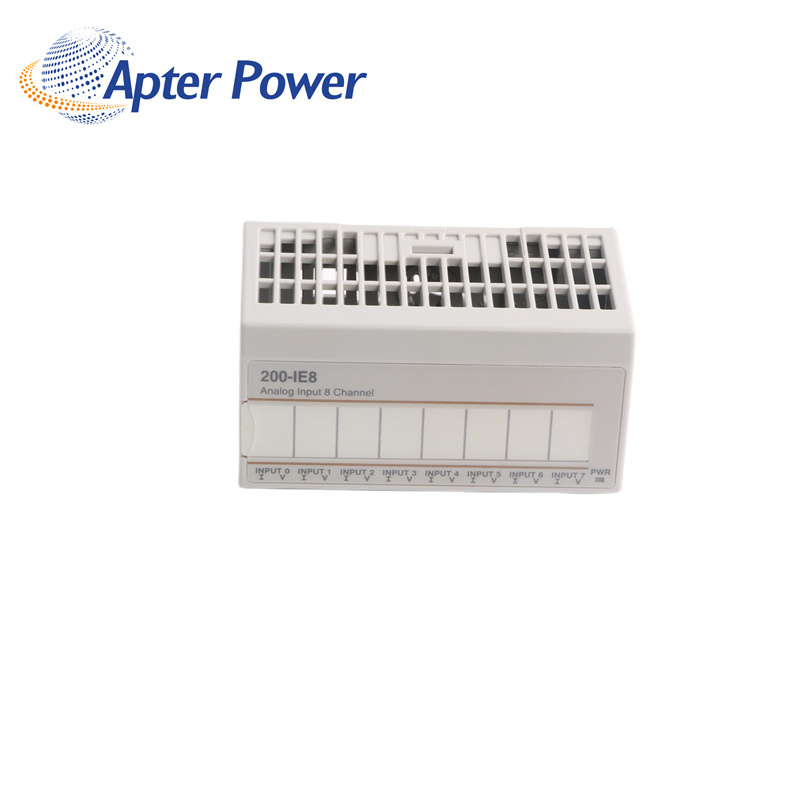

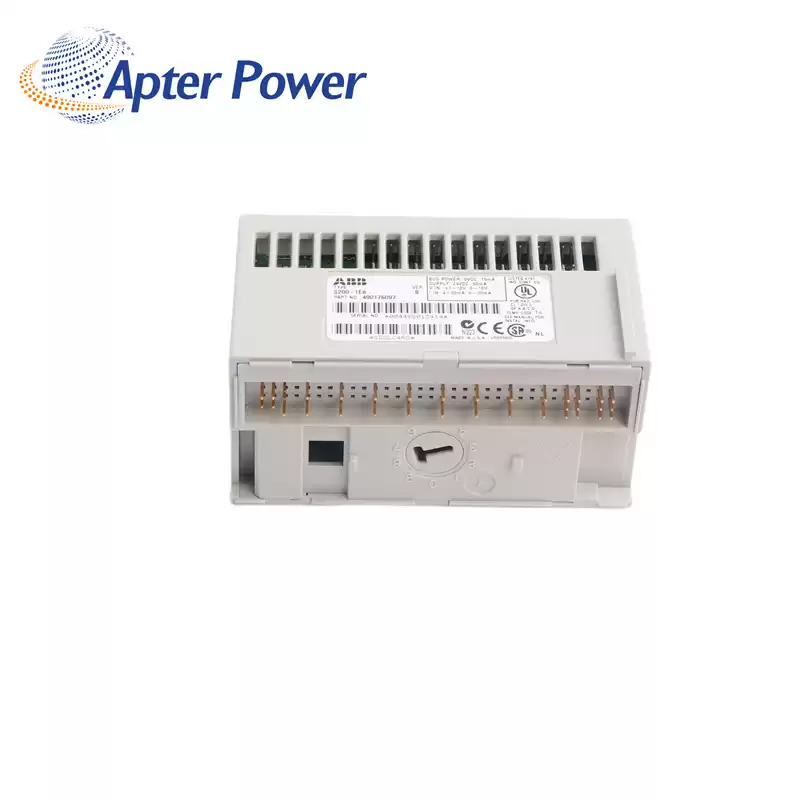

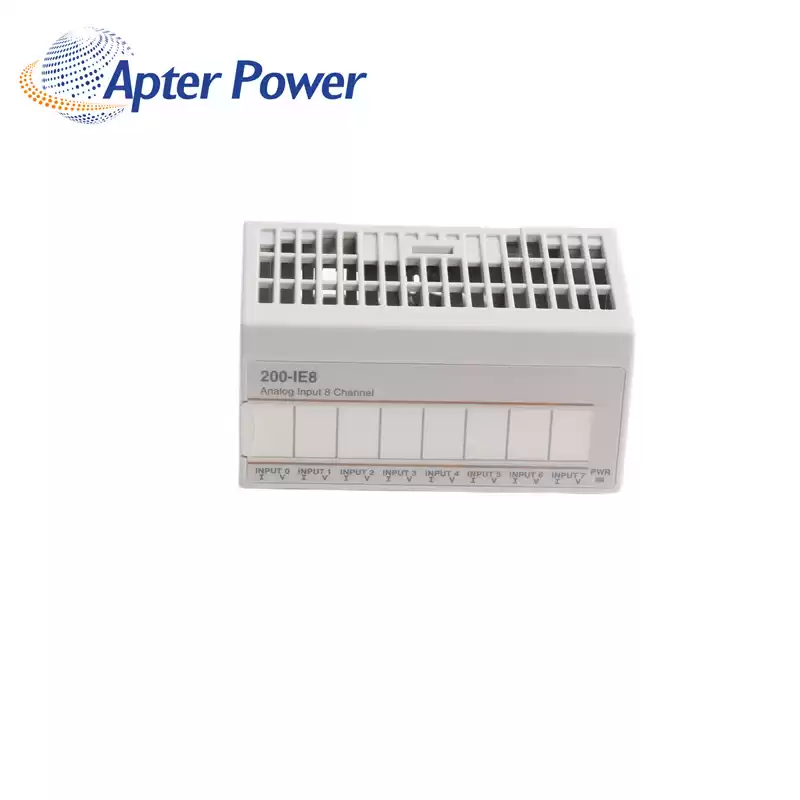

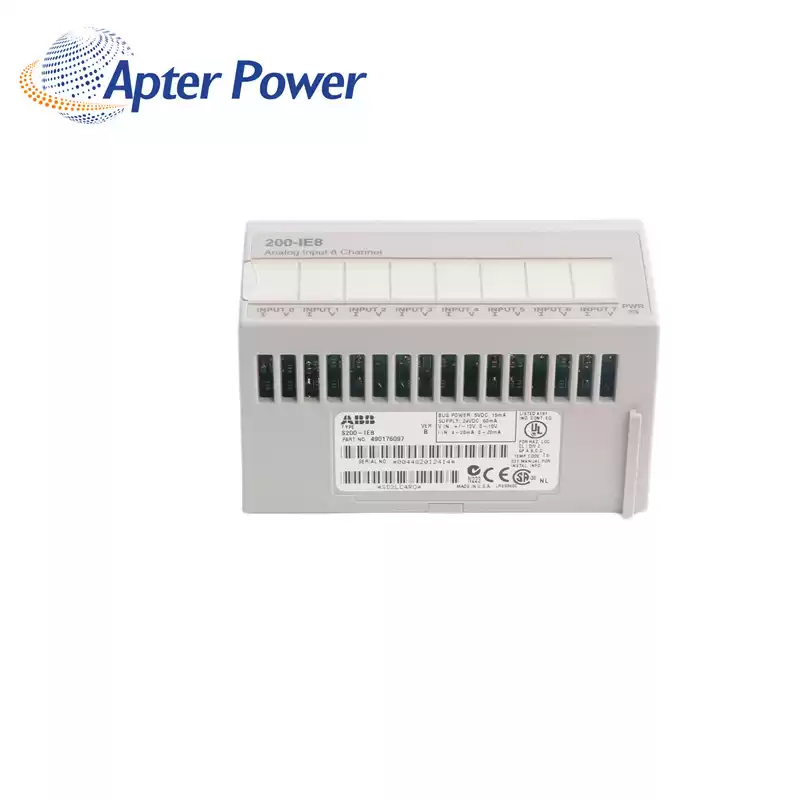

The S200-IE8 is Analog Input Module.200-IE8 is an I/O unit for 8 analog input signals. The inputs are filtered and the unit
is galvanically insulated. The unit has 12 bit resolution. Each of the inputs can be
either a voltage (0–10 V DC, ± 10 V DC) or a current (0–20 mA, 4–20 mA) input.The 8 analog input signals are connected to the unit via the screw terminals on the
terminal base unit.
The inputs are as a group of eight galvanically isolated from the serial bus by
optocouplers and the 8 inputs are single ended.Selection of voltage or current is made on the terminal base unit for each input. It is
possible to connect either voltage or current to the input but not both
simultaneously. Selection must also be set by the programming software.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
