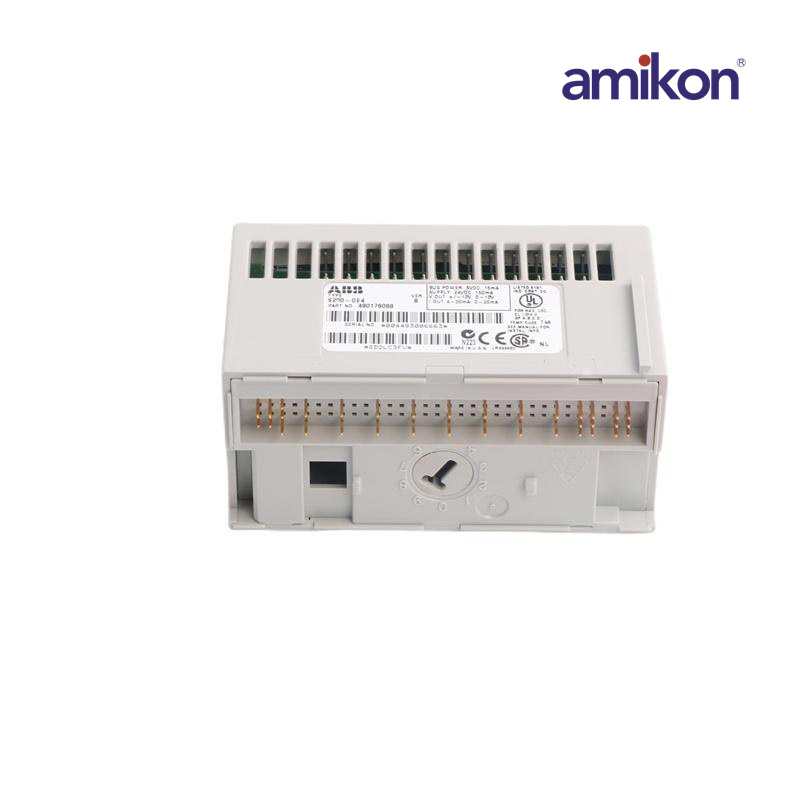

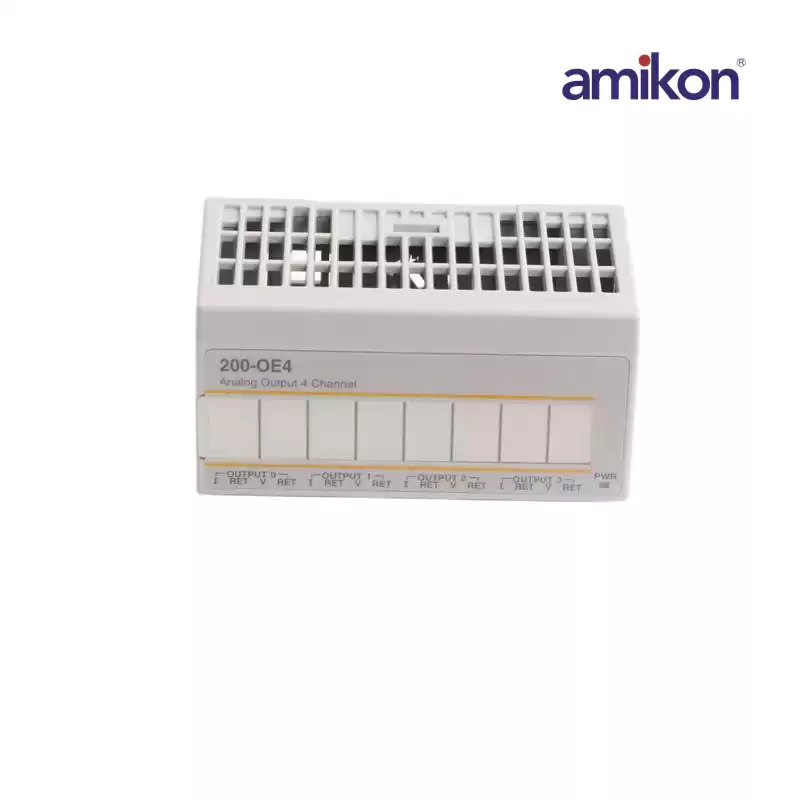

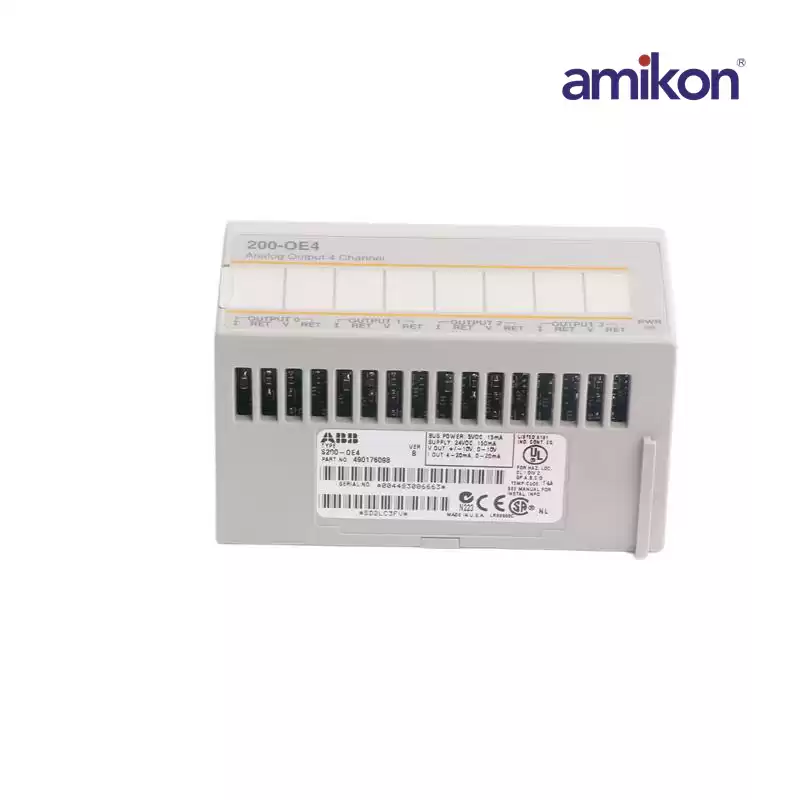

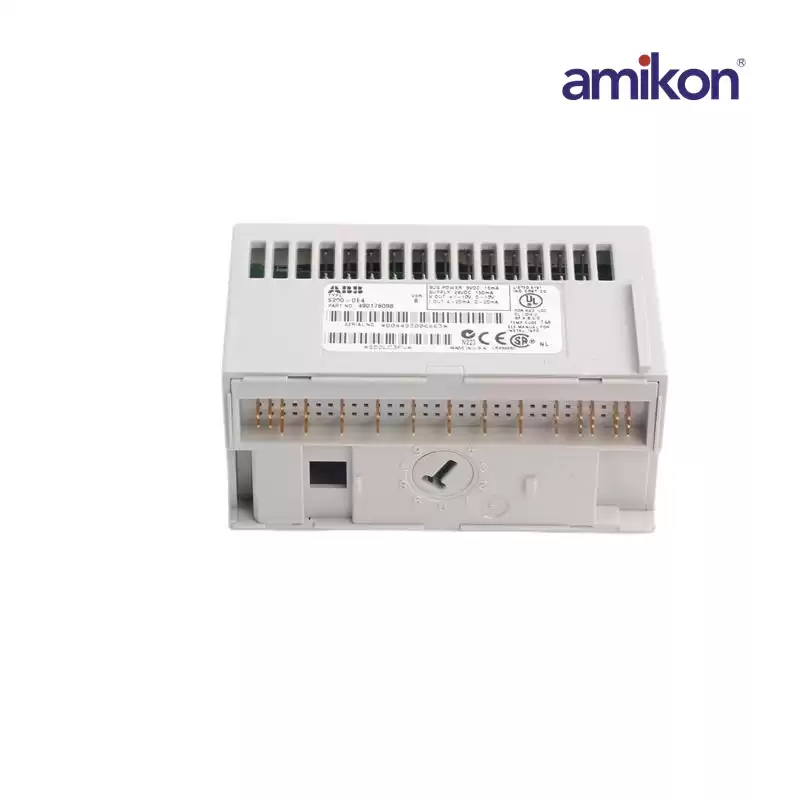

S200-OE4 Analog Output Module
|
|
Weight: 0.1 kg
|
Dimension: 9.3cmX5.4cmX4.8cm
|
|
Product Name: Analog Output Module
|
Product Package: Original Package
|
|
I/O unit for four analog output signals. The unit has 12-bit resolution and each of the outputs can be either a voltage (0–10 V DC, ±10 V DC) or a current (0-20 mA, 4–20 mA) output. Selection of voltage or current is made both by the programming software and by the output on the terminal base unit.One green LED indicates power on/off.The outputs are, as a group of four, galvanically isolated from the system by optocouplers.An additional power supply is required.The S200 I/O system features:Replacement under system power CE and UL approvement Software configurable function Mechanical coding for safe replacement Safety function on outputs in remote configuration Variety of termination options.The same I/O units in central andremote configurations Compatible with I/O 200C.
|
|
