Product Description:

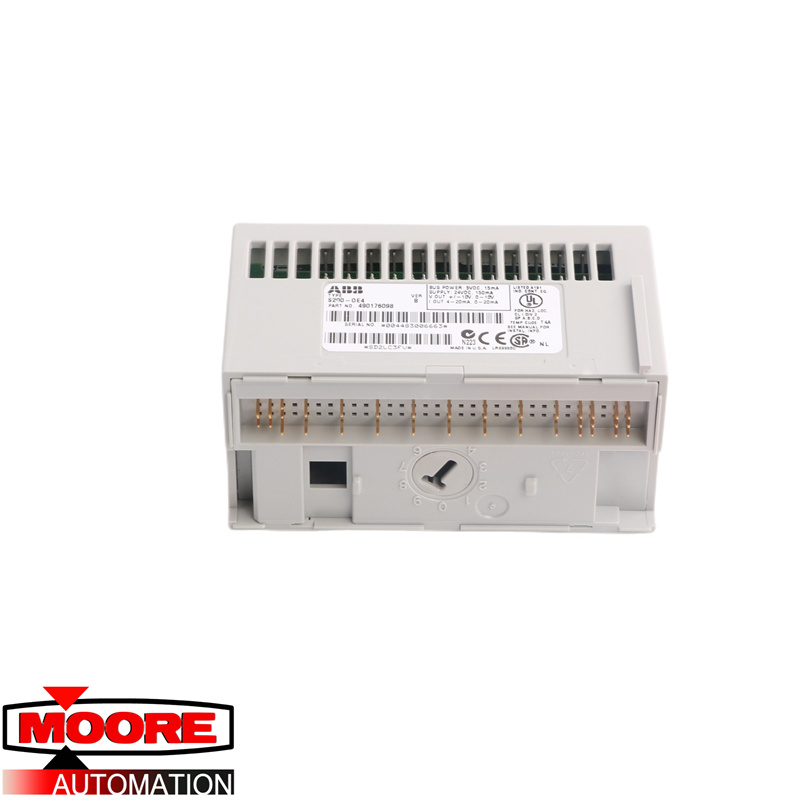

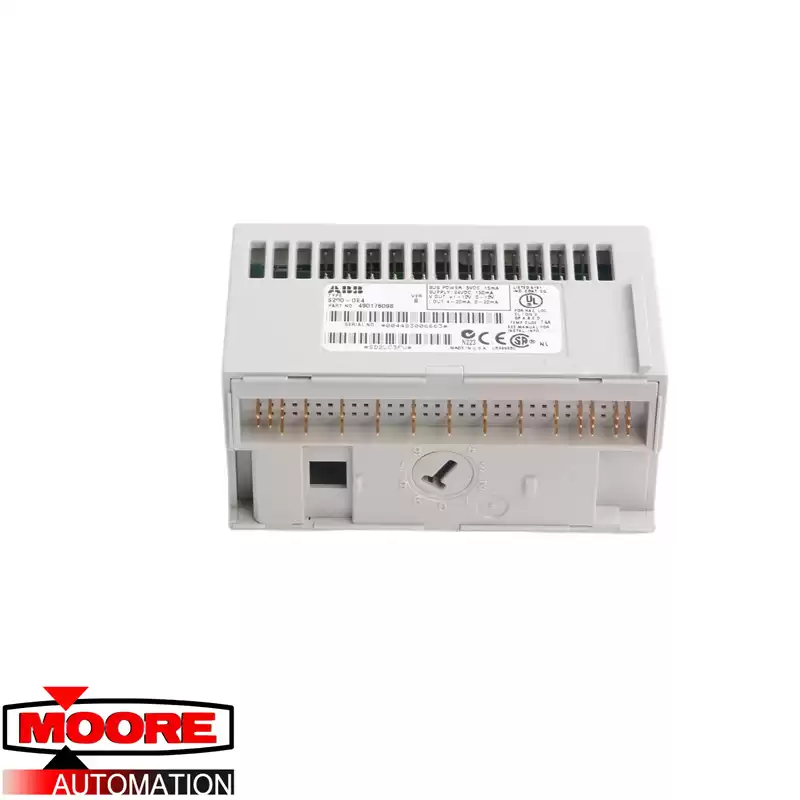

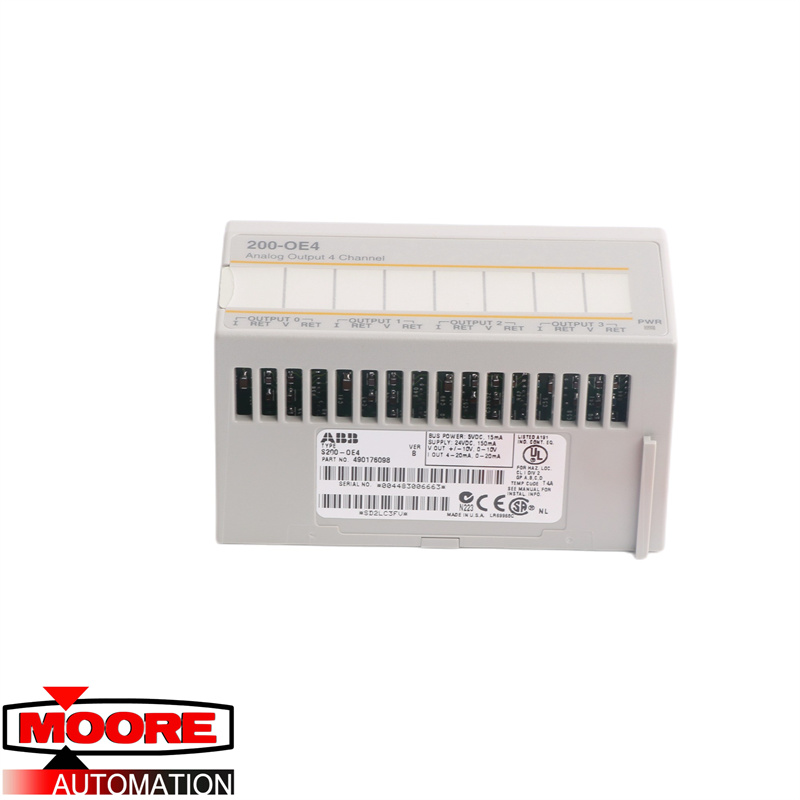

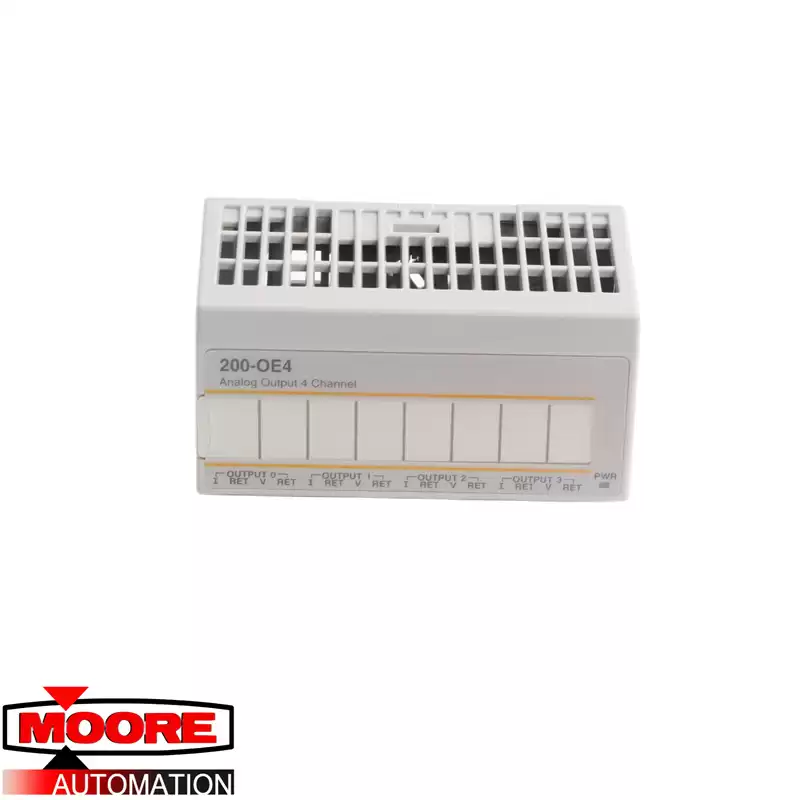

I/O unit for four analog output signals. The unit
has 12-bit resolution and each of the outputs can
be either a voltage (0–10 V DC, ±10 V DC) or a
current (0–20 mA, 4–20 mA) output. Selection
of voltage or current is made both by the
programming software and by the output on the
terminal base unit.
One green LED indicates power on/off.
The outputs are, as a group of four, galvanically
isolated from the system by optocouplers.
An additional power supply is required.
The S200 I/O System features:
● Replacement under system power
● CE and UL approvement
● Software configurable function
● Mechanical coding for safe replacement
● Safety function on outputs in remote
configuration
● Variety of termination options
● The same I/O units in central and remote
configurations
● Compatible with S200L I/O
