Product Description:

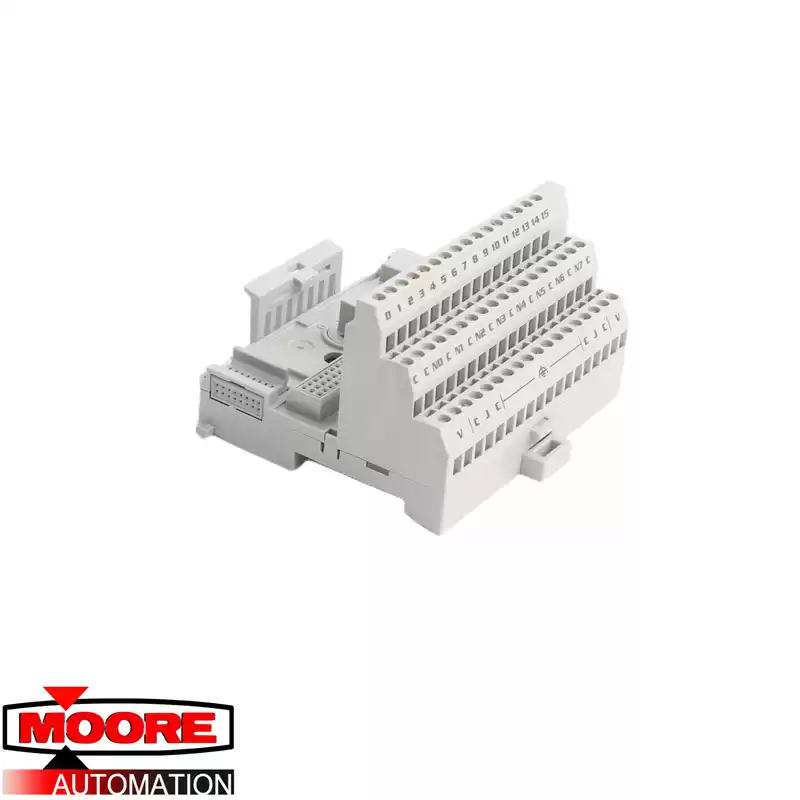

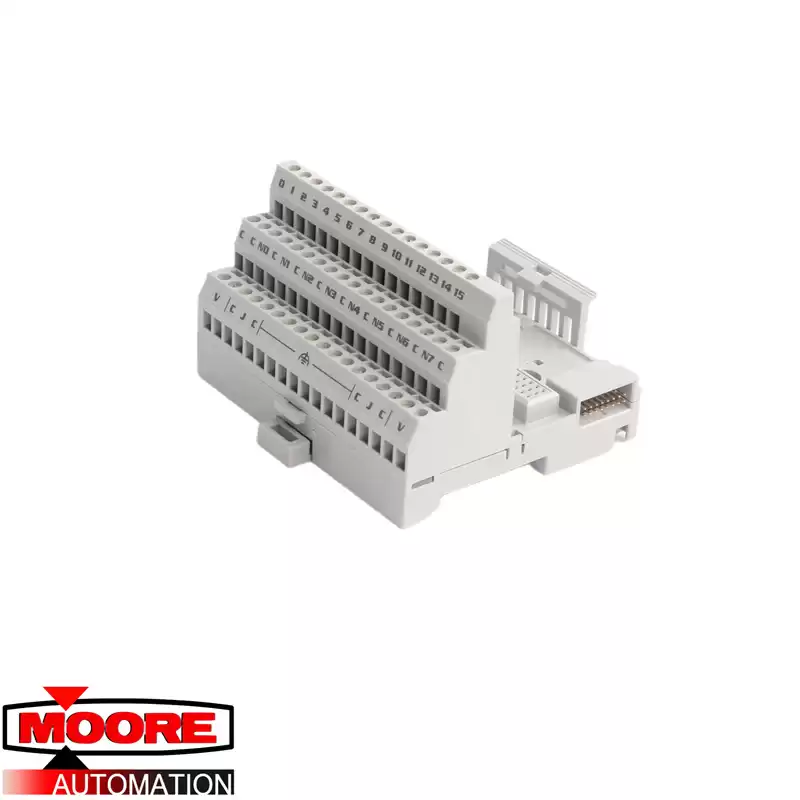

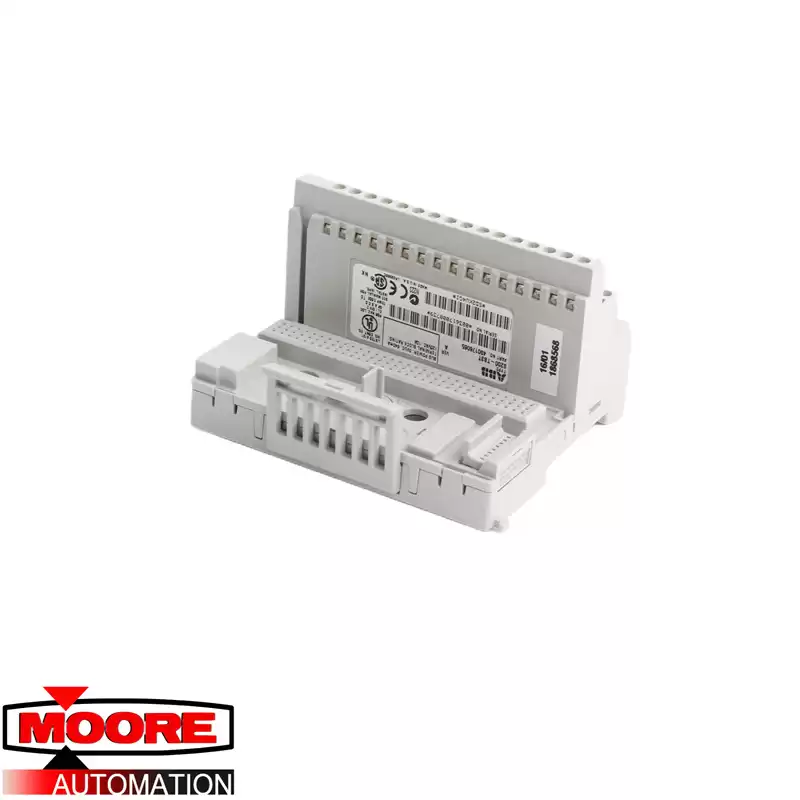

200-TB3 is designed to connect an I/O unit and
a number of two- or three-wire devices to the
I/O system.
200-TB3 is equipped with three screw terminal
rows. The upper row has sixteen terminals for
input/output signals.
The middle row consists of eighteen 0 V DC
screw terminals, which are internally connected.
The rightmost and leftmost screw terminals are
for connection to the power supply.
The lower row consists of eighteen +24 V DC
screw terminals, internally connected and
intended for power supply to sensors. The
leftmost and rightmost terminals are for
connection to the power supply.
