Product Description:

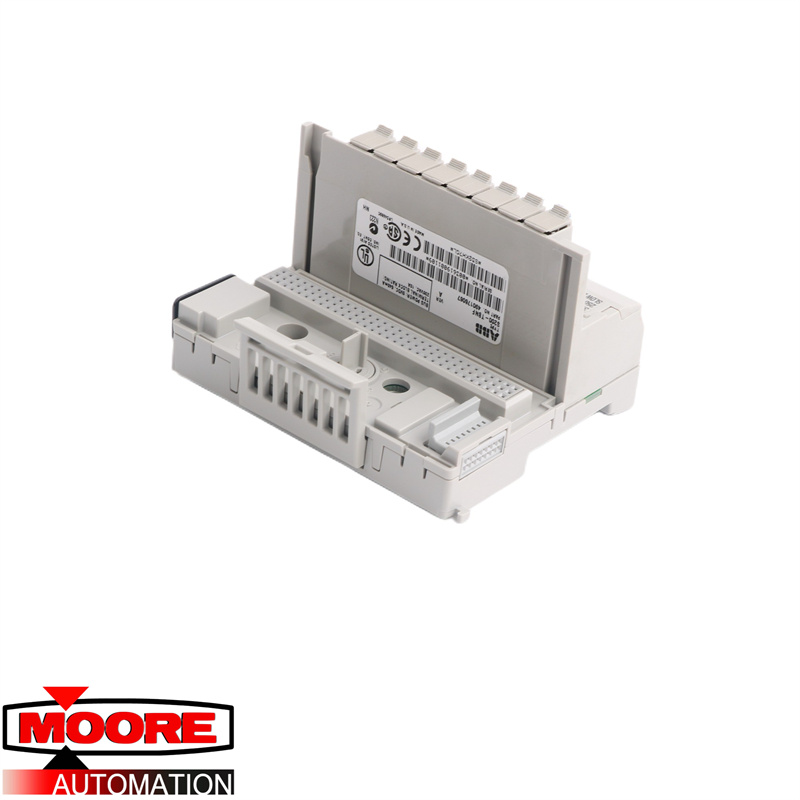

200-TBNF is intended for connecting an I/O
unit and a number of devices to the I/O system.
Screw terminals on 200-TBNF are well insulated
and can be used for connection of units which
allows both +24 V DC and 230 V AC
connections.
This unit is primarily for units with eight
inputs or outputs.

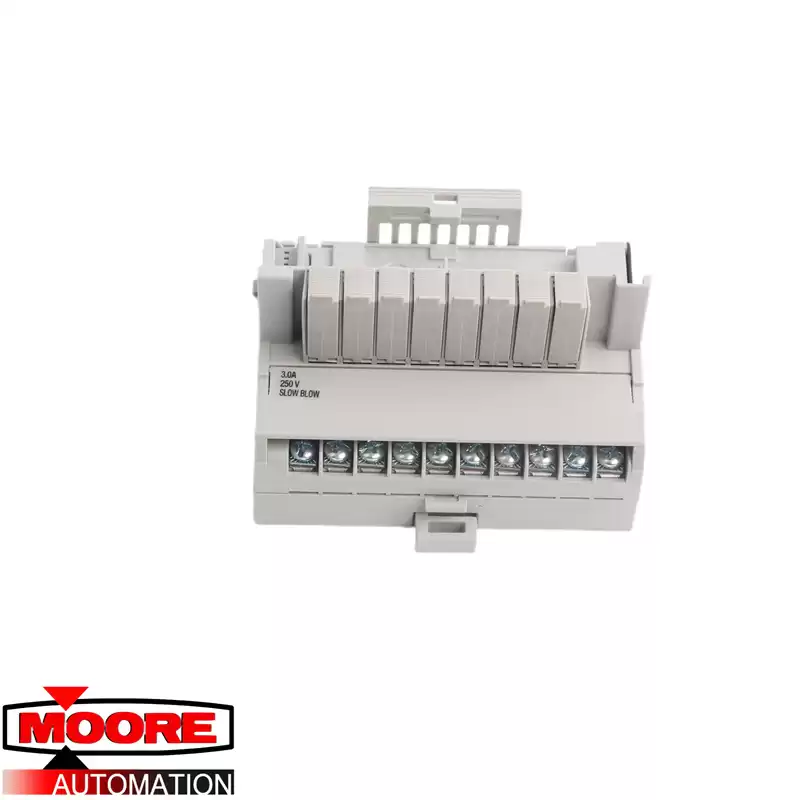

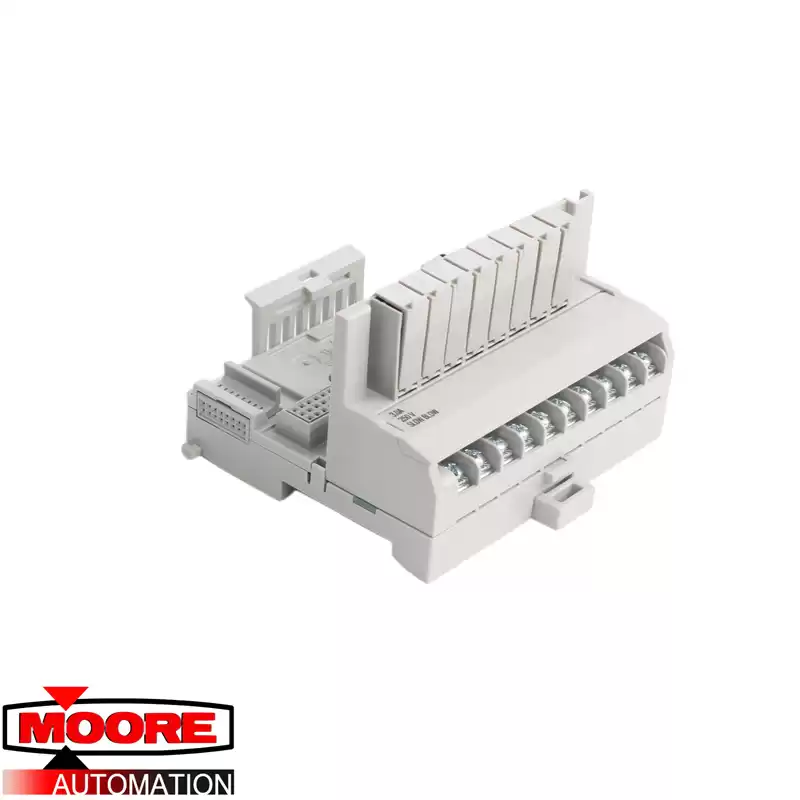

200-TBNF is equipped with two screw
terminal rows. The upper row has ten screw
terminals, where terminal 16 and 33 are
dedicated for 0 V DC and even numbered
terminals for input/output signals from a device.
This row is equipped with holders for eight fuses
connected in series to the eight channels on the
top row. The unit is delivered with 3 A fuses,
primarily intended for 200-OW8.
The lower row consists of ten screw terminals,
where terminals 34 and 51 are for +24 V DC
connection and odd numbered terminals for
input/output signals from a device.
