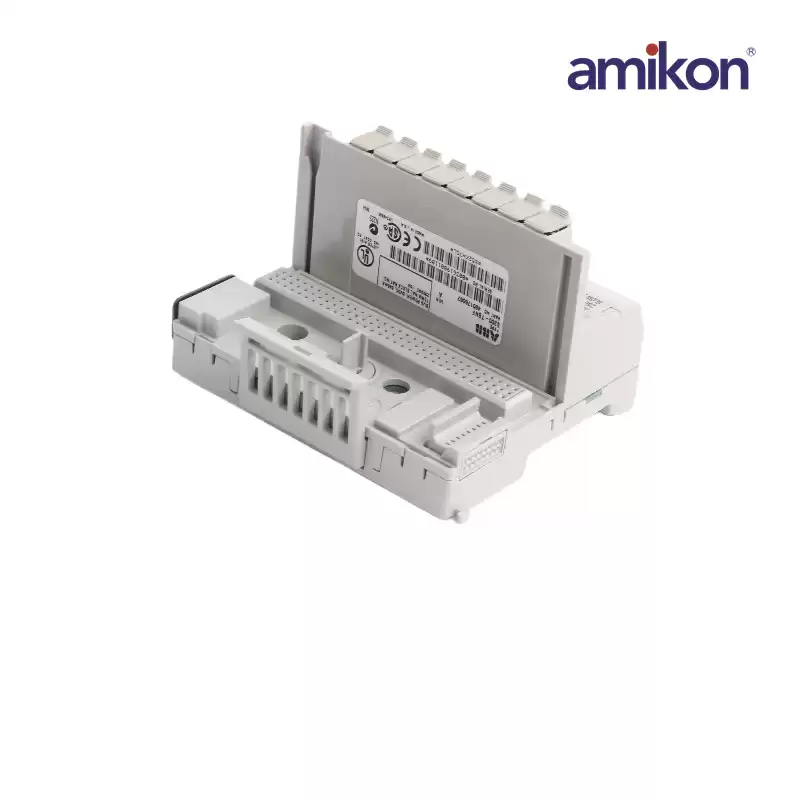

S200-TBNF S200TBNF Fused Terminal Base
|
|
Weight:0.18KG
|
Dimension: 9.3cmx9.5cmx6cm
|
|
Product Name: Fused Terminal Base
|
Product Package: Original Package
|
|

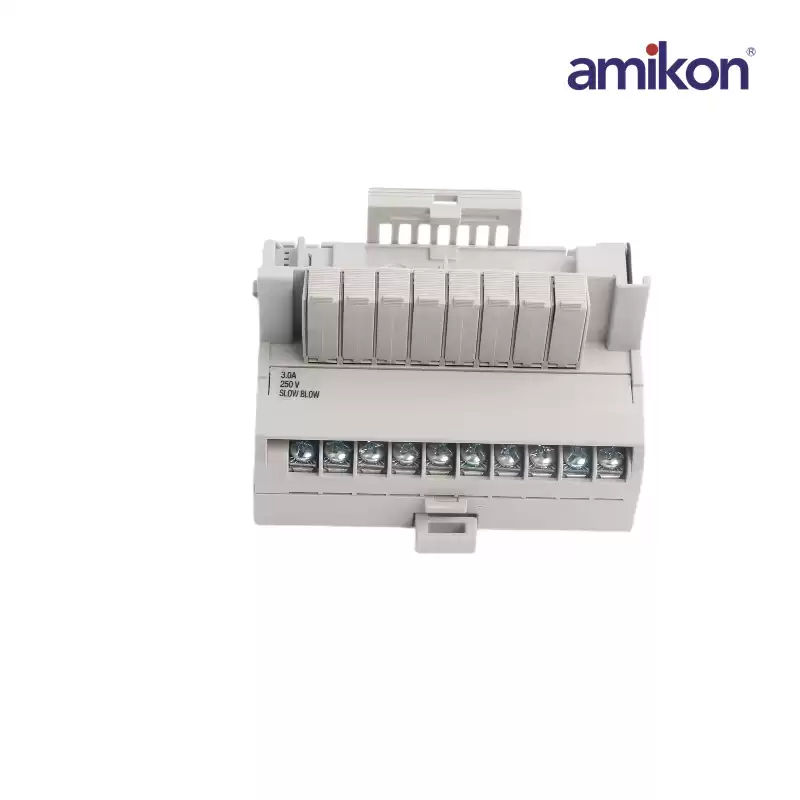

The S200-TBNF is Fused Terminal Base.This terminal base unit is intended for connecting an I/O unit and a number of devices to the I/O system. Screw terminals on 200-TBNF are well insulated and can be used for connection of units which allows both +24 V DC and 230 V AC connections. 200-TBNF is equipped with holders for eight fuses connected in series with the eight channels on the top row.
The upper row has 10 screw terminals, where terminal 16 and 33 are dedicated for 0 V DC and even numbered terminals for input/output signals from a device. This row is secured by fuses.The lower row consists of 10 screw terminals, where 34 and 51 are for +24 V DC connection and odd numbered terminals for input/output signals from a device.
|
|
