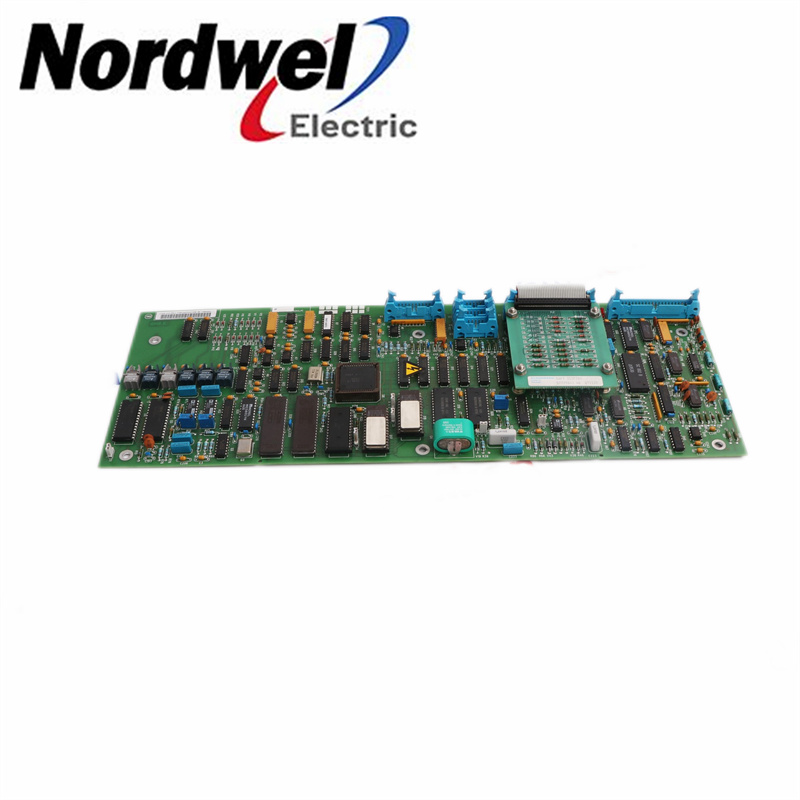

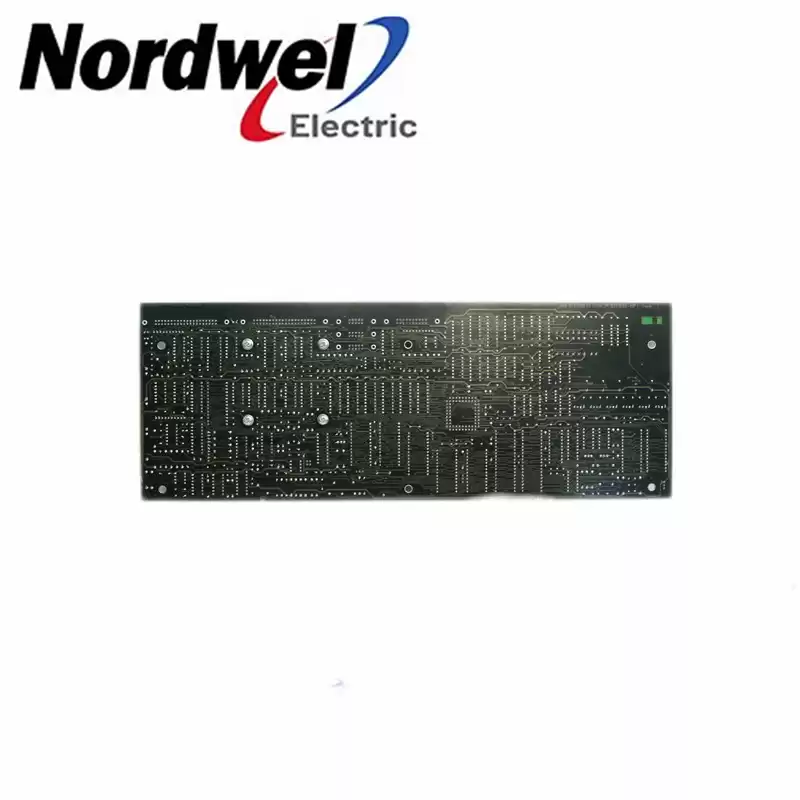

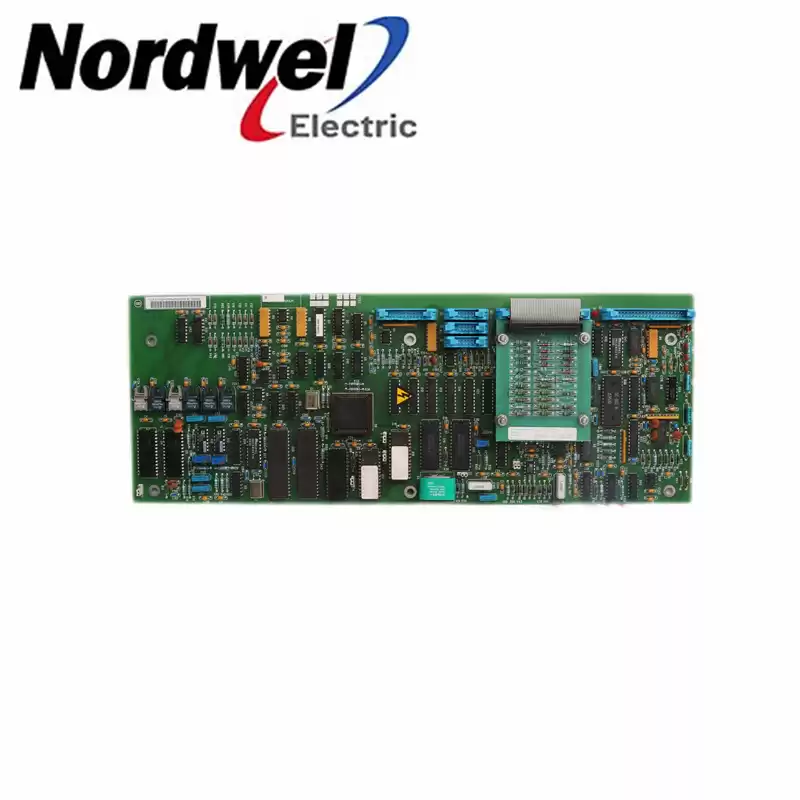

Original new and factory-sealed SAFT103CONB SAFT315F380 in stock!!!
1. Insert the mounting screws that were previously set aside and tighten.
2. Reconnect DC then AC power and the PCD should power up normally.
3. Once the new module is installed, you may get the followving prompt on the LCD:“Modules
have changed, Press key to update". If so, do the following:
a) Press the ENTER key. Prompt will appear: "Update Catalog number?"
b) Press the right arrow key to select "Yes" then press ENTER
c) The old style number will appear. Press the down arrow key once.
d) The new style number will appear. Press the down arrow key once.
e) Prompt will appear:“Confirm Update?" Press the right arrow key to select "Yes".
f) A password prompt will appear. Press ENTER to proceed, as the default password is 4 spaces.
g) After the modules have been updated, reset the PCD by pressing the reset button on the rear of the
CPU module. The Self Check LED at the right hand side center of the faceplate should now be
GREEN. If it is RED call ABB for assistance.
h) All settings on the PCD are stored in the CPU card. Therefore, after installing the new CPU card,
the desired protection setting will need to be reprogrammed into the unit.
