SDCS-COM-5 3BSE006567R1
ABB Bailey Drives Module
-------------------------------------------------------------
|
Origin
|
Sweden
|
|
Status
|
Brand New In Stock
|
|
Shipment
|
From Xiamen, China to Worldwide
|
|
Year of Production
|
2020-2022 available
|
-------------------------------------------------------------

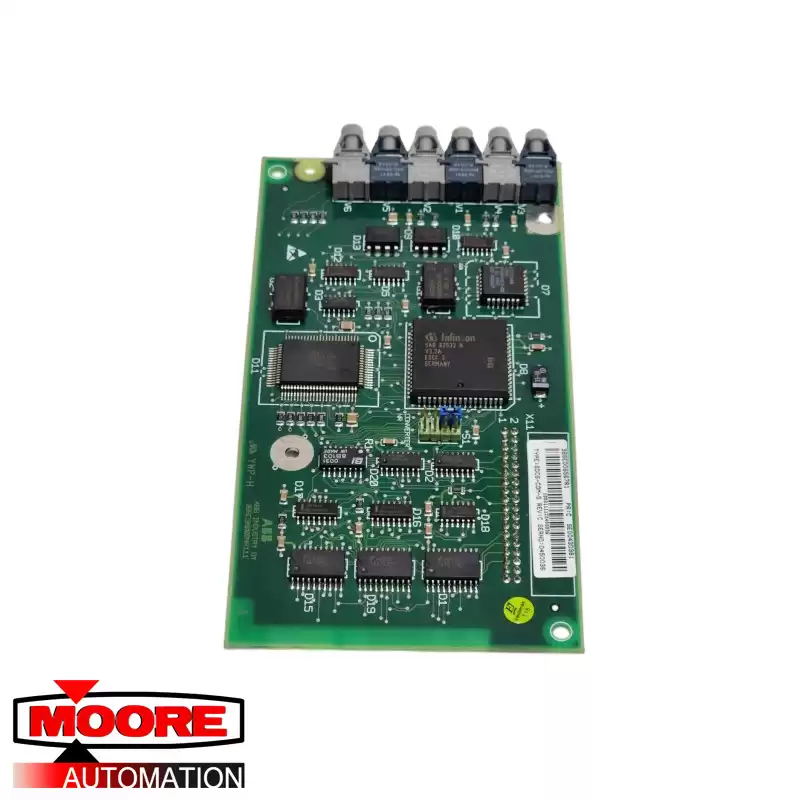

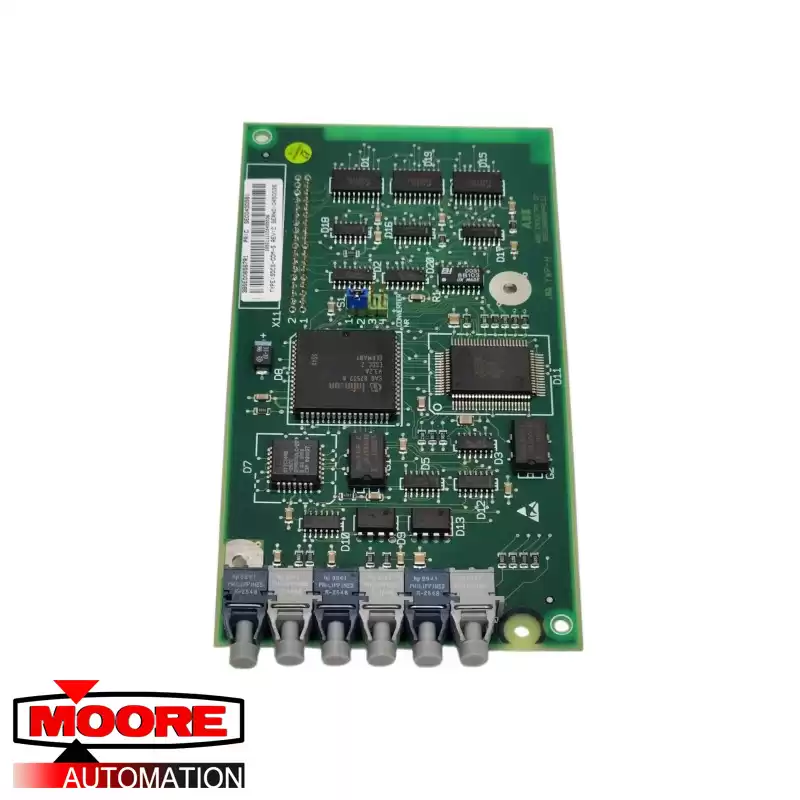

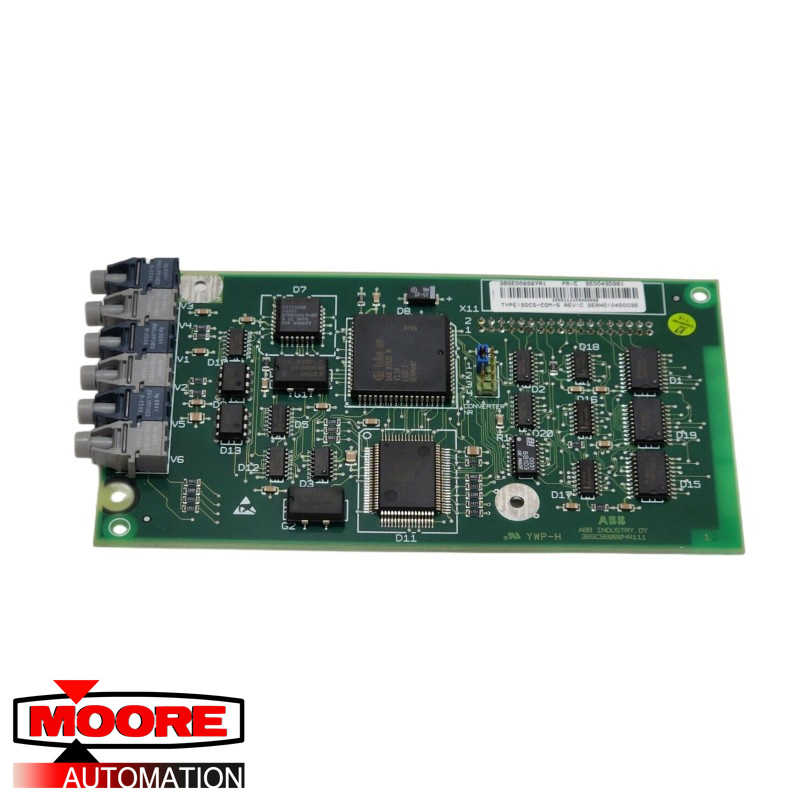

Description: This board is used for communications to
DCS 500B converter modules equipped with software 21.xxx for commissioning and maintenance
purposes. It consists of 3 different communication
channels. All RxD channels (receiver) have blue
color, all TxD channels (transmitter) have grey
color. If any connections should be made always
connect the same color with each other (plug and
socket) .
Channel 1 is a HDLC channel of 1.5 Mbits/s and is
used for the communication with a PC. Channel 2 cannot be used together with software version
S21.xxx.
Channel 3 is a DDCS channel of up to 4 Mbits/s
and is used if a serial link based on PROFIBUS
hardware, CS31 hardware or MODBUS hardware
should be realized. If one of these possibilities
should be used an adaptation module is needed.
This channel can only be used with software version S21.1xx (SDCS_CON-1). Please refer to the
documentation which is available for the link system needed.
