Product Description:

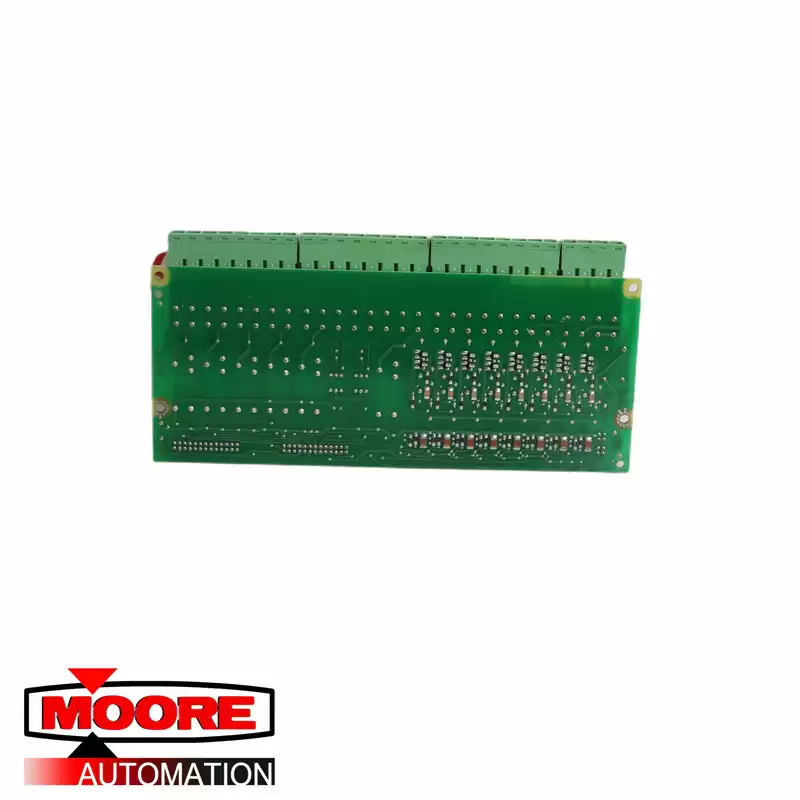

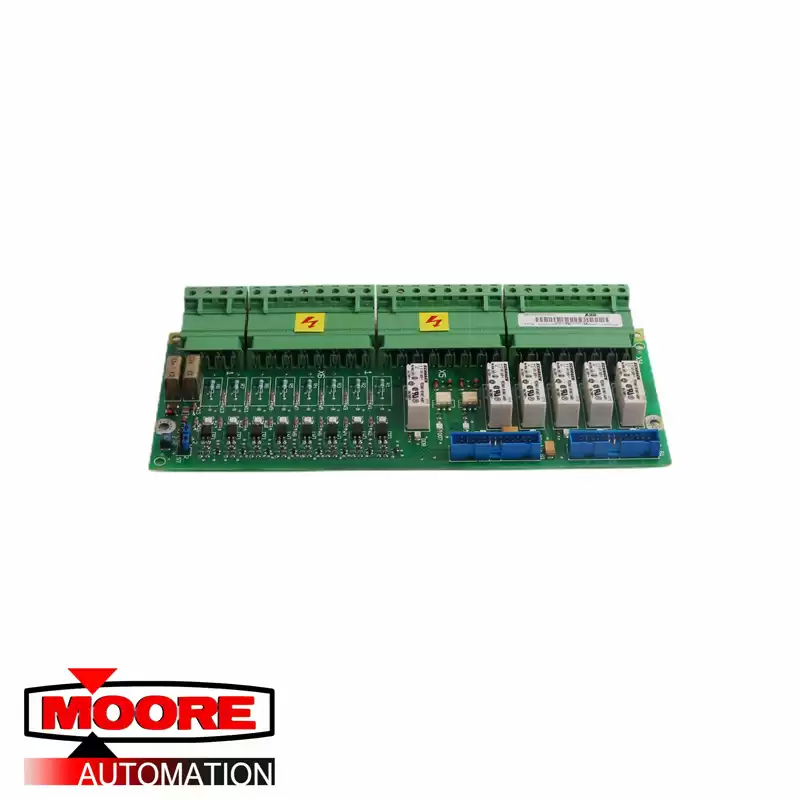

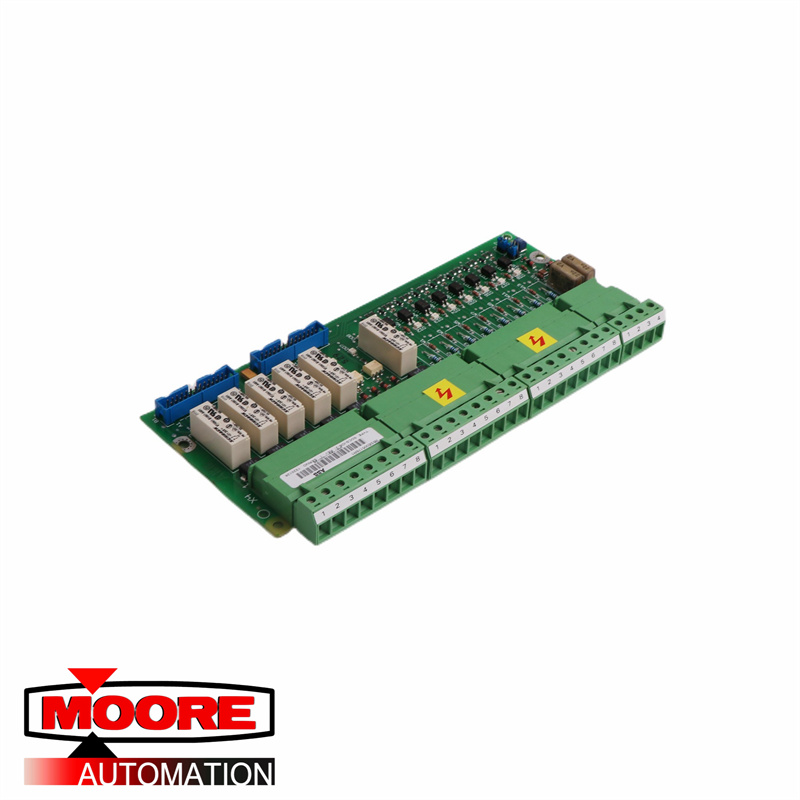

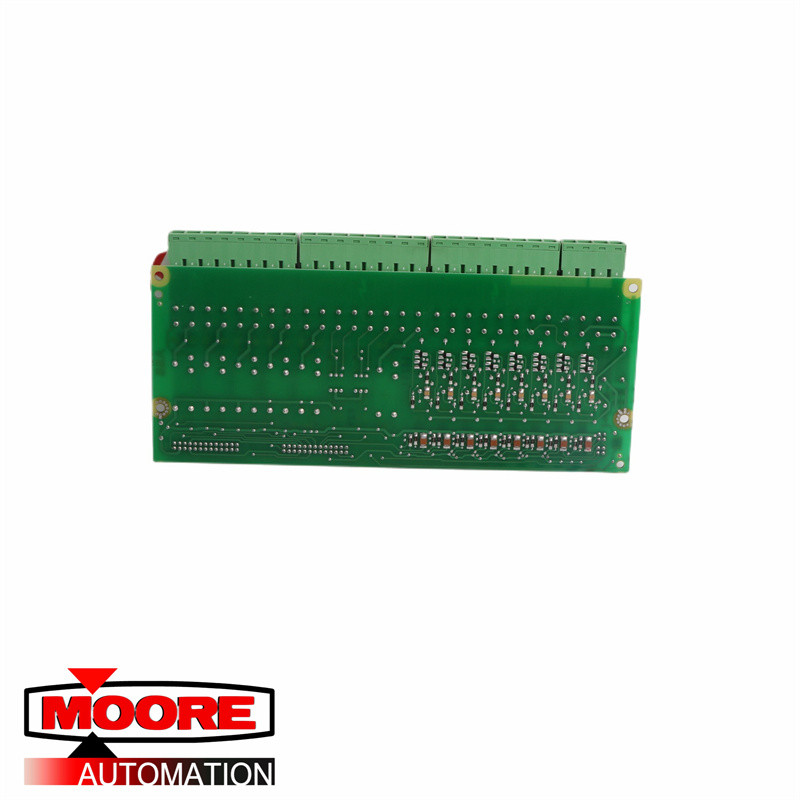

– SDCS-IOB-23 is the standard equipment for a DCS 800-A.
Control voltage for relay outputs max. 230 VAC
Digital input voltage 230 VAC
– Changing to SDCS-IOB-21 (option)
Control voltage for relay outputs max. 230 VAC
Digital input voltage 24 / 48 VDC
– Changing to SDCS-IOB-22 (option)
Control voltage for relay outputs max. 230 VAC
Digital input voltage 115 VAC.
The I/O connections in the DCS800 converter modules
are used for safety and other drive specific functions like
emergency stop and motor temperature measurement:
•
1 analog tachometer input
• 4 analog inputs
• 2 voltage
reference outputs
• 3 analog outputs
• 1 actual armature
current output
• 1 pulse encoder input (with IOB-3 isolated)
•
8 digital inputs
• 7 digital outputs
