Manufacturer/Brand： ABB
|
Product Package：Original Package
|
|
protocols available : MODBUS
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Dimensions:25x22.5x5.5cm
|
Weight:：0.82kg
|
|
Describe

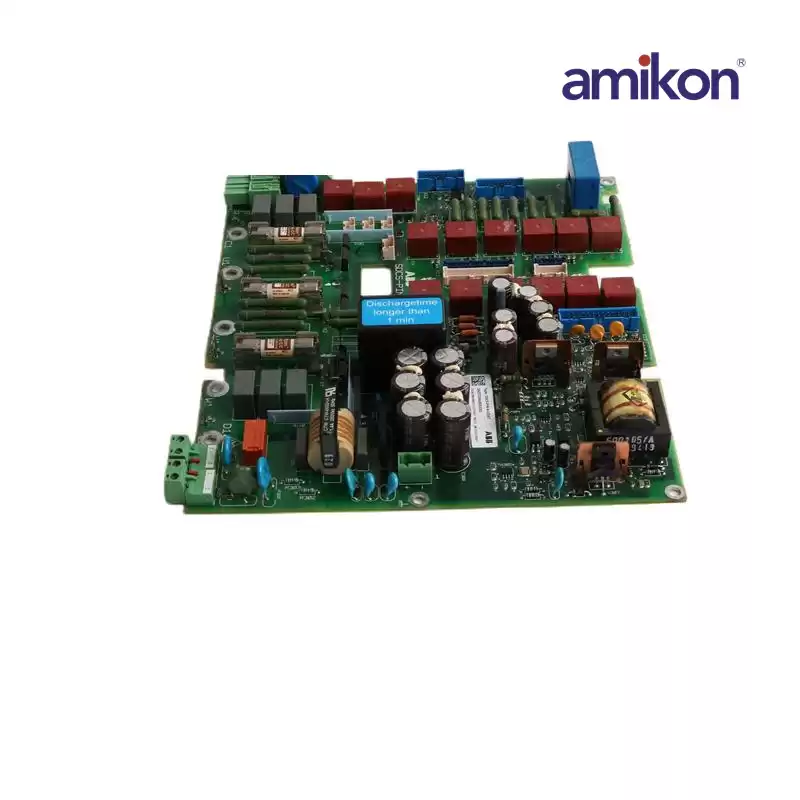

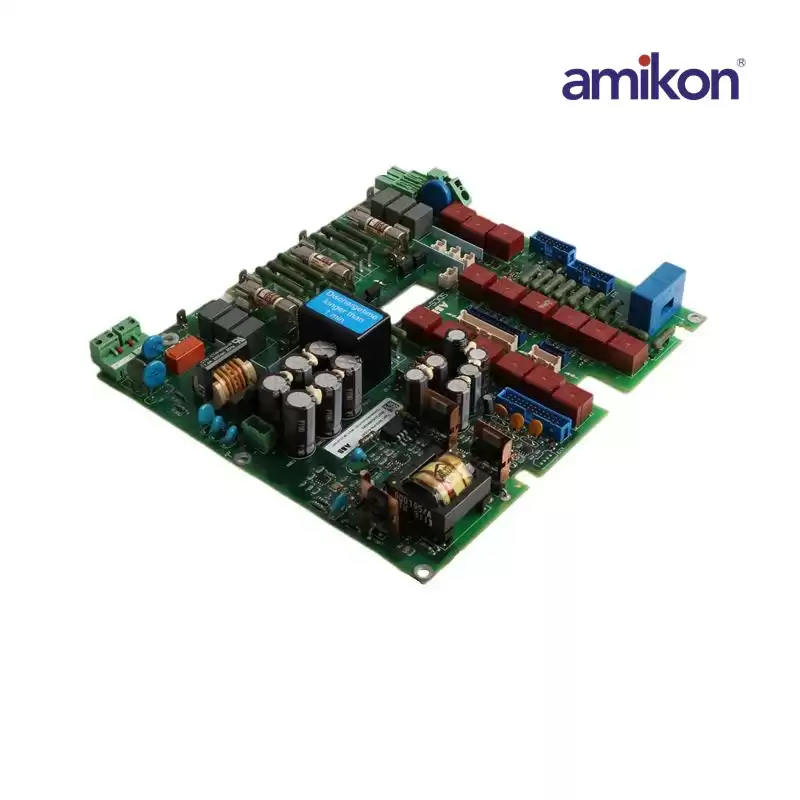

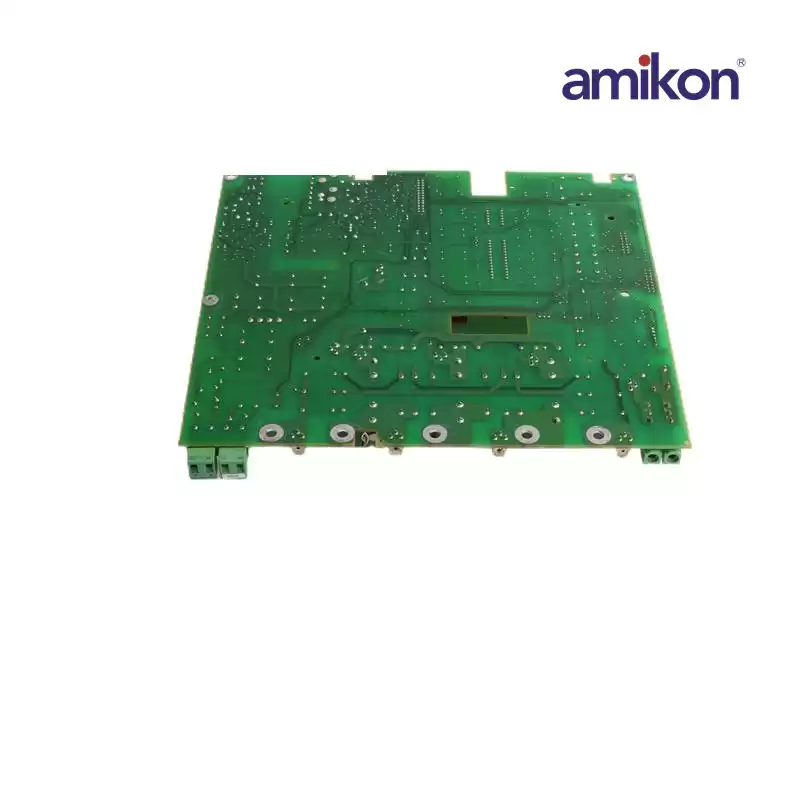

The SDCS-PIN-4 / SDCS-PIN-4b is designed for DCS800 converter modules sizes D1 to D4+(20 A - 1190 A).It has three different functions:1. The power supply for all small voltages of the whole drive and the connected options (D1 - D4+).2. Control of armature bridge including high ohmic measurement of DC- and AC voltage and aninterface for the current transformer measuring the armature current (D1 - D4+).3. Control of the OnBoard field exciter and field current measurement (D1 - D4).The board is connected to ground at points ( ) inside the module.The board is used for mains supply voltages from 230 V up to 525 V and 600 V.The DCS800 provides an adjustment for current and voltage measurement, burden resistorsettings and 2-Q or 4-Q operation by means of setting parameters in the firmware.
|
