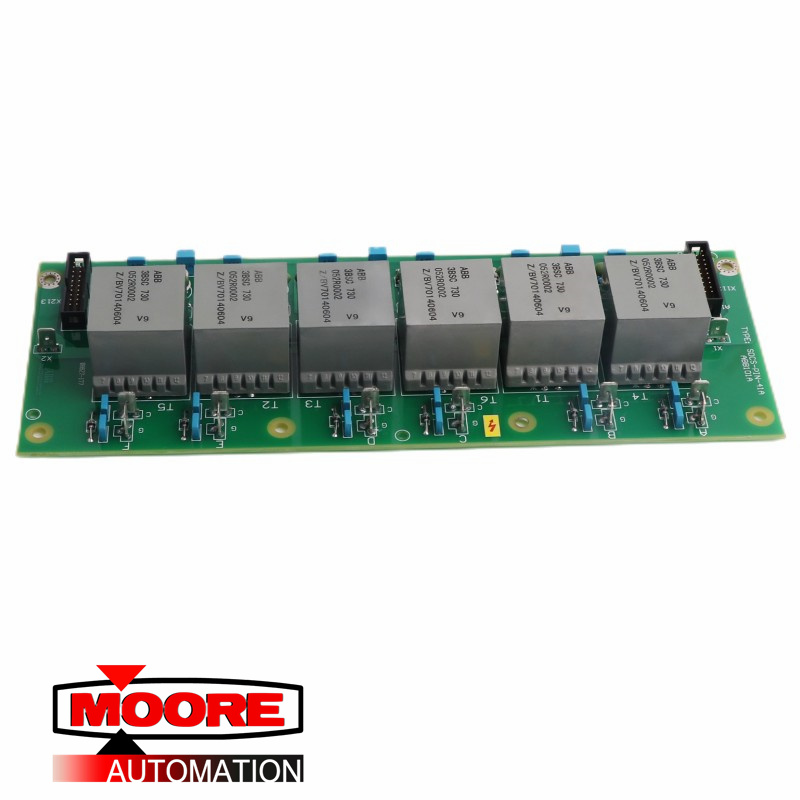

Product Description:
The Power Interface of DCS converter modules
model A5/A6/A7 and C4 from 900 A up to 5200 A
consists of two boards - the Measuring board
SDCS-PIN-51 and the Pulse transformer board
SCDS-PIN-41.
The following figures show the different connections
between the SDCS-PIN-41 and SDCS-PIN-51

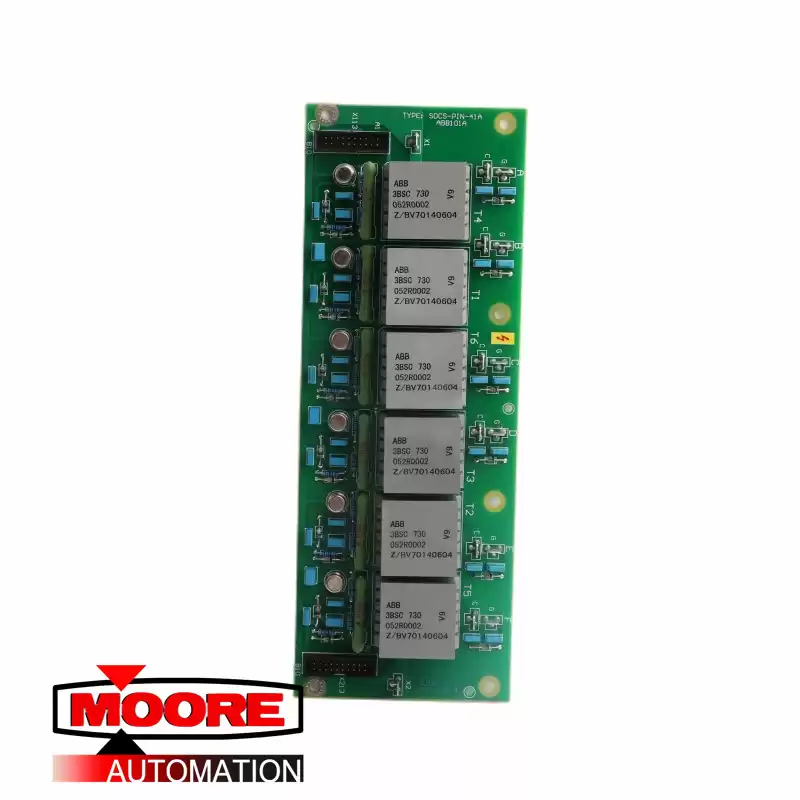

board depending on the application 2- or 4-quadrant and the construction type.Converters, delivered from 1998 on, will be
equipped with SDCS-PIN-41A, which is a full replacement for converters, already in use.
Converters delivered from middle 2005 will be
equipped with SDCS-PIN-48, which is a full replacement for converters already in use.
