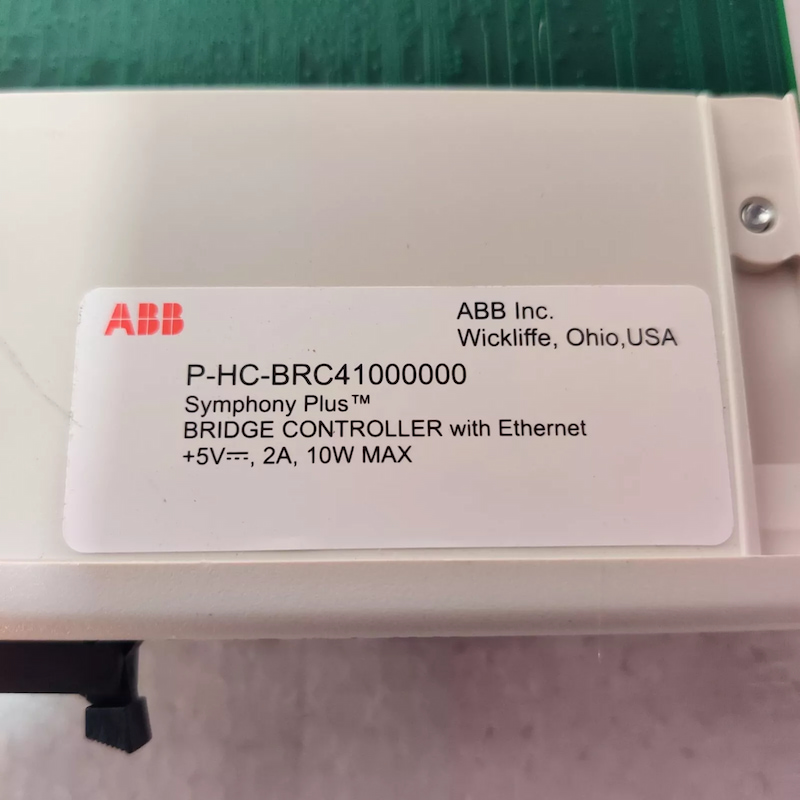

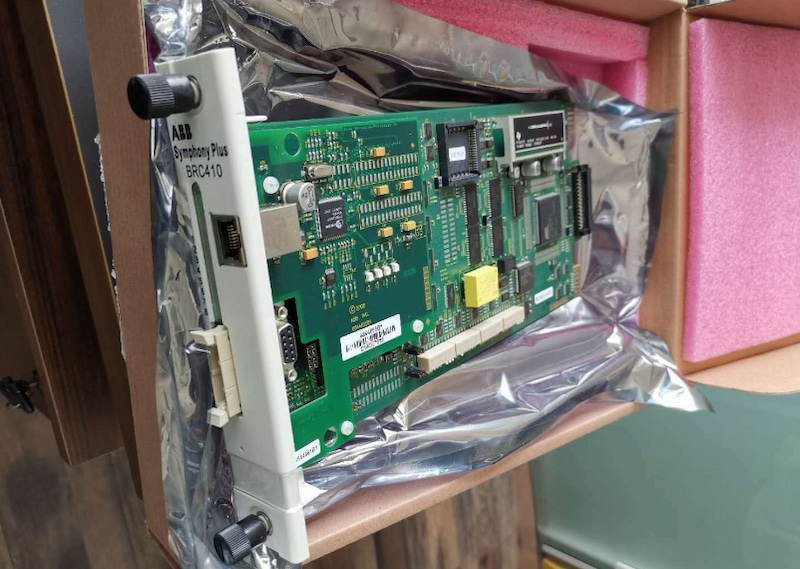

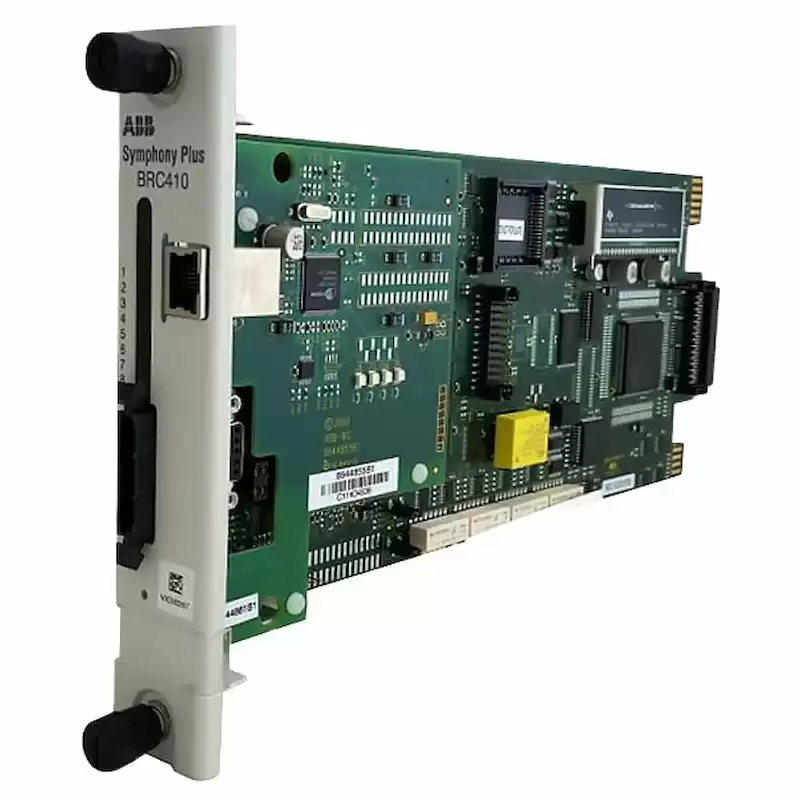

ABB SPBRC410 HR BRIDGE CONTROLLER W/ MODBUS TCP INTERFACE
The BRC410 controller seamlessly integrates intelligent field devices using the Modbus TCP communication protocol. This provides access to a wide range of ABB and third-party IEDs including transmitters, actuators, motor control centers and flame scanners.
Technical data
|
Processor
|
Industrial grade RISC type processor
|
|
Memory
|
8 MB DRAM, 2 MB NVRAM
|
|
Power requirements
|
Controller: 2 A at 5 VDC = 10 W
PBA 100 mA at 5 VDC = 0.5 W
|
|
Redundant controllers
|
4 MB per second (normal operation)
|
|
Programmability
|
Function codes, C, Batch 90, user defined
function codes (UDF)
|
|
Communications
|
|
|
- Console HMI & engineering station
|
INFI-Net exception reporting
|
|
- Controller peer-to-peer
|
Controlway
|
|
- HR Series I/O (Rack I/O)
|
I/O expander bus
|
|
- SD Series I/O
|
HN800 (via PBA800)
|
|
- S800 I/O via IOR810
|
HN800 (via PBA800)
|
|
- S800 I/O via IOR800
|
H-Net (via PBA200)
|
|
- Block I/O
|
H-Net (via PBA200)
|
|
Ports
|
2 RS-232-C or 1 RS-232-C and 1 RS-485
1 IISAC01 channel
1 10/100 Mbps Ethernet port
|
|
Ambient temperature
|
0 °C to 70 °C (32 °F to 158 °F)
|
|
BRC dimensions
|
35.56 mm width, 177.80 mm height, 298.45 mm depth
(1.40 in. width, 7.00 in. height, 11.75 in. depth)
|
|
PBA dimensions
|
31.08 mm width, 93.50 mm height, 130.50 mm depth
(1.22 in. width, 3.68 in. height, 5.14 in. depth)
|
