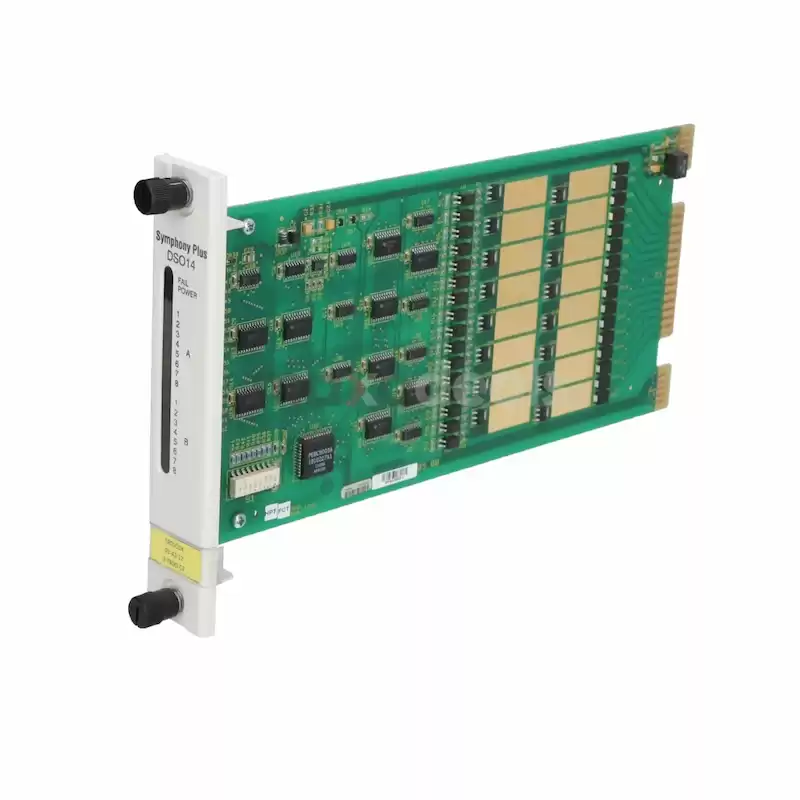

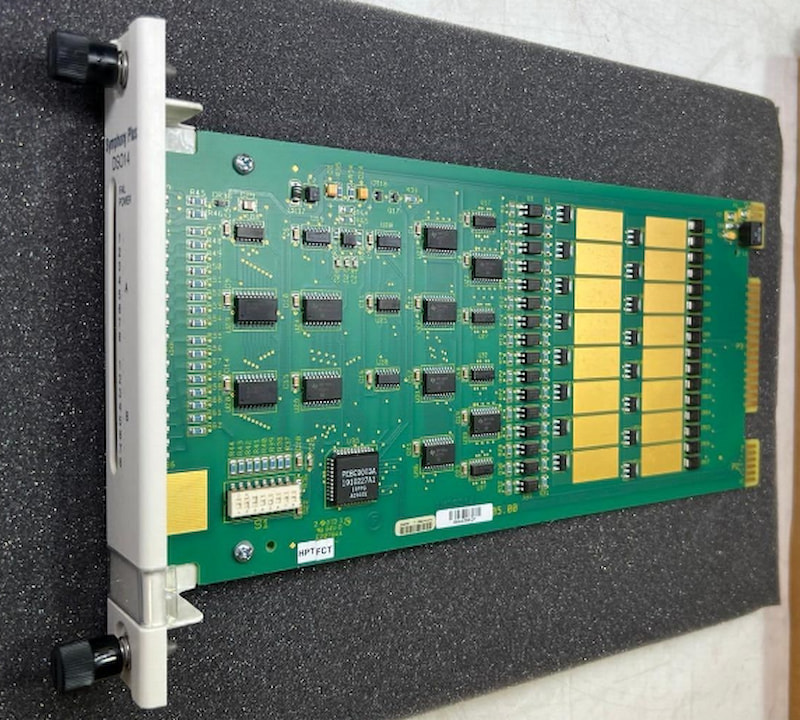

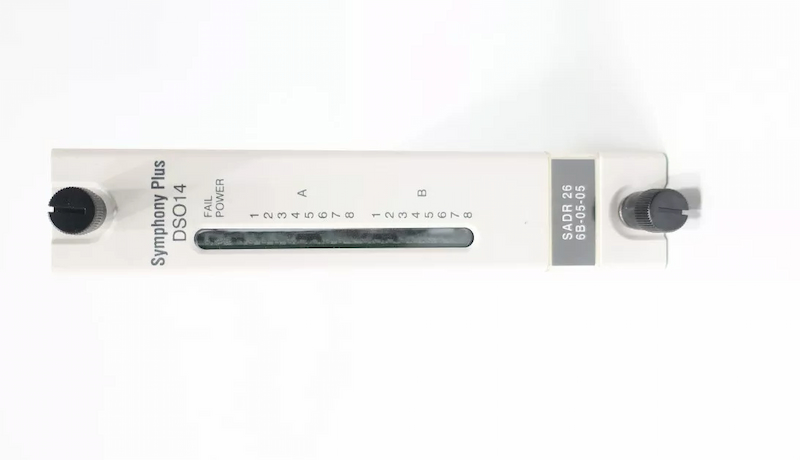

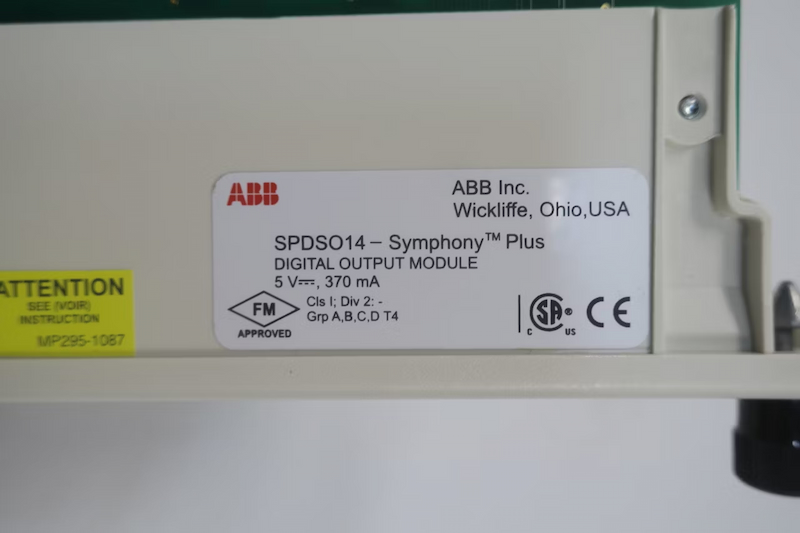

ABB SPDSO14 Digital Output Module
The SPDSO14 digital output module processes up to 16 digital open-collector control outputs for a Symphony Plus controller. Each channel is optically isolated and can switch 24 VDC at 250 mA and 48 VDC at 125mA. The module can cable-connect to solid state relays on the NTDO02 termination unit. Optionally, the module can also cable-connect to a relay assembly to drive electromechanical relays.
Technical data
| Manufacturer |
ABB |
| Part Number |
SPDSO14 |
| Product Catalog |
Symphony Plus |
| Description |
Digital Output Module |
|
Power requirements
|
5 VDC, ±5% at 275 mA typical
|
|
Digital output channels
|
16 optically isolated, independently configured,
open-collector channels
|
|
Load voltage
|
24 VDC at 250 mA max.
48 VDC at 125 mA max.
|
|
Ambient temperature
|
0 °C to 70 °C (32 °F to 158 °F)
|
|
Dimensions
|
35.56 mm width, 177.80 mm height, 298.45 mm depth
(1.40 in. width, 7.00 in. height, 11.75 in. depth)
|
| Weight |
0.7 kg |
