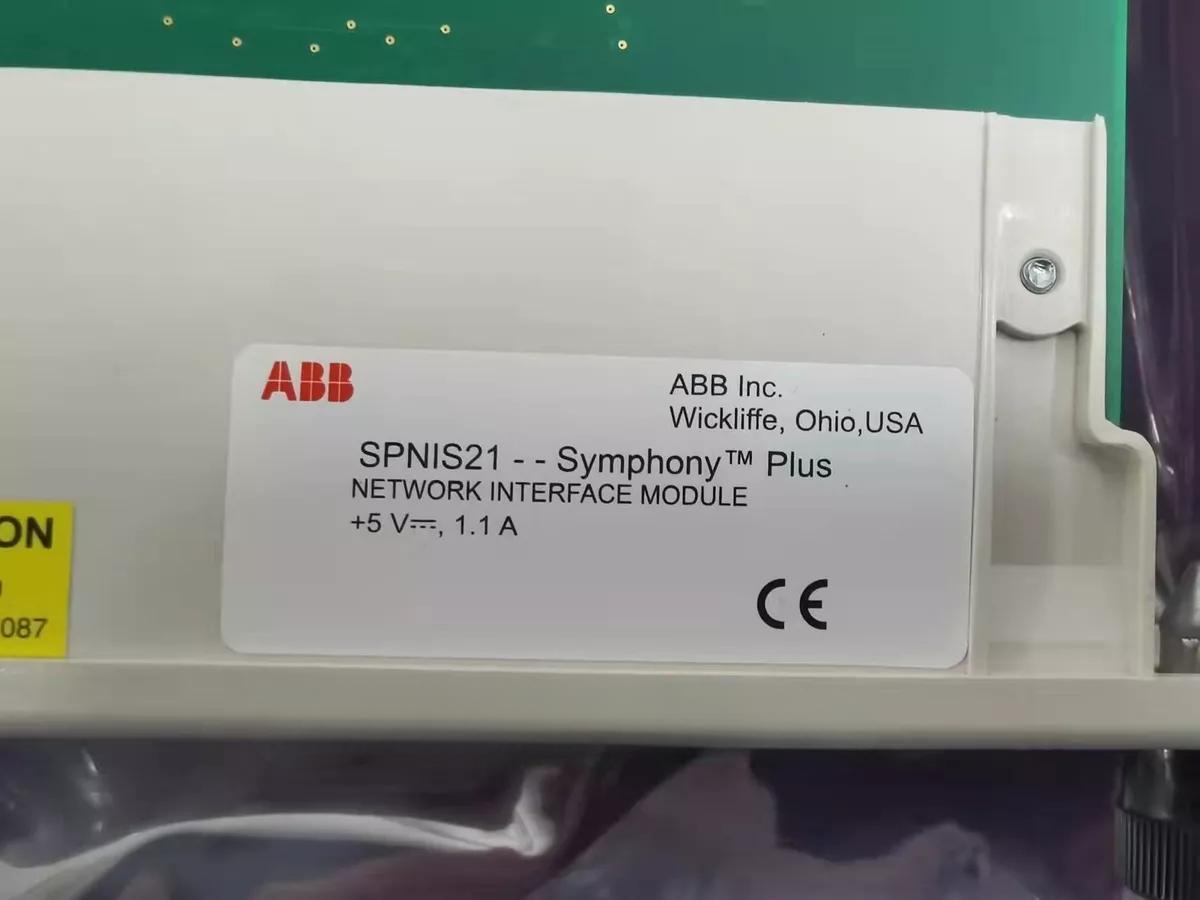

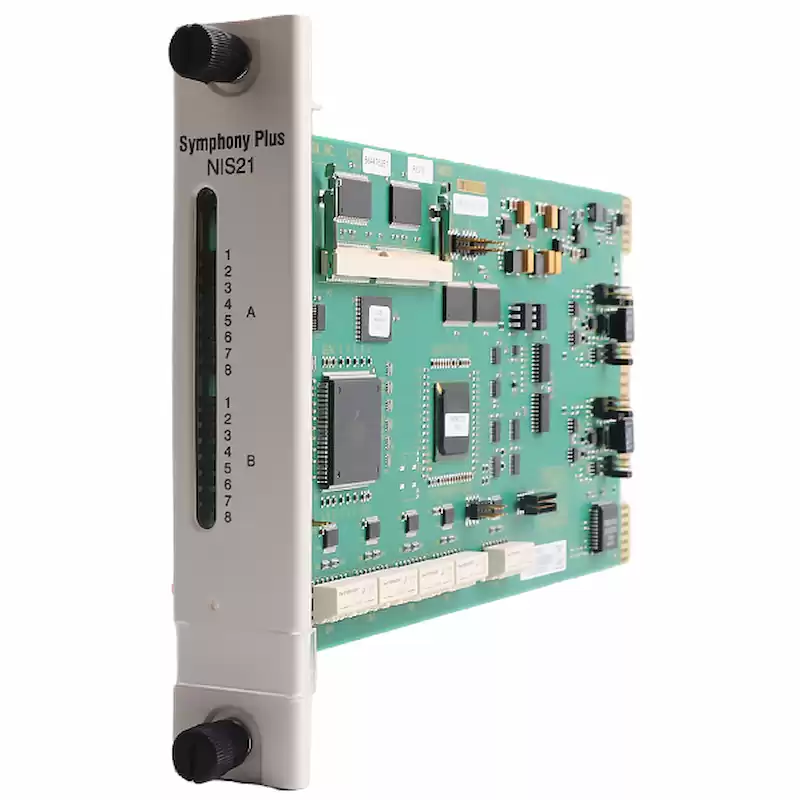

ABB SPNIS21 Network Interface Module
The ABB SPNIS21 network interface module is the front end of every Cnet communication interface. It is the intelligent link between nodes and the Cnet, allowing any node on the network to communicate with any other node. It works in conjunction with the SPNPM22 module.
Technical data
| Manufacturer |
ABB |
| Part Number |
SPNIS21 |
| Product Catalog |
Symphony Plus |
| Description |
Network Interface Module |
|
Power requirements
|
+5 VDC at 825 mA; 4.1 W typical
|
|
Communication rates
|
Cnet: 10 MHz or 2 MHz
|
|
System capability
|
Cnet: Over 62,000 nodes in the system; 250 Cnet-to-Cnet
interface nodes; 250 nodes on a single network in any combination of Cnet-to-HCU and Cnet-to-computer interfaces
|
|
Ambient temperature
|
0 °C to 70 °C (32 °F to 158 °F)
|
|
Dimensions
|
35.56 mm width, 177.80 mm height, 298.45 mm depth
(1.40 in. width, 7.00 in. height, 11.75 in. depth)
|
| Weight |
0.7 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
