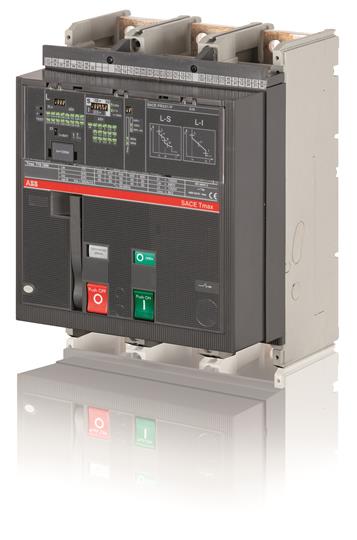

Product specific picture:
ABB T7S 1000 PR231/P LS/I In=1000A 3p F F M
1.T7S 1000 PR231/P LS/I In=1000A 3p F F M we sell is 100% New Original Factory packing in good condition and have been tested before they are shipped. We will try our best to avoid any quality problems.
2.We will offer the technical support by experienced staff, which have undergone rigorous testing and certification!
3.We offer 12 month warranty after receiving parcels. If there are some workmanship or material defects with the products, please contact us firstly, we will exchange it or offer other solutions for you to make a choice.
4.If you order more than one item, please contact us, we can offer further discounts for you. And if you find other suppliers offer cheaper prices for the same product, we are also willing to provide you with reference to their price,even further discounts.
E-mail: plcinfo@mooreplc.com
T7S 1000 PR231/P LS/I In=1000A 3p F F M
Manufacturer(s)
ABB
General Information
Extended Product Type:T7S 1000 PR231/P LS/I In=1000A 3p F F M
Product ID:1SDA062754R1
EAN:8015644653033
Catalog Description:T7S 1000 PR231/P LS/I In=1000A 3p F F M
Long Description:C.BREAKER TMAX T7S 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1000
Categories
Products » Low Voltage Products and Systems » Circuit Breakers » Moulded Case Circuit Breakers » Tmax T
Minimum Order Quantity:1 piece
Dimensions
Product Net Width:210 mm
Product Net Height:268 mm
Product Net Depth / Length:178 mm
Product Net Weight:11 kg
Container Information
Package Level 1 Units:1 piece
Package Level 1 Width:280 mm
Package Level 1 Height:350 mm
Package Level 1 Depth / Length:360 mm
Package Level 1 Gross Weight:12.5 kg
Package Level 1 EAN:8015644653033
Additional Information
Electrical Durability:2000 cycle
60 cycles per hour
Mechanical Durability:10000 cycle
60 cycles per hour
Number of Poles:3
Power Loss:at Rated Operating Conditions per Pole 30 W
Product Main Type:SACE Tmax T
Product Name:Moulded Case Circuit Breaker
Product Type:CB
Rated Current (In):Main Circuit 1000 A
Rated Impulse Withstand Voltage (Uimp):8 kV
Rated Insulation Voltage (Ui):1000 V
Rated Operational Voltage:690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current (Icw):for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 40 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu):1000 A
Release Type:EL
Standards:IEC
Sub-type:T7
Suitable For:T7M
Suitable for Product Class:Moulded Case Circuit Breakers
Terminal Connection Type:Fixed Circuit-Breakers
Front
Version:F
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:1SDC210015D0201
Declaration of Conformity - CE:1SDL000165R0007
Environmental Information:1SDC210015D0201
GL Certificate:1SDL000163R0055
Instructions and Manuals:1SDC210015D0201
RoHS Information:1SDL000201R0001
Classifications
ETIM 4:EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 5:EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 6:EC000228 - Power circuit-breaker for trafo/generator/installation prot.
Additional Information
Collects Signal Values from the Flame Detector
The FAU810 analyzes the signals generated from the Flame Detector.
Calculates Signal Quality
The FAU810 measures the quality of the signal to provide an indication of changes in the burner flame.
Quality values act as a barometer, forecasting when a burner flame-out is likely to occur. This can help you to anticipate changes and problems.
Continuously Detect Faults
The instrument automatically monitors the electronic components of the Flame Detector and FAU810 unit to detect
system problems or faults.
Signals Unsafe Conditions
A no-flame condition occurs when the FAU810 logic determines that an unsafe condition exists.
