Products Detail:
|

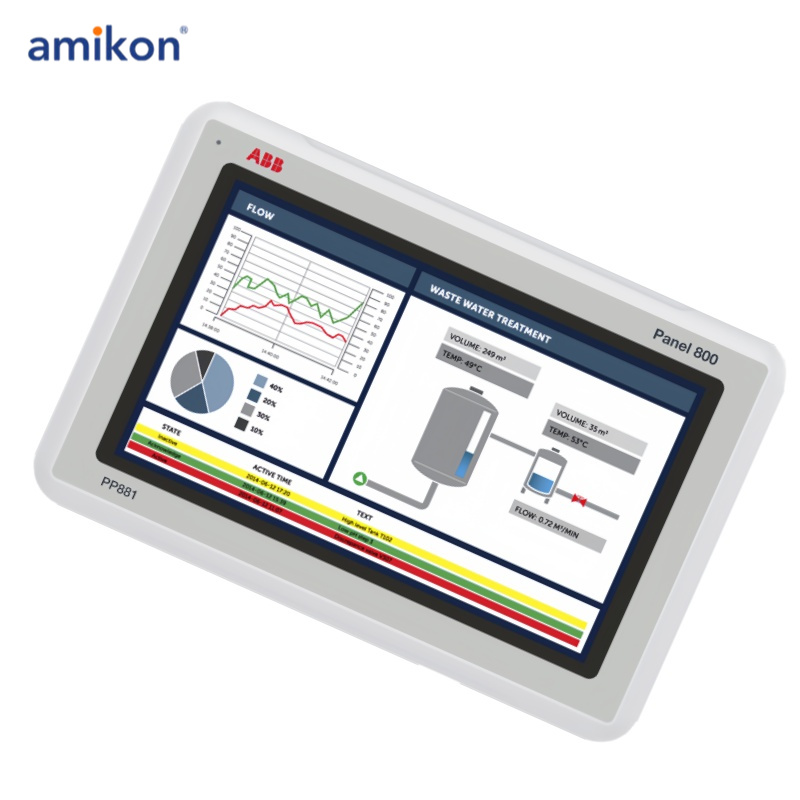

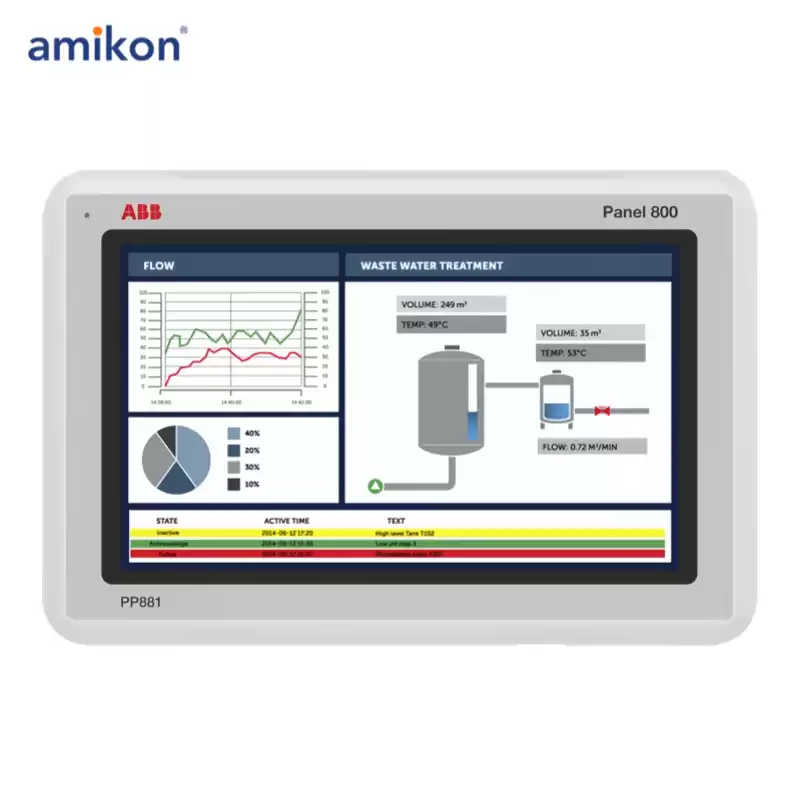

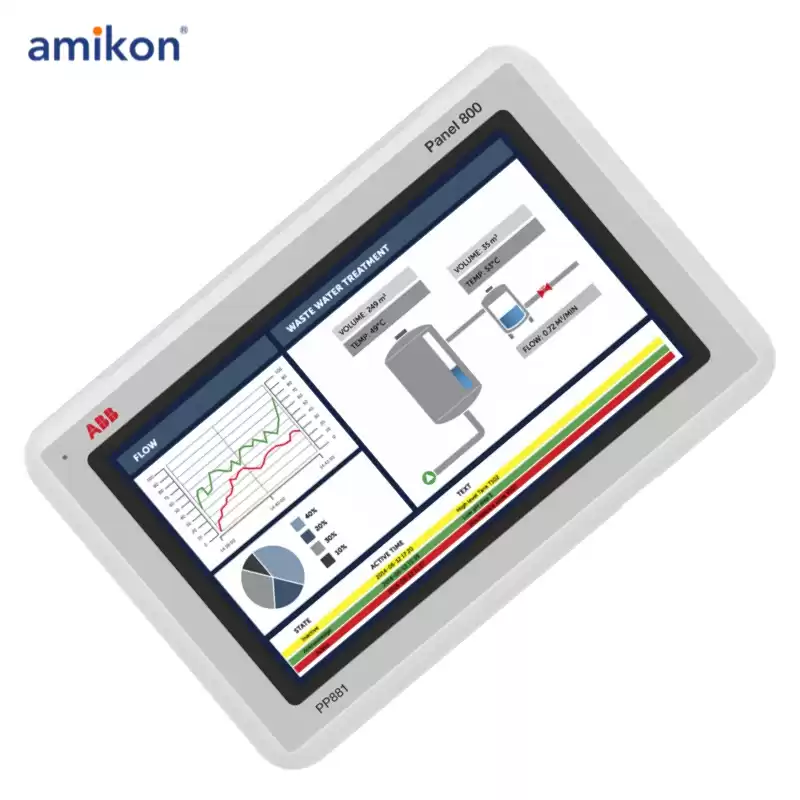

ABB Touch screen panels PP881 3BSE092978R1
|
|
Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The standard range of Panel 800 comprises of PP875, PP881, PP883, PP886 and PP895 which are easy-to-use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All standard panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screens and high-resolution displays for increased efficiency and excellent operator interaction.
Features and benefits：
Easy to use
A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with a familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering.
State-of-the-art graphics
Vector-based, high-resolution graphics in TFL/LED display, with the icon-based interface, navigation, and control.
Robust and reliable
Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures range between -10° C to + 60° C with maximum 85% humidity.
Truly open platform
Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more.
Try your application before you use it
Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it.
|
General info
|
Article number
|
3BSE092978R1
|
|
Category
|
Standard
|
|
Display type
|
Touch
|
|
Display size
|
10.1"
|
|
Brightness
|
500 cd/m²
|
|
Display resolution, ratio
|
1024x600 pixels
|
|
Processor
|
ARM9 (1 GHz)
|
|
Main memory
|
1 GB
|
|
External storage media
|
2 GB SSD, 1.5 GB free for application storage
|
|
Dimension WxHxD (mm)
|
292 x 194 x 52 mm
|
|
Power supply
|
+ 24 V DC (18 to 32 VDC)
|
|
Operating temperature
|
-10 °C to +60 °C
|
Detailed data
|
Dimming
|
Yes
|
|
Interaction type
|
Resistive touch
|
|
Realtime clock
|
Yes
|
|
Ethernet (shielded RJ 45)
|
2 x 1x10/100 Base-T
|
|
USB
|
2 x USB 2.0 500 mA
|
|
Serial port
|
1 x RS232, 1 x RS422/485, 1 x RS485 (only if COM 2 is RS485)
|
