BC810 and TP857 - CEX-Bus Interconnection Unit

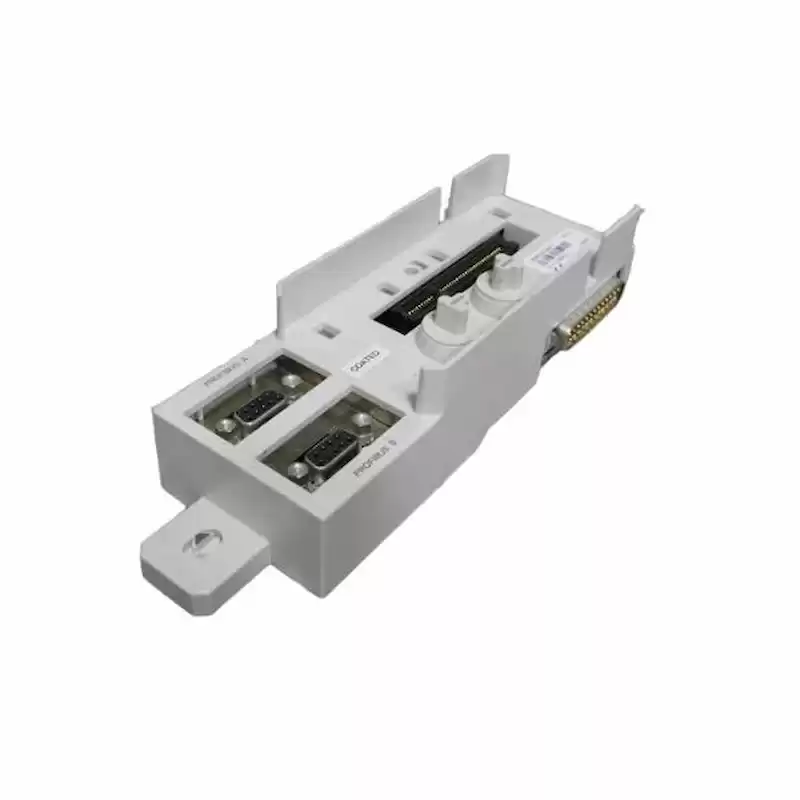

The BC810 unit consists of two basic parts: baseplate (TP857) and power supply/logic board.

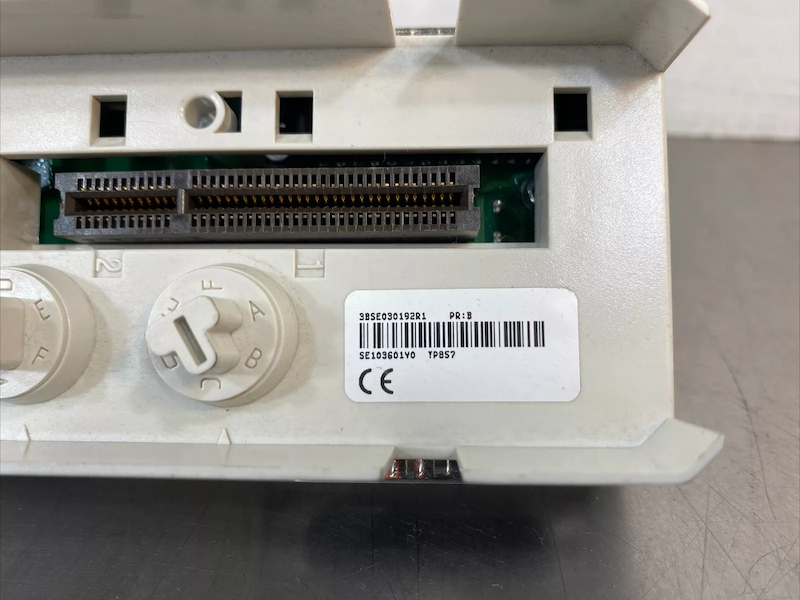

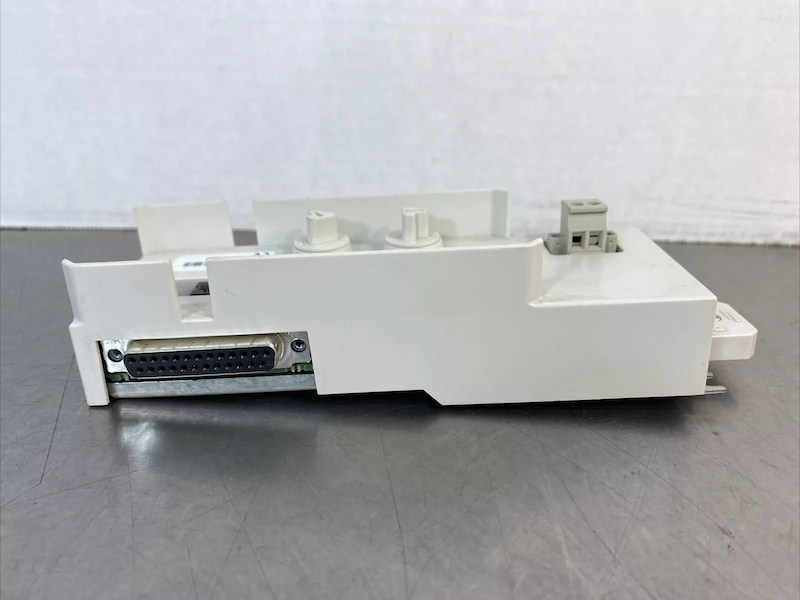

The baseplate is where the connectors to CEX-Bus and the external power reside. It is grounded to the DIN-rail through metal parts of the housing. The board also carries the external power voting diode and fuse.
The power supply and logic board contains the +3.3 V converter, logic, drivers for CEX-Bus interconnection and the connector for interconnection cable.
In a fully redundant system with two interlinked BC810 and primary/backup CPU pair, the BC810 support online replacement of the CPU baseplate without disturbing the CEX traffic.
If the BC810 has to be replaced, all traffic to the connected CEX segment are stopped.
Key Features
• Supports redundant communication interface units.
• Supports on-line replacement of the CPU.
• External power supply.
• Supports hot swap.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
TP857 |
| Ordering Information |
3BSE030192R1 |
| Product Catalog |
AC 800M |
| Description |
Baseplate for BC810 |
| Voltage |
24 Vdc |
| Current |
0.5 A |
| Dimensions |
20.3 cm x 7.6 cm x 5.1 cm |
| Weight |
0.27 kg |
