Product Description:
Standard I/O module with high functionality: 8 digital input channels 24 V DC with configurable input filter time,
8 configurable In/Output channels, DC as DI: 24 V DC, DC as DO: 24 V DC/0.5 A, input filter configurable from
0.1, 1, 8... 32 ms, first two inputs are also usable as high-speed counter (up to 50 kHz) together with AC500 CPU,
CS31 or CI5xx communication interface. 4 independent analog input channels configurable for voltage (0...10 V, ±10 V),
current (0/4... 20 mA), 12 bit + sign, 1-2 wire connection, 24 V DC process supply voltage. Galvanic isolation per module.
Usable with DC505-FBP and all CI5xx modules.

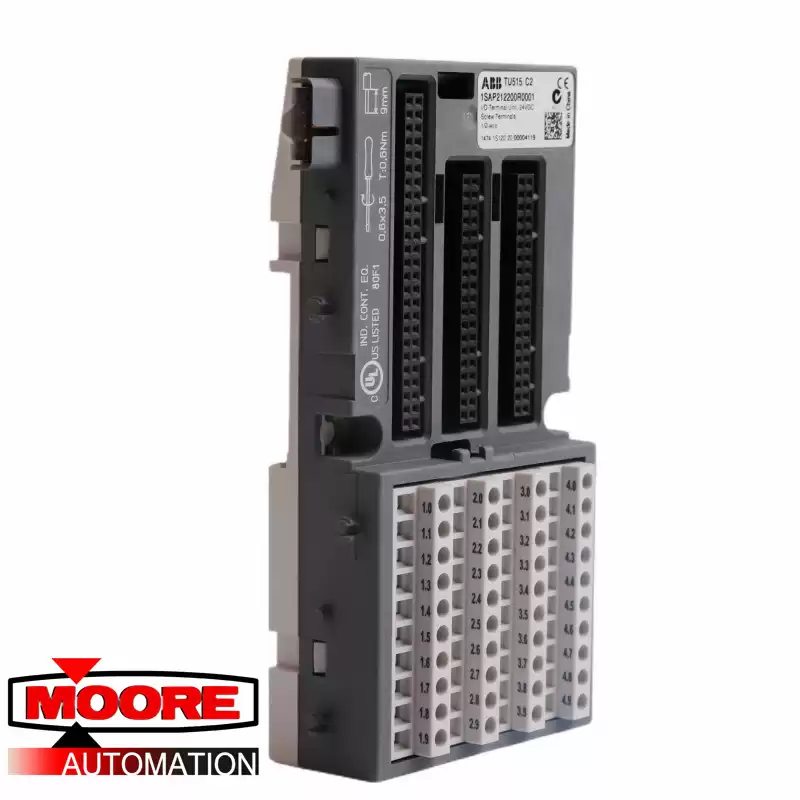

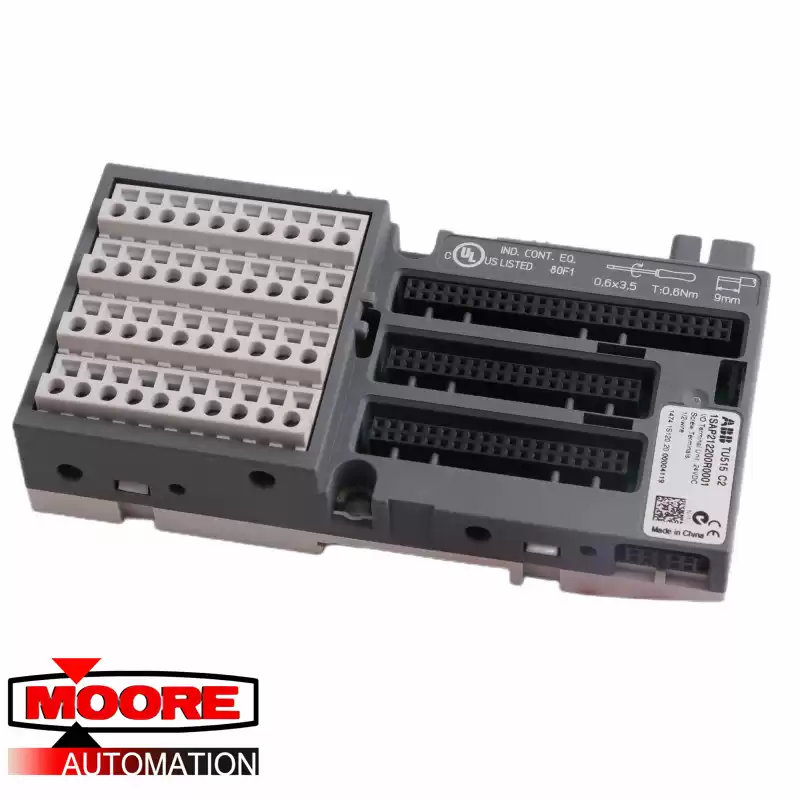

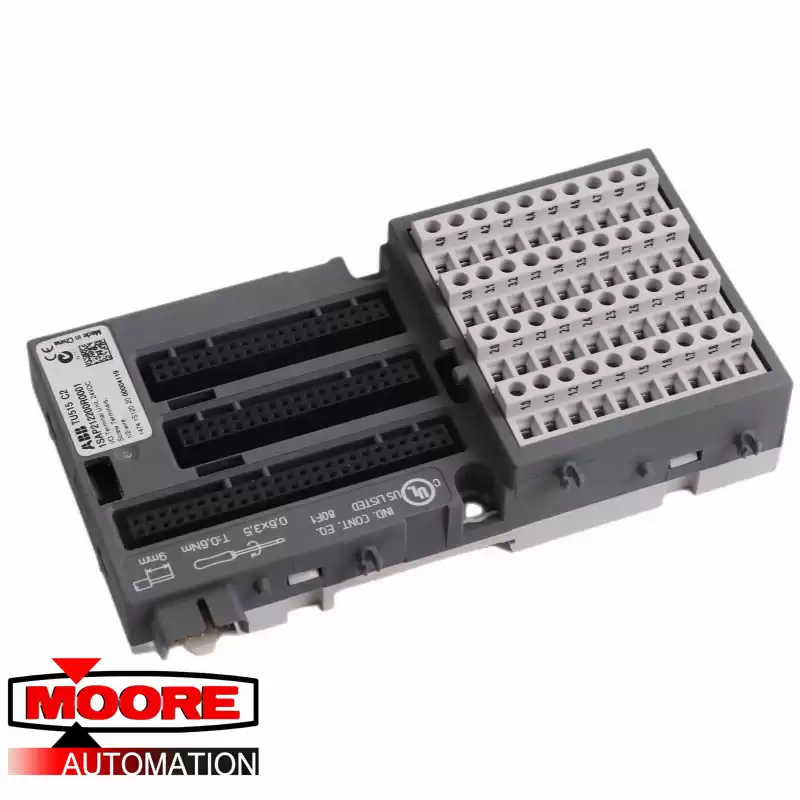

For digital and analog expansion modules and interface modules. Please note: for modules with relay outputs, terminal
units for 230 V AC (TU531/TU532) are required! For the module-terminal unit assignments, please consult the table.
