Product Description:
The TU810 is a 16 channel compact module termination unit. The TU810 has three
rows of terminals for field signals and process power connections.The TU811 is a 8 channel compact module termination unit. The TU811 has three
rows of terminals for field signals and process power connection.

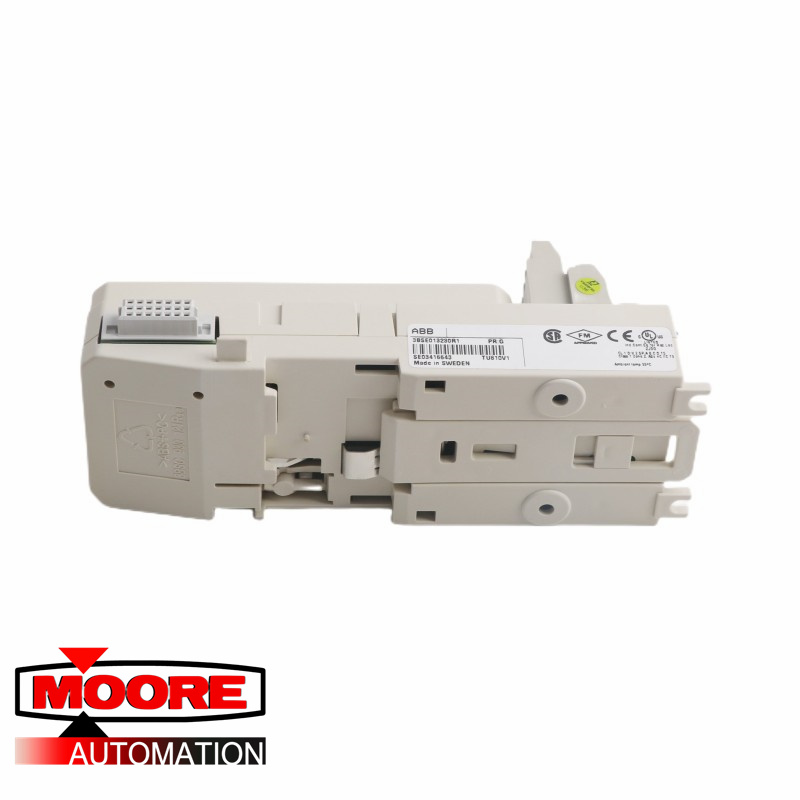

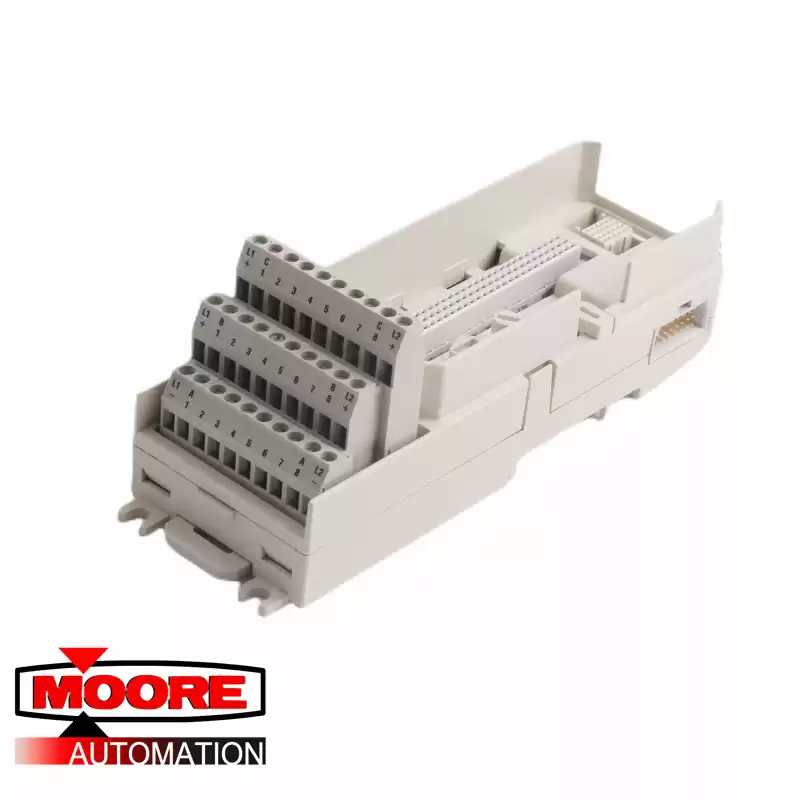

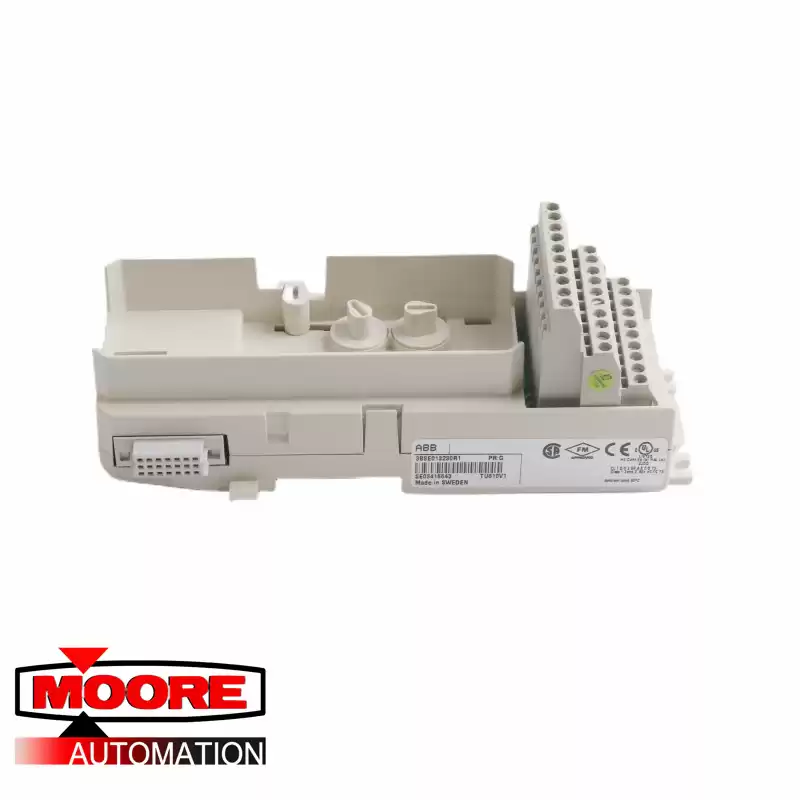

The TU810/TU810V1 is a 16 channel 50 V
compact module termination unit (MTU)
for the S800 I/O. The MTU is a passive unit
used for connection of the field wiring to
the I/O modules. It also contains a part of
the ModuleBus.
The TU810/TU810V1 MTU can have up to 16 I/O channels and two process
voltage connections. The maximum rated voltage is 50 V and maximum rated current is 2A per channel. Two mechanical keys are used to configure the MTU for
different types of I/O modules.
The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also
generates the correct address to the I/O module by shifting the outgoing position
signals to the next MTU.
