ABB TU810V1 3BSE013230R1 Compact MTU

Medium Description: TU810V1 Compact Module Termination Unit, MTU, 50V. Compact Module Termination Unit 2x8 signal terminals.please contact us and we will get back to you within 24 hours.US$80.00

Facebook Twitter Pinterest LinkedIn 分享

Description

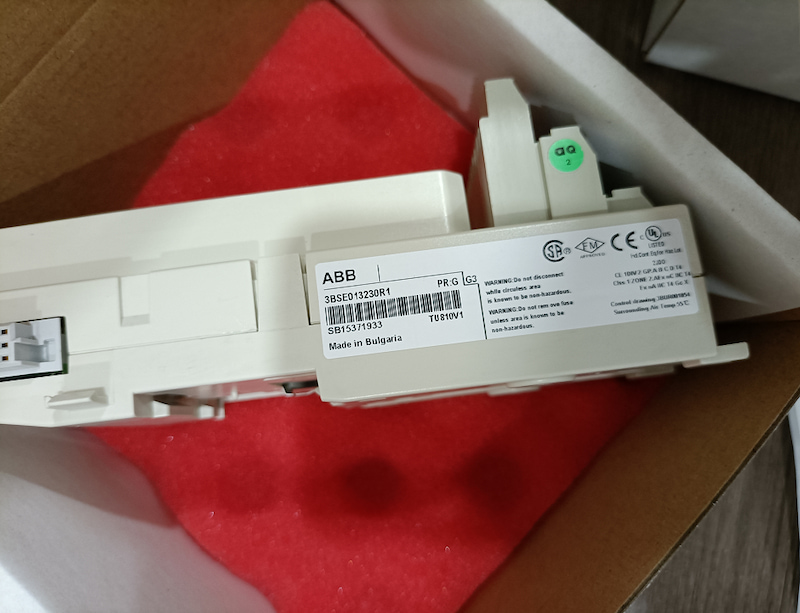

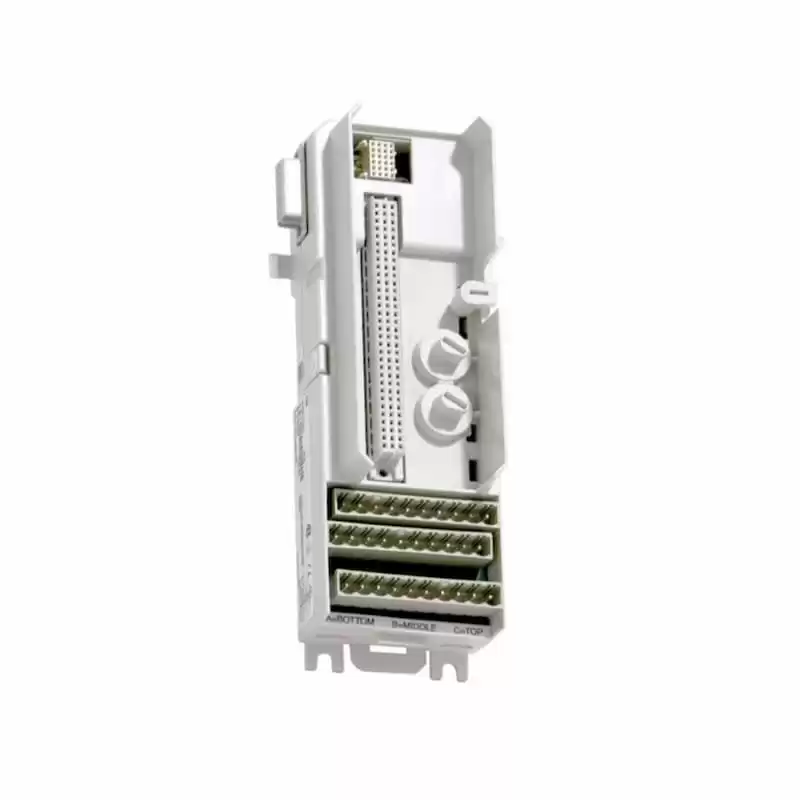

ABB TU810V1 3BSE013230R1 Compact Module Termination Unit

The TU810/TU810V1 is a 16 channel 50 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.

The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.

Features and benefits :

· Compact installation of I/O modules using one-wire connections.

· Up to 16 channels of field signals and process power connections.

· Connections to ModuleBus and I/O modules.

· Mechanical keying prevents insertion of the wrong I/O module.

· Latching device to DIN rail for grounding.

· DIN rail mounting.

Technical Specifications:

Article number	3BSE013230R1
Type	Compact
Connection	Terminal block
Channels	16
Voltage	50 V
Mounting	Both directions
Mounting detail	Horizontal 55 ºC (131 °F) Vertical 40 ºC (104°F)
Use with I/O	AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820, DP840
Process connections	2 x 2 Process power, 5 x 2 Process power (0 V)
Single/redundant	I/O Single
Mechanics	S800
