Product Description:

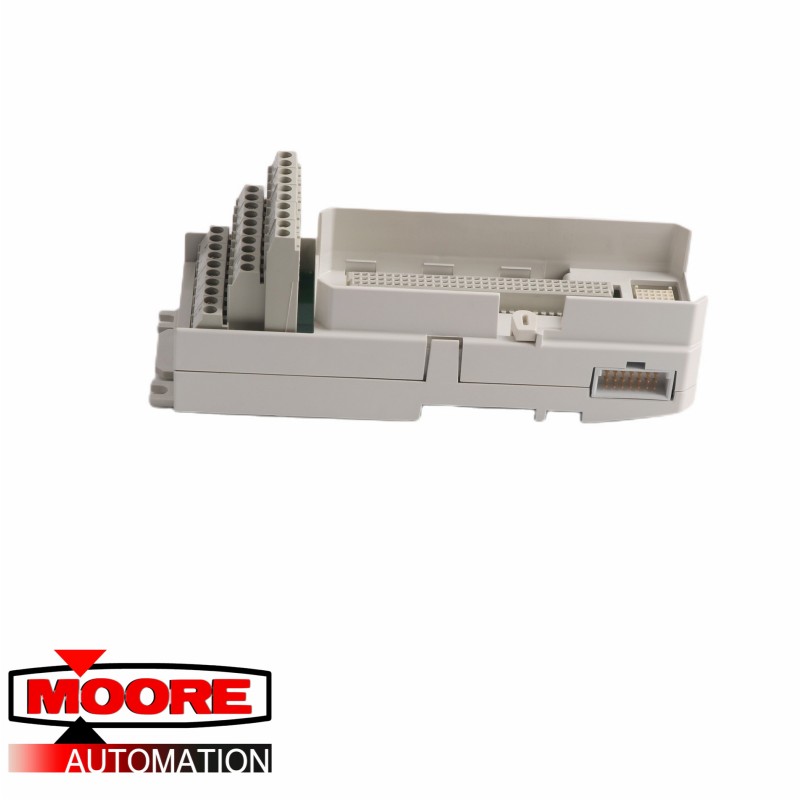

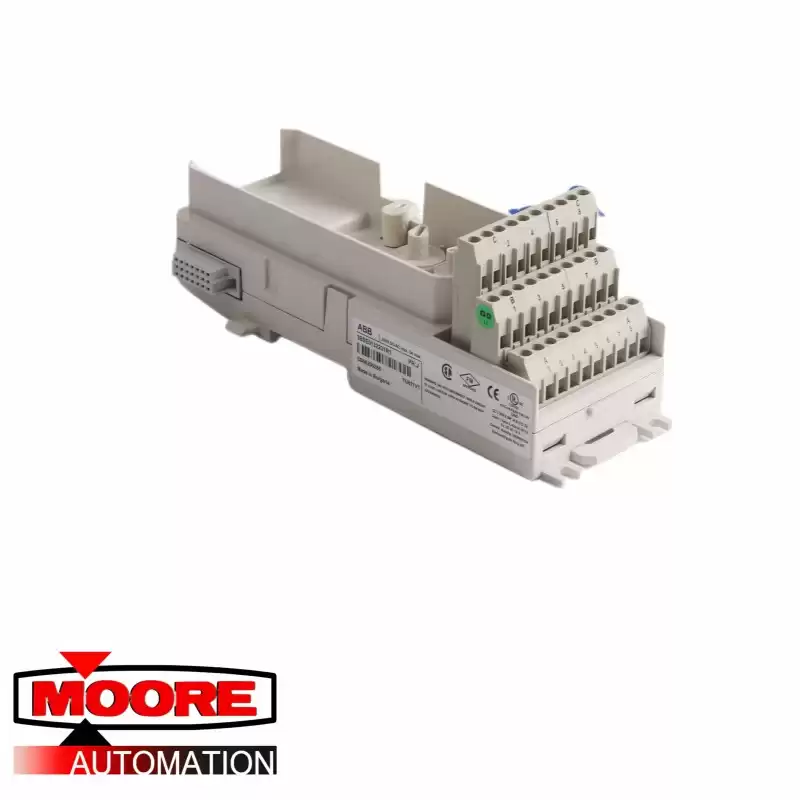

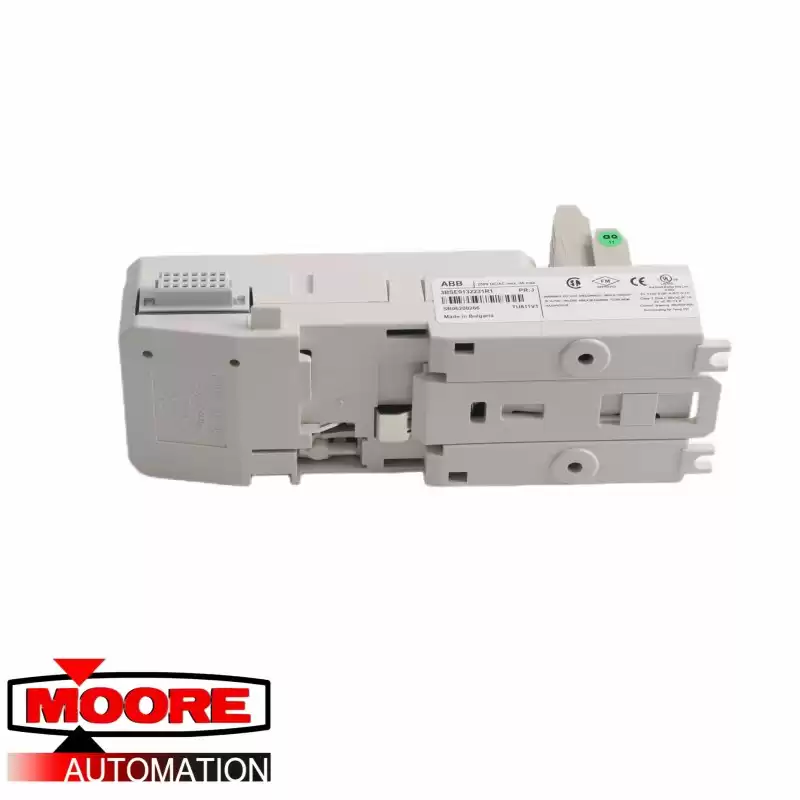

The TU811 is a 8 channel compact module termination unit. The TU811 has three
rows of terminals for field signals and process power connection.Cannot be replaced or repaired with power
applied.
Disconnecting an MTU breaks the
ModuleBus communications bus and
removes power to the MTUs that follow.
MTUs mounted in the middle (between the
ModuleBus master, cluster modem and the
number 12 MTU) need to have the
preceding or following MTUs moved in
order to disconnect the ModuleBus
connector.
The TU811/TU811V1 is a 8 channel 250
V compact module termination unit
(MTU) for the S800 I/O. The MTU is a
passive unit used for connection of the
field wiring to the I/O modules. It also
contains a part of the ModuleBus.
The TU811/TU811V1 MTU can have up
to 8 I/O channels. The maximum rated
voltage is 250 V and maximum rated
current is 3 A per channel. Two
mechanical keys are used to configure the
MTU for different types of I/O modules.
