Product Description:

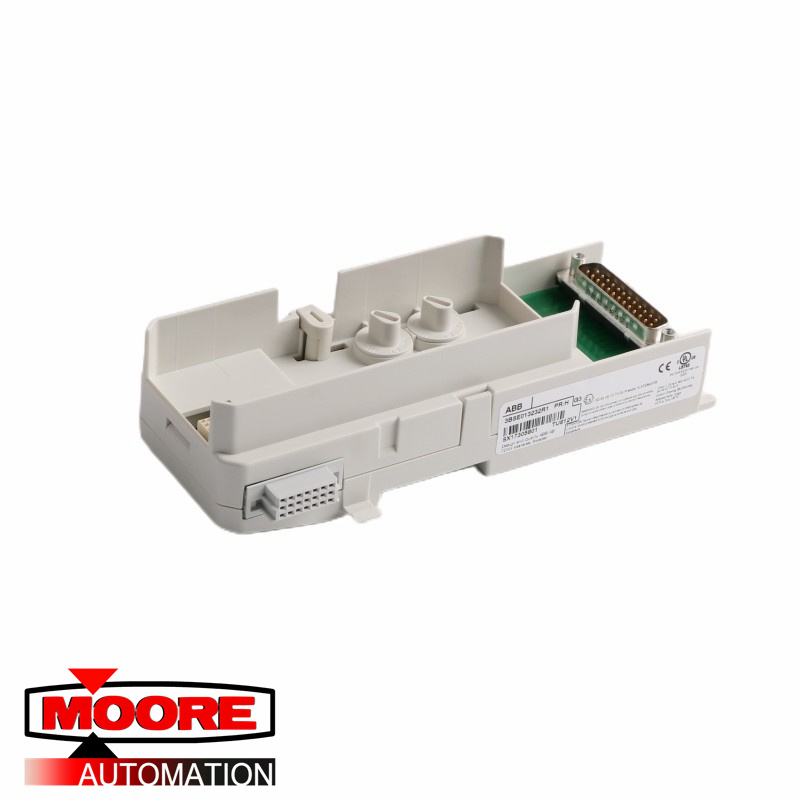

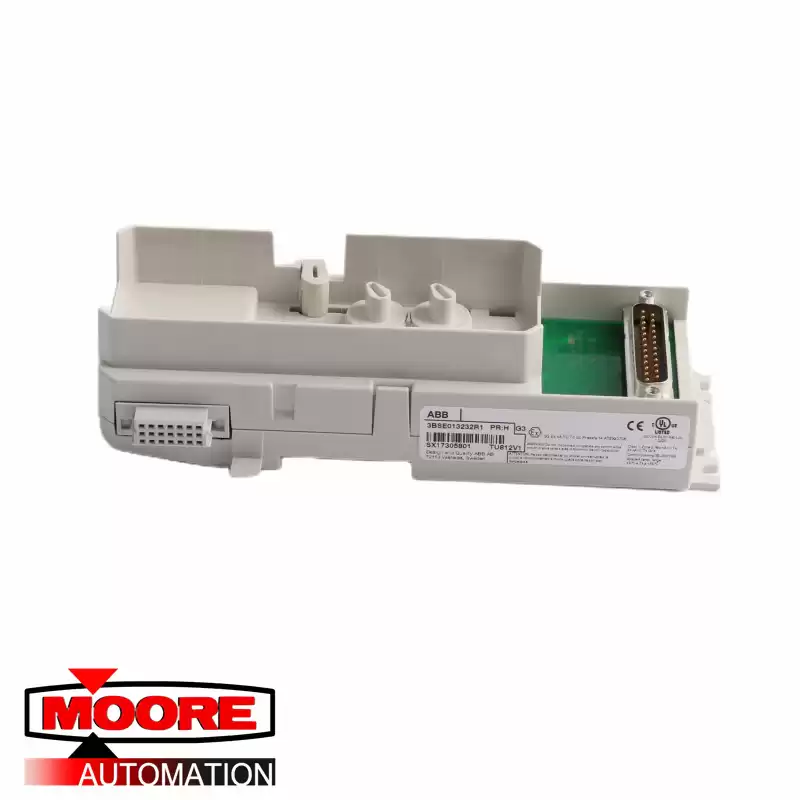

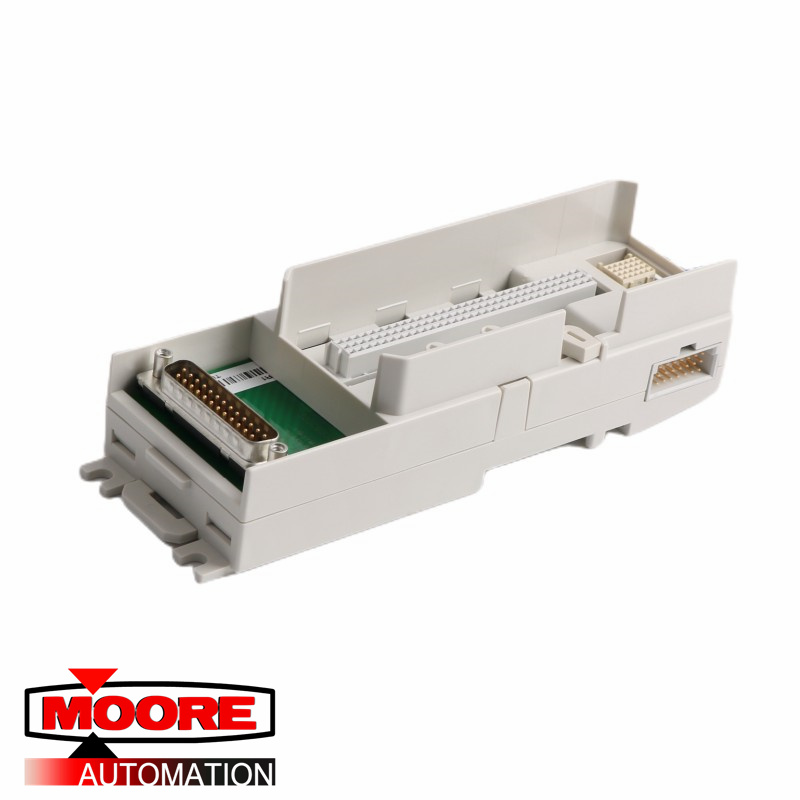

The TU812 is a 16 channel compact module termination unit. The TU812 has a 25
pin D-Sub connector for field signals and process power connections.The TU812/TU812V1 is a 50 V compact
module termination unit (MTU) for the S800
I/O system with 16 signal connections. The
MTU is a passive unit used for connection of
the field wiring. It also contains a part of the
ModuleBus.
The TU812/TU812V1 MTU can have up to 16 I/O signals. The maximum rated
voltage is 50 V and maximum rated current is 2A per channel. The MTU distributes
the ModuleBus to the I/O module and to the next MTU. It also generates the correct
address to the I/O module by shifting the outgoing position signals to the next MTU.
Two mechanical keys are used to configure the MTU for different types of I/O
modules. This is only a mechanical configuration and it does not affect the
functionality of the MTU or the I/O module. Each key has six positions, which gives
a total number of 36 different configurations. The configuration can be changed
with a screwdriver.
