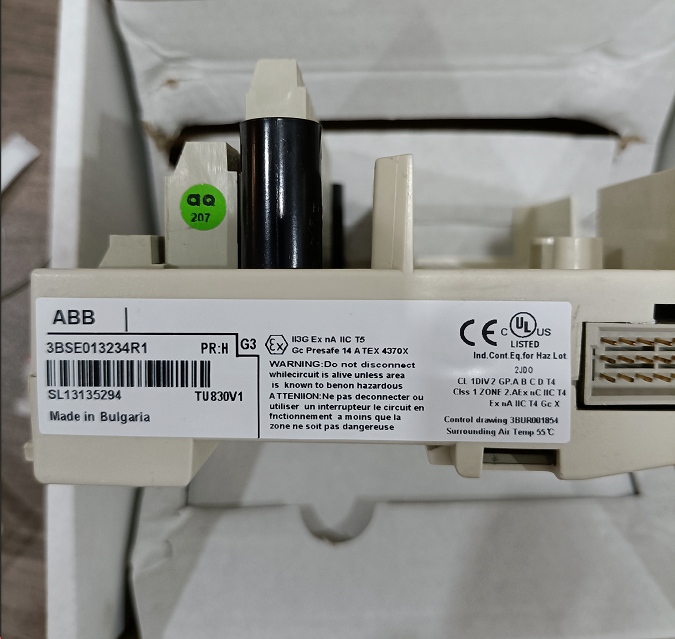

ABB TU830V1 3BSE013234R1 Extended Module Termination Unit

Item no: TU830V1 3BSE013234R1 brand: ABB Delivery time: In Stock Payment: T/T shipping port: xiamen price:$80

Description

ABB Ability™ System 800xA® hardware selector

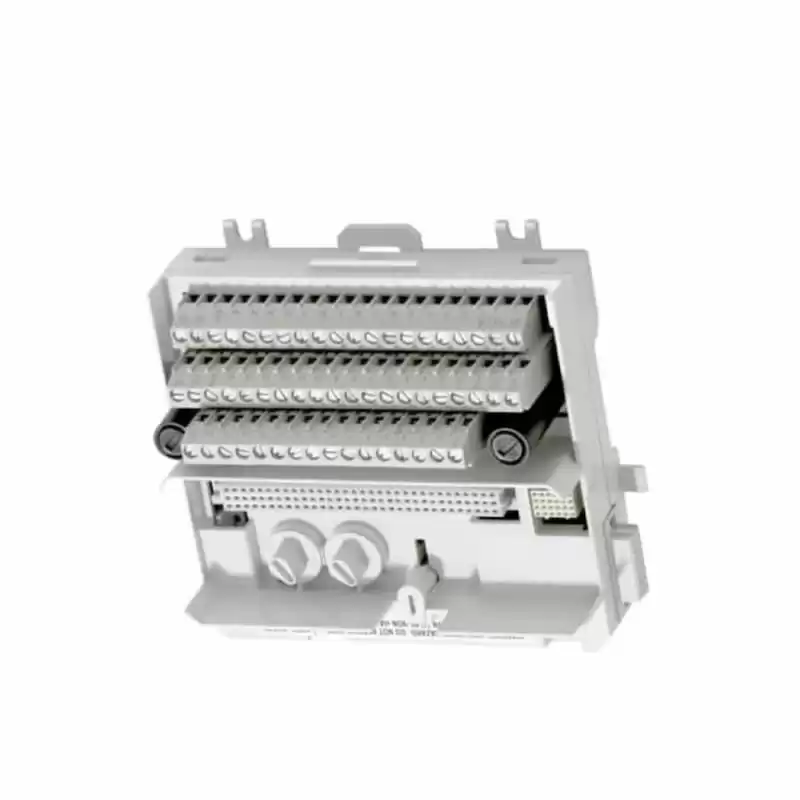

The TU830V1 MTU can have up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.

The process voltage can be connected to two individually isolated groups. Each group has a 6.3 A fuse. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the I/O module end to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

Features and benefits

· Complete installation of I/O modules using 3-wire connections, fuses and field power distribution.

· Up to 16 channels of field signals and process power connections.

· Connections to ModuleBus and I/O modules.

· Mechanical keying prevents insertion of the wrong I/O module.

· Latching device to DIN rail for grounding.

· DIN rail mounting.

Technical Specifications

Article number	3BSE013234R1
Type	Extended
Connection	Terminal block
Number of channels	16
Voltage	50 V
Mounting	Both directions
Mounting detail	55 ºC (131 °F)
Use with I/O	AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820 and DP840
Process connections	56
Single/redundant	I/O Single
