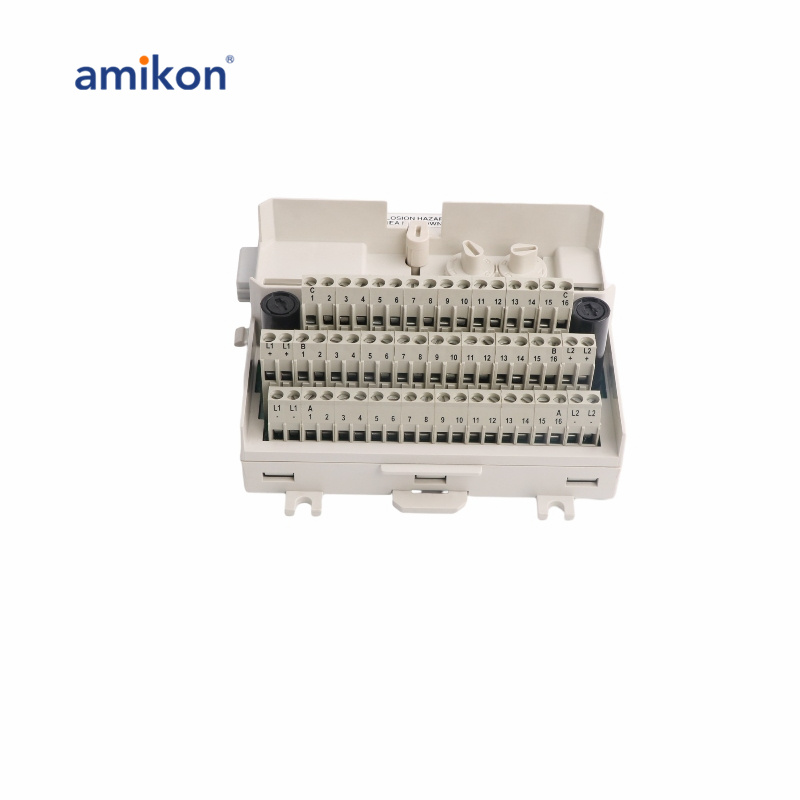

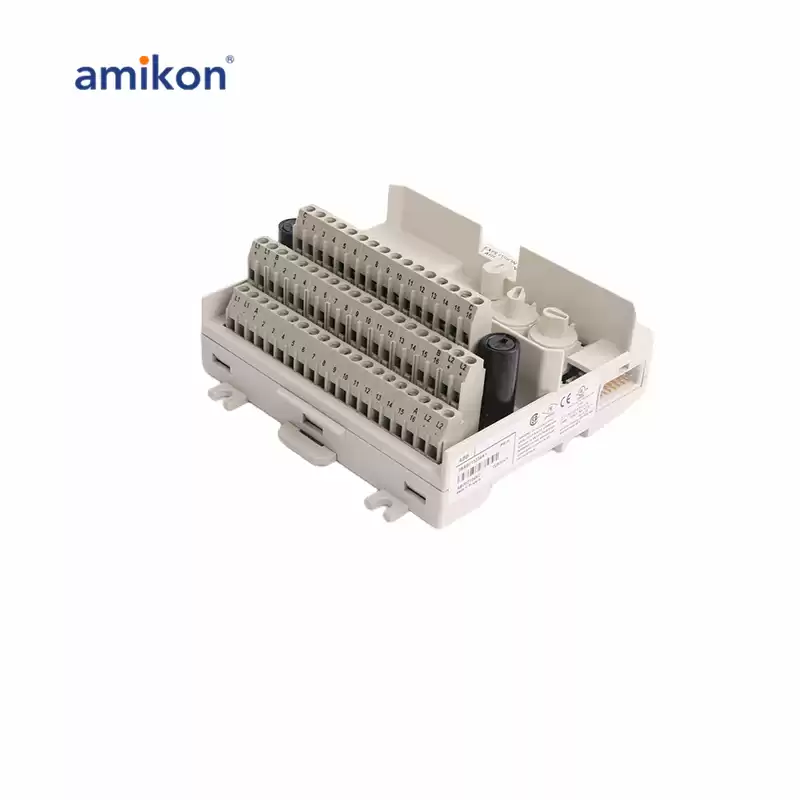

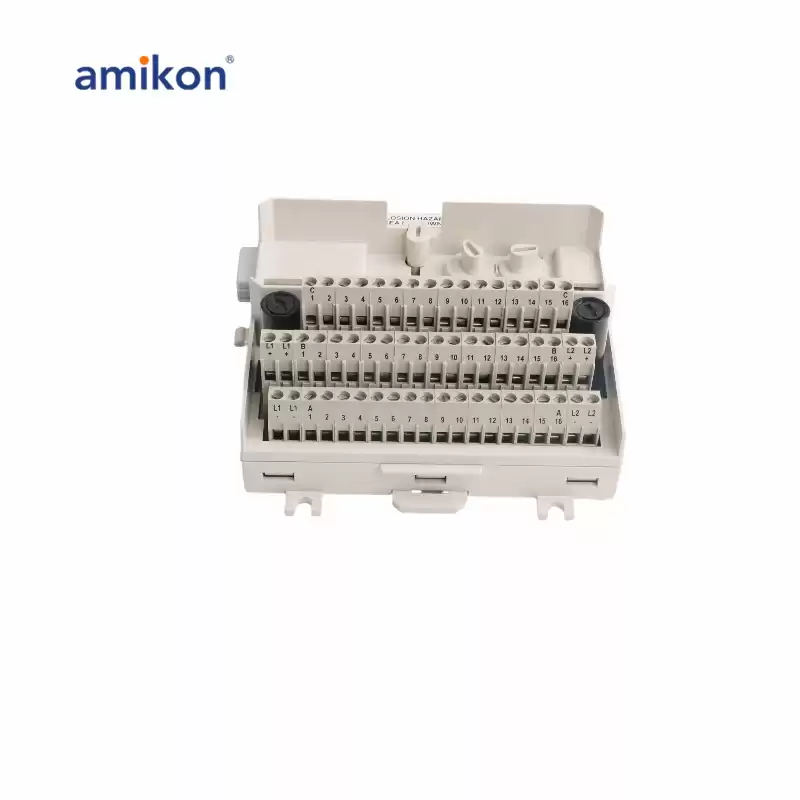

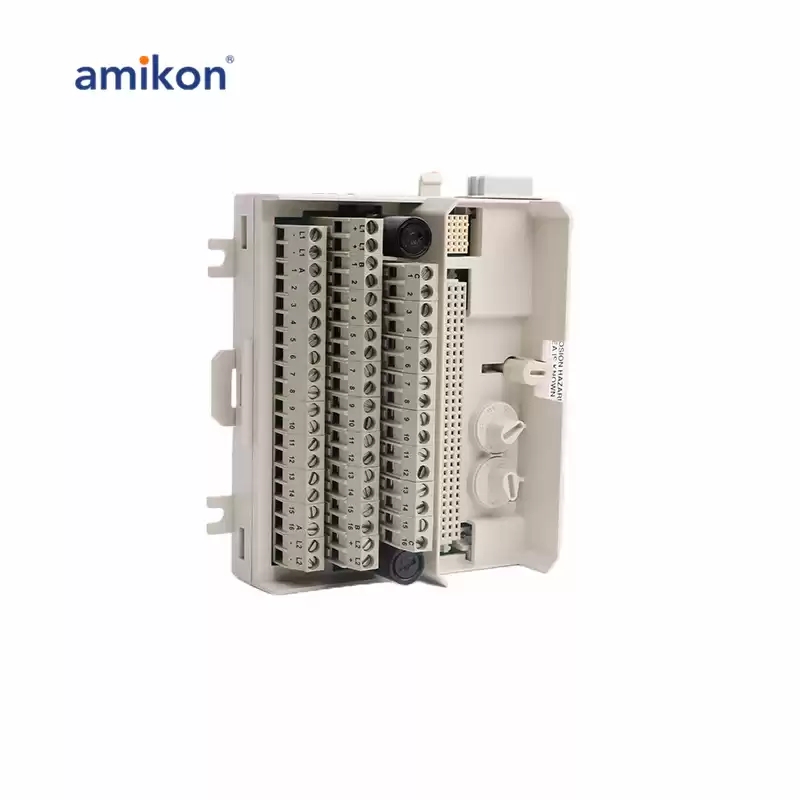

ABB TU830V1 3BSE013234R1 Termination Unit

Brand new and original sealed//Same Day Shipment

The TU830V1 3BSE013234R1 is Extended Module Termination Unit. S800 I/O is an open comprehensive, distributed, process I/O system that communicates with controllers by direct connection or over industry-standard field buses.
TU830V1 3BSE013234R1 Description:	Thanks to its open connectivity it fits a wide range of process controllers from ABB and others.By permitting installation in the field, close to sensors and actuators, S800 I/O reduces the installation cost by reducing the cost of cabling.
	The TU830V1 MTU can have up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.
	The process voltage can be connected to two individually isolated groups. Each group has a 6.3 A fuse. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the I/O module end to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
Award-winning service	More than 25 in stock	Full 12-month warranty	We deliver worldwide
