| Manufacture |
ABB |
| Model |
TU837V1 |
| Product ID |
3BSE013238R1 |
| Catalog |
Advant 800xA |
| Description |

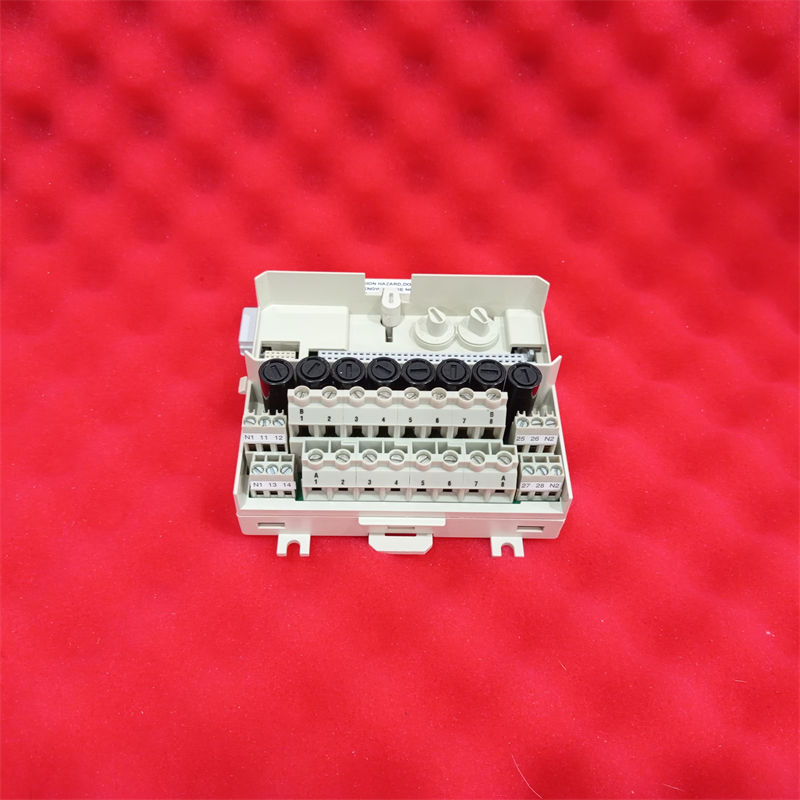

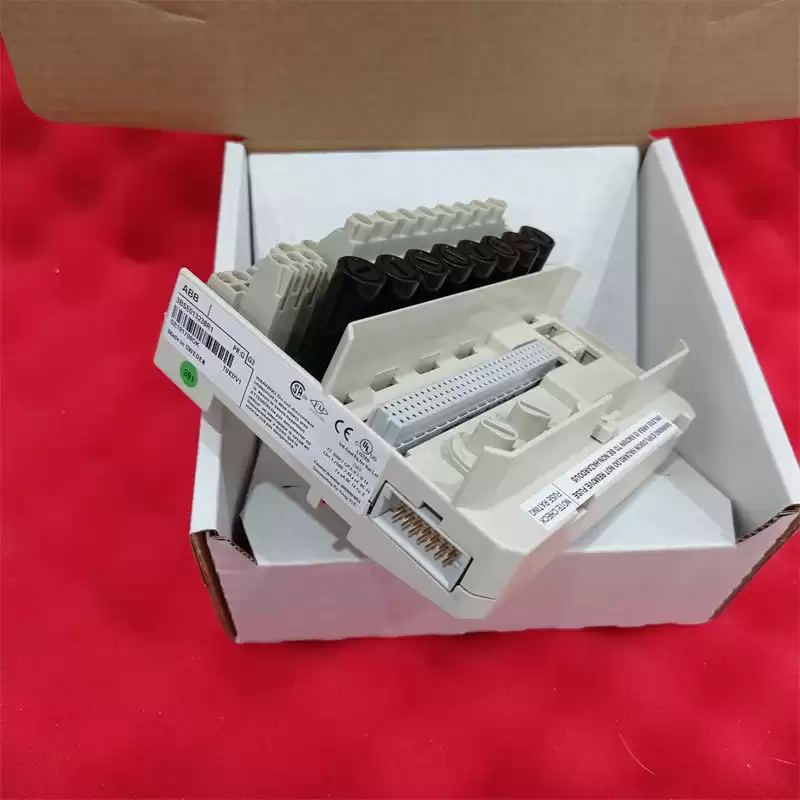

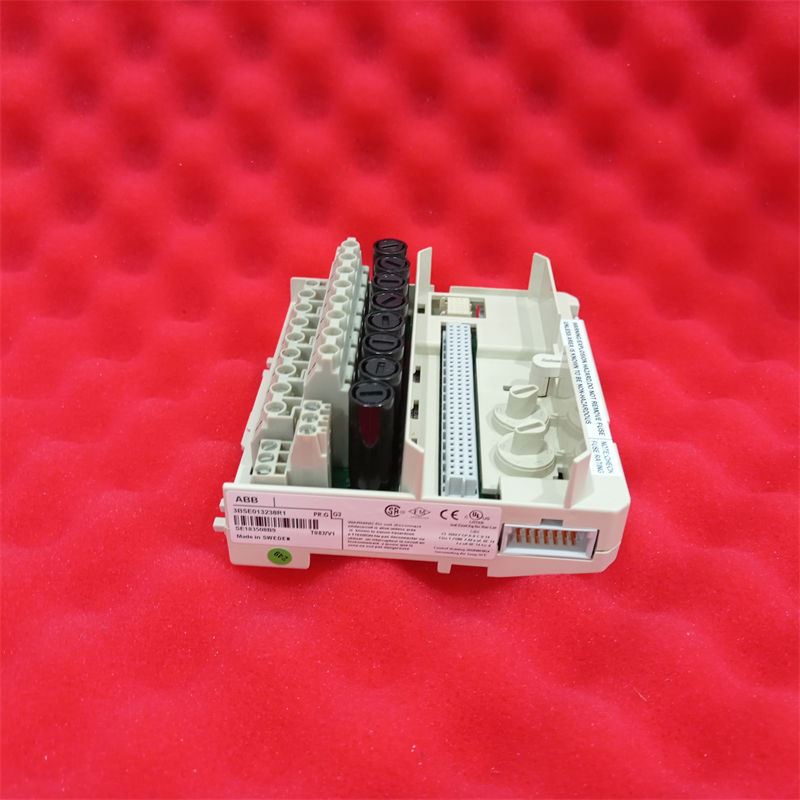

TU837V1 Compact MTU |
| Country of Origin |
Bulgaria(BG) |
| Dimension |
126mm*64mm*110mm |
| Weight |
0.26kg |
The TU837V1 MTU can have up to 8 I/O channels. The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be released with a screwdriver. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.
Features and benefits:
1. Up to 8 individually isolated channels of field signals and process power connections.
2. Each channel has two terminals and one is fused.
3. Allows a mix of isolated and grouped channels.
4. Process voltage return can be connected to two individually isolated groups.
5. Connections to ModuleBus and I/O modules.
6. Mechanical keying prevents insertion of the wrong I/O module.
7. Latching device to DIN rail for grounding.
8. DIN rail mounting.
-
