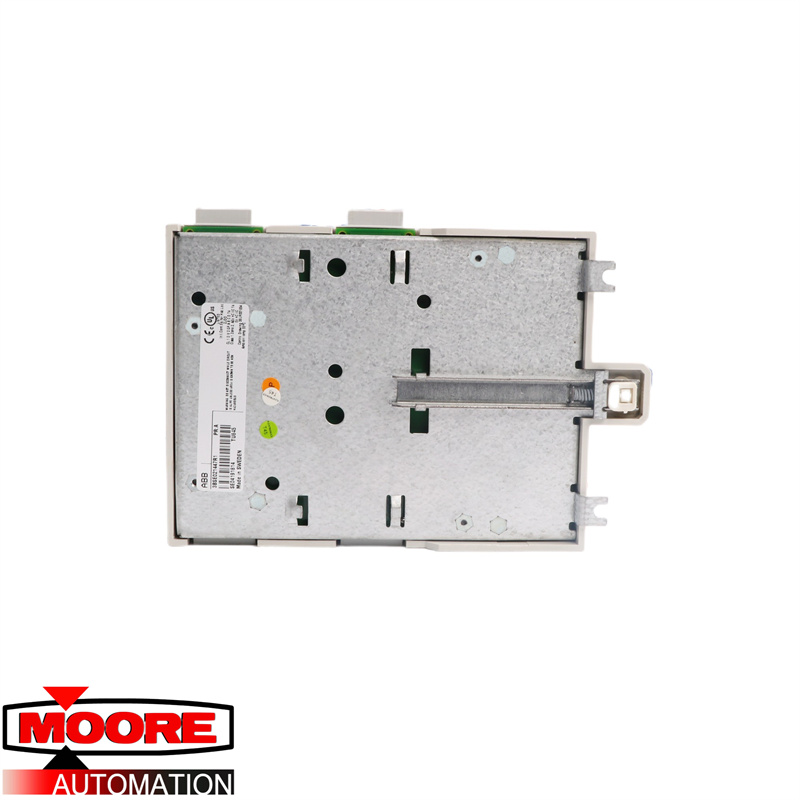

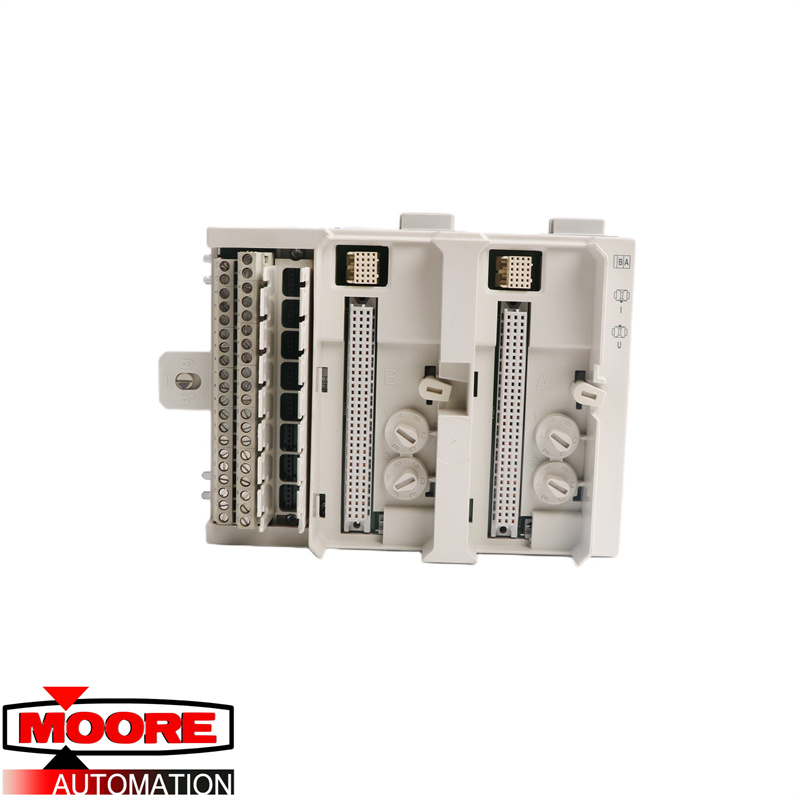

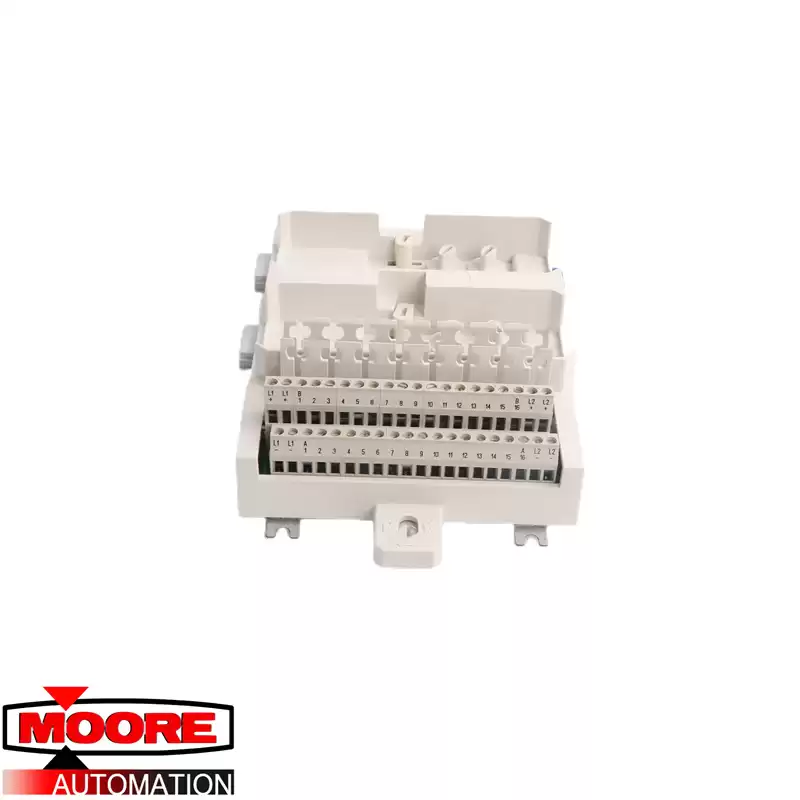

Product Description:
The TU845 MTU can have up to 8 I/O channels and 2+2 process
voltage connections. Each channel has two I/O connections and one
ZP connection. Input signals are connected via individual shunt
sticks, TY801. The shunt stick is used to choose between voltage and
currentinput. The maximumrated voltage is 50 V and maximumrated
currentis 2 A per channel.
The MTU distributes the twoModuleBuses, one to each I/O module
and to the nextMTU. It also generates the correct address to the I/O
modules by shifting the outgoing position signals to the nextMTU. It
has a mechanical latch thatlocks theMTU to the DIN rail.
Four mechanical keys,two for each I/O module, are used to configure
theMTU for differenttypes of I/O modules. This is only a mechanical
configuration and it does not affectthe functionality of theMTU or
the I/O module. Each key has six positions,which gives a total
number of 36 different configurations.
